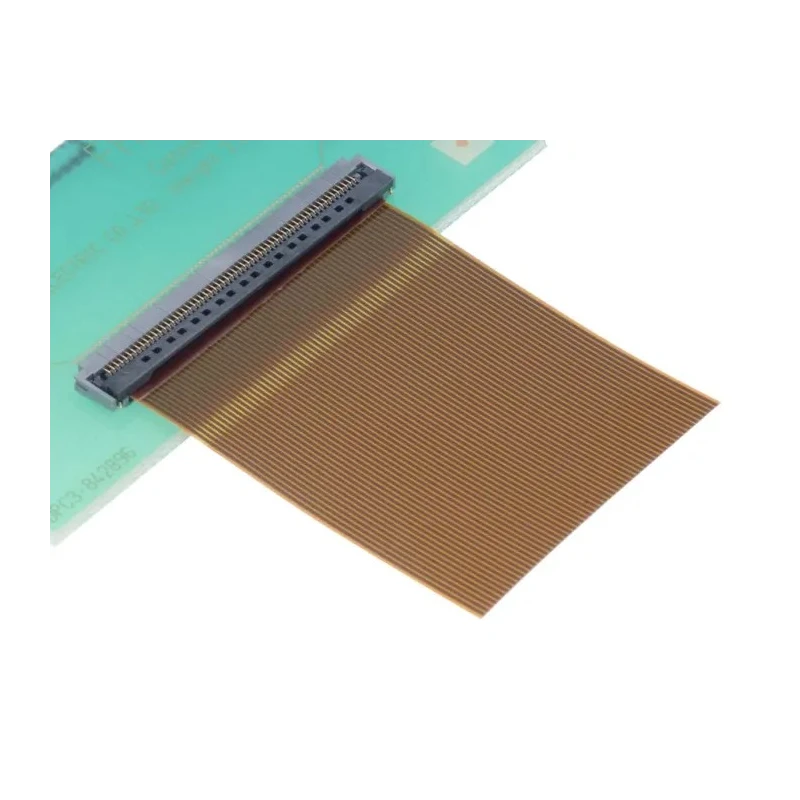

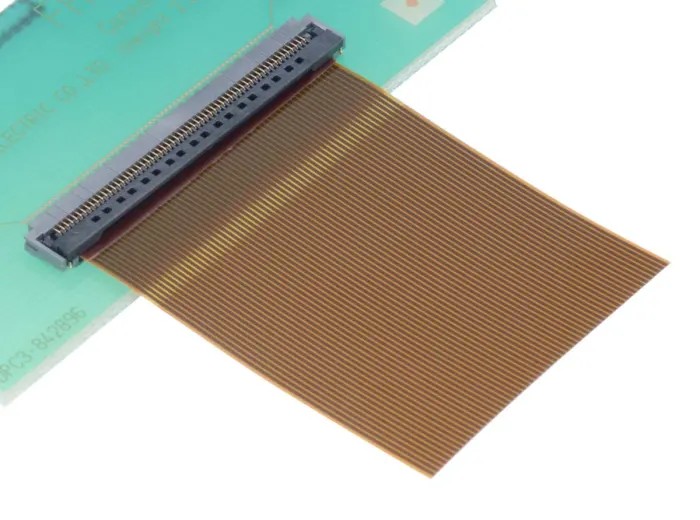

Hirose 0.5 mm Pitch 32 Way Right Angle Female FPC Connector, Bottom Contact FH52-32S-0.5SH(99)

Hirose FH52-32S-0.5SH(99) is a 32 way right angle female FPC connector with a 0.5 mm pitch and bottom contact designed for secure and space-efficient PCB connections in demanding environments.

This connector features a low profile mated height of 2 mm which is ideal for applications where compactness is critical. The easy-to-use rotating flip lock actuator provides tactile confirmation upon firm locking, ensuring reliable FPC insertion without damage.

Metal fittings integrated inside the housing increase actuator retention and stability, while the two-point contact design boosts electrical reliability, minimizing connection failures. Side catches within the connector housing guide and securely hold tabbed FPCs until the actuator is engaged, providing consistent and robust connections.

Constructed from high-quality phosphor bronze contacts with gold plating and liquid crystal polymer housing, it exhibits excellent durability and performance under thermal and mechanical stress. Rated for operational temperatures from -40°C to 105°C, and electrical ratings of 50V AC and 500 mA current, this connector is suitable for various electronic devices.

This connector supports automatic pick-and-place assembly processes, facilitating efficient manufacturing. Furthermore, its fully moulded design allows for PCB patterning and complies with halogen-free standards IEC 61249-2-21, meeting environmental and safety requirements.

Typical applications include audio and video recording equipment, car navigation and audio systems, notebook PCs, portable medical electronics, optical drives, industrial control units, satellite receivers, LCD and digital TVs, and printers.

Low profile mated height of 2.00 mm for compact designs. Rotating flip lock actuator for ease of FPC insertion and secure locking. Metal fittings for increased actuator retention and stability. Two-point contact structure ensures superior electrical reliability.

Side catches for precise guidance and retention of the tabbed FPC. Housing material is liquid crystal polymer for durability and thermal resistance. Contact material is phosphor bronze, plated with gold for longevity and conductivity.

Rated for 50V AC voltage and 500 mA current, with operating temperature from -40°C to 105°C. Fully moulded structure supports PCB patterning and automatic pick-and-place mounting. Halogen free compliant as defined by IEC 61249-2-21 standards.
