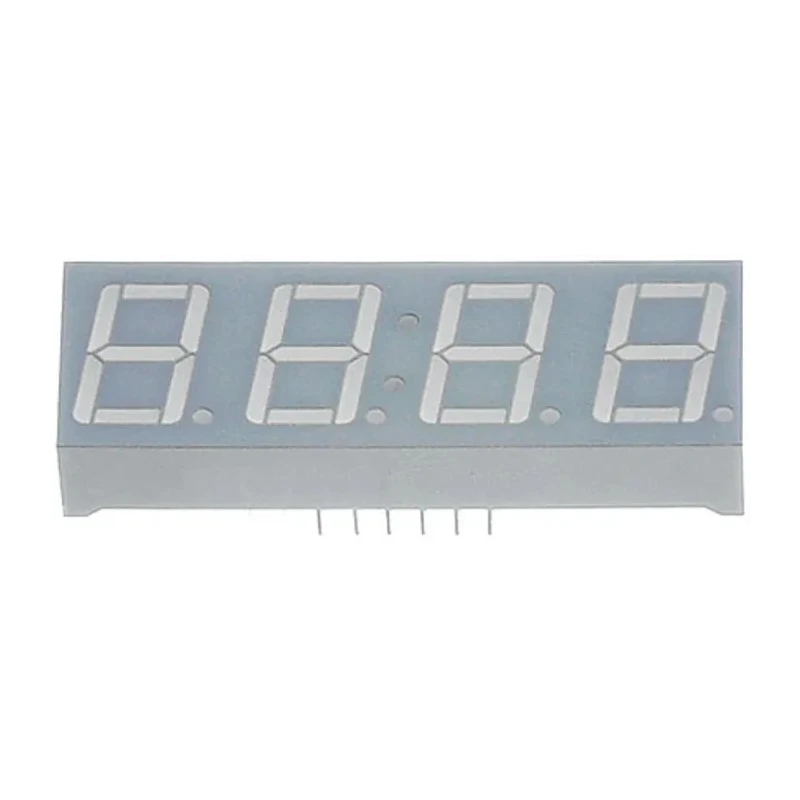

Kingbright 4 Digit 7 Segment LED Display, Red 72mcd Luminous Intensity, Right Side Decimal Orientation, 14.2 CC56-21SURKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | CC56-21SURKWA |
| Mount Type | Through Hole |
| Series | CC56 |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 50.3mm |
| External Depth | 19mm |
| External Height | 8.1mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 72mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 4 |
| Character Width | 8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display features a red LED colour with luminous intensity of 72mcd.
- It has a character height of 14.2 mm and character width of 8 mm for clear visibility.
- Constructed with a grey face and white segments for excellent contrast.
- Through-hole mount type ensures easy PCB installation.
- Rated for operation between -40°C to 85°C for versatile use environments.
- The common connection type is cathode with forward voltage of 2V and forward current of 30mA.
- The decimal orientation is on the right side, suitable for numerical data representation.
- Power dissipation is 75mW, ensuring low power consumption.
Product Description
Kingbright CC56-21SURKWA is a high-quality 4 digit 7 segment LED display featuring bright red LEDs with a luminous intensity of 72mcd, designed for precise and clear visual output in electronic equipment.
This LED display is constructed with a grey face and white segments, enhancing readability with excellent on/off contrast. Its character height of 14.2 mm and width of 8 mm make it suitable for display modules requiring high visibility.
Featuring a common cathode connection and through-hole mount type, it allows straightforward integration on printed circuit boards for various industrial, laboratory, and commercial electronic devices.
The product operates reliably within a temperature range of -40°C to 85°C and supports a forward voltage of 2V and forward current of 30mA, providing efficient low power consumption with a dissipation of 75mW.
The decimal point is oriented on the right side, making it ideal for accurate numerical and time displays, including applications where colons or decimal points are necessary, such as clocks or measurement devices.
Kingbright CC56-21SURKWA is RoHS compliant and mechanically robust, suitable for demanding environments and ensuring long product life and reliability. The display provides 4 characters, each with 7 segments, plus decimal points.
Its dimensions are 50.3 mm in width, 8.1 mm in height, and 19 mm in depth. Typical applications include electronic display modules in industrial automation, measurement instruments, and consumer electronics. The product is manufactured in China and meets industry standards for quality and performance.
Explore EnvMart for a wide selection of LED Displays and related electronic components to suit your project and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED display is 72mcd, providing clear visibility for various applications.
The character height of this model is 14.2 mm, which enhances readability in display modules.
This display operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
It features a through-hole mount type, allowing for straightforward integration on printed circuit boards.
The forward voltage is 2V, and the forward current is 30mA, ensuring efficient operation.
The dimensions are 50.3 mm in width, 8.1 mm in height, and 19 mm in depth.
The common connection type for this display is cathode, which is typical for many LED applications.
The power dissipation is rated at 75mW, contributing to low power consumption during operation.
The decimal orientation is on the right side, making it suitable for numerical data representation.
Yes, this model is RoHS compliant, meeting environmental standards for electronic components.
Typical applications include electronic display modules in industrial automation, measurement instruments, and consumer electronics.
This display supports 4 characters, each consisting of 7 segments plus decimal points.
