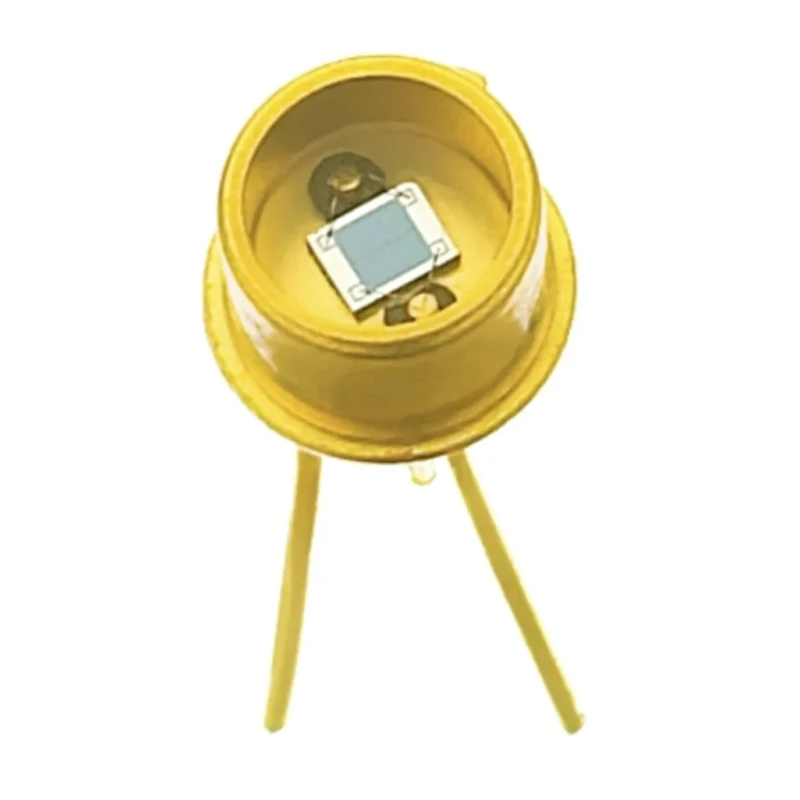

OSI Optoelectronics Infrared Photodiode, 65° Half Sensitivity Angle, Through Hole TO-18 Package PIN-040A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.33mm |
| Brand | OSI Optoelectronics |
| Height | 5.08mm |
| Length | 8mm |
| Model | PIN-040A |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | Photoconductive |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 0.2nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 970nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- This photodiode features a through hole TO-18 package for easy PCB mounting.
- Detects infrared spectrum with peak sensitivity at 970nm wavelength.
- Wide spectral response range from 350nm to 1100nm enhances versatility.
- Low dark current of 0.2nA ensures high signal clarity in low light.
- Operates efficiently within temperature range of -25°C to 85°C.
- Typical rise and fall times of 0.6ns provide fast response times.
- Reverse polarity designed photoconductive photodiode for precise detection.
- Compliant with RoHS standards guaranteeing environmental safety.
Product Description
OSI Optoelectronics PIN-040A Infrared Photodiode, featuring a 65° angle of half sensitivity, is designed for high speed and high sensitivity infrared detection applications. Encapsulated in a through hole TO-18 package, this photodiode offers robust mounting and easy integration into electronic assemblies.
With a peak sensitivity wavelength of 970nm and a spectral detection range from 350nm to 1100nm, it is ideally suited for a variety of visible and near-infrared sensing applications, including pulse detection, bar code readers, optical remote controls, optical communications, and high-speed photometry.
This photoconductive silicon photodiode exhibits low dark current (0.2nA) and low capacitance for enhanced signal accuracy and wide dynamic range. Typical rise and fall times of 0.6 nanoseconds enable rapid response essential for high-speed optical measurements. The device supports reverse polarity operation and is RoHS-compliant.
The physical dimensions of the device include a diameter of 5.33mm, height of 5.08mm, and length of 8mm, with a three-pin configuration suitable for through-hole mounting on printed circuit boards. Operating temperature ranges from -25°C to 85°C, ensuring reliable performance across diverse environmental conditions.
This photodiode features a through hole TO-18 package for secure and reliable PCB mounting. It offers high responsivity to infrared light with peak sensitivity at 970nm wavelength. Wide spectral response extends from ultraviolet to near-infrared regions (350 - 1100nm).
Low dark current enhances detection precision in low-light environments. Fast rise and fall times enable use in high-speed photometric applications. RoHS compliant ensuring adherence to environmental standards. Designed for applications in automotive systems, medical devices, optical communications, and industrial photometry.
Reverse polarity ensures high accuracy in photoconductive sensing. Compatible with tape and reel packaging for automated assembly processes.
This infrared photodiode is an ideal component for industrial, laboratory, medical, and commercial electronics usage where precise light detection is critical. Its robust packaging and environmental compliance make it suitable for reliable deployment in demanding applications.
Explore more from OSI Optoelectronics and related Photodiode products at EnvMart for advanced photodetection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this photodiode is 970nm.
It has a wide spectral response range from 350nm to 1100nm.
The photodiode has a diameter of 5.33mm, a height of 5.08mm, and a length of 8mm.
The maximum operating temperature for this model is 85°C.
It is encapsulated in a through hole TO-18 package.
The dark current of this photodiode is 0.2nA, which ensures high signal clarity in low light conditions.
The typical rise and fall times are both 0.6 nanoseconds.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
The angle of half sensitivity for this photodiode is 65°.
This photodiode has a three-pin configuration suitable for through-hole mounting.
It is suitable for applications such as pulse detection, bar code readers, optical remote controls, and optical communications.
This model supports reverse polarity operation, enhancing its detection capabilities.
