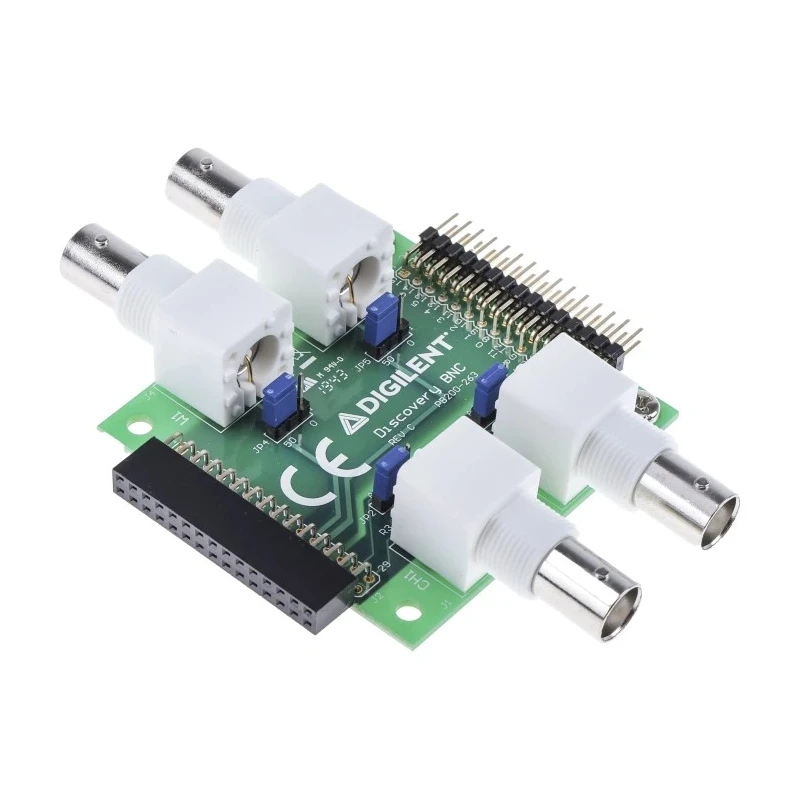

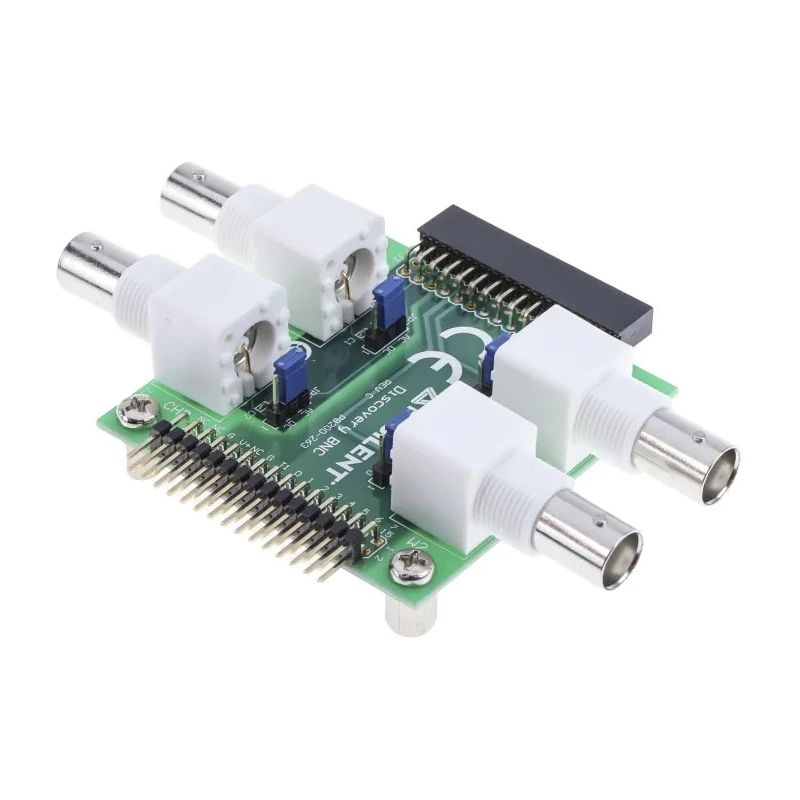

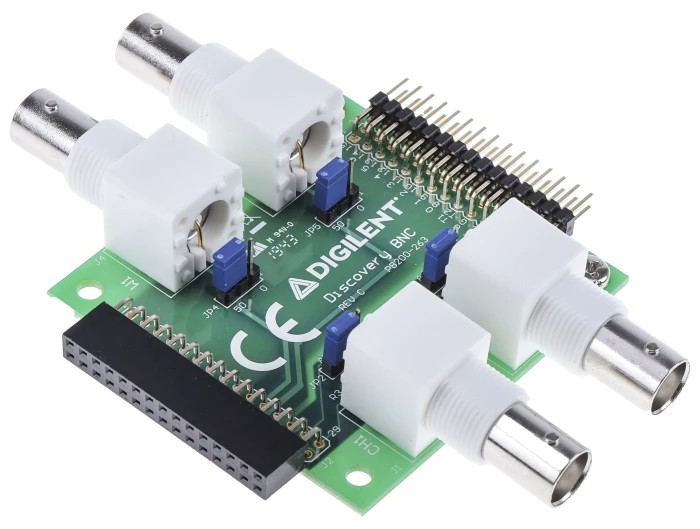

Digilent Oscilloscope BNC Adapter Board for Analogue Discovery 2 410-263

The Digilent 410-263 Oscilloscope BNC Adapter Board is specifically designed for use with the Analogue Discovery 2 measurement tool, providing a professional-grade interface for standard BNC terminated test leads and oscilloscope probes. This adapter enables two channels with BNC connectors, matching the two oscilloscope inputs on the Analogue Discovery 2 device.

Each oscilloscope channel includes jumper settings to select between AC and DC coupling, allowing tailored measurement setups depending on the signal characteristics. Additionally, the adapter offers configurable output impedance on the Arbitrary Waveform Generator channels, selectable between 50 ohms and zero ohms, enhancing signal integrity for various testing scenarios.

Constructed to rigorous quality standards, the 410-263 adapter board is perfect for engineers, technicians, and researchers requiring accurate and flexible analogue signal analysis in industrial, laboratory, educational, and manufacturing environments.

Key features include the standard BNC connectivity compatible with a wide range of oscilloscope probes and test leads, allowing straightforward integration into existing setups for waveform measurements and diagnostics.

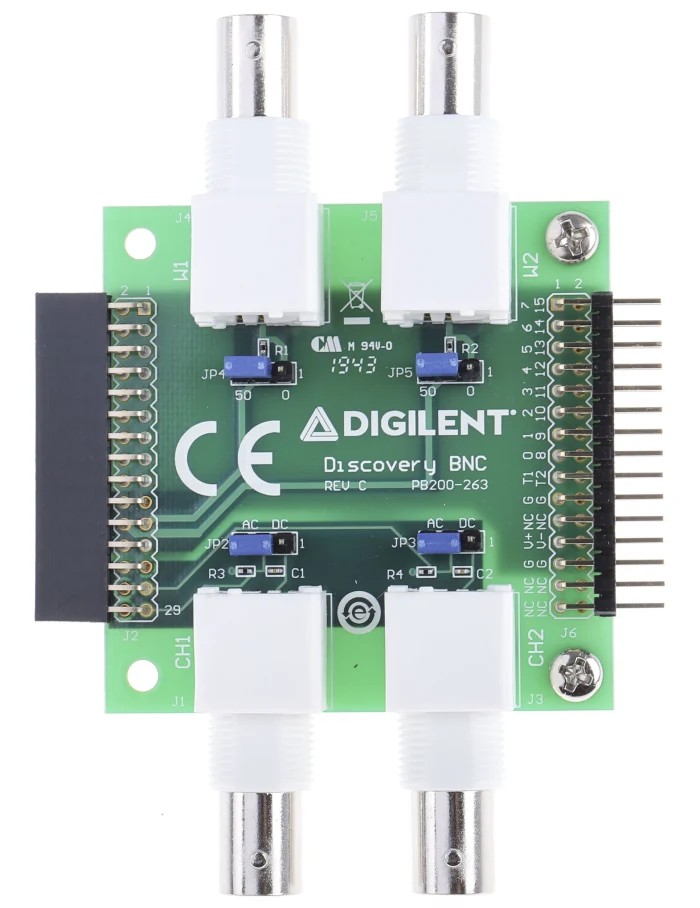

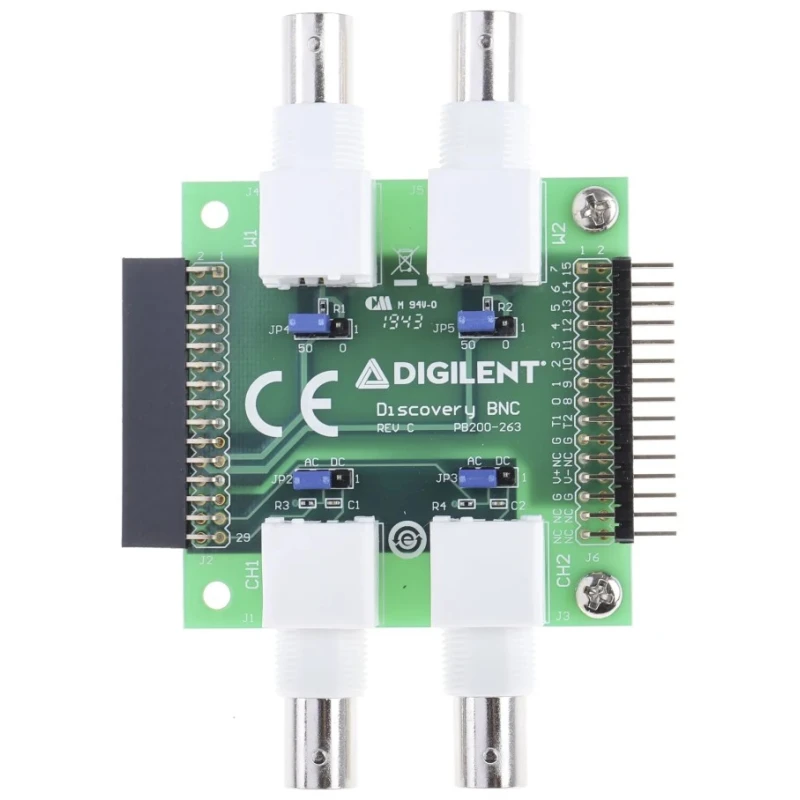

The adapter provides BNC terminations to two oscilloscope channels on the Analogue Discovery 2. Select AC or DC coupling per channel by adjusting jumpers behind each BNC input connector. Selectable 50 ohm or 0 ohm output impedance on Arbitrary Waveform Generator channels available for signal matching.

Compact form factor facilitates convenient laboratory and field use. Designed for robust and reliable measurement accuracy over extended use. Supports advanced waveform capture, signal analysis, and diagnostic testing. Compatible with various standard oscilloscope test leads and accessories.

This adapter expands the versatility of the Analogue Discovery 2 tool, making it a valuable addition for professionals engaged in electronic testing, validation, and education. Explore the full range of Oscilloscope Adapters and accessories at EnvMart to optimize your testing apparatus and improve measurement capabilities.
