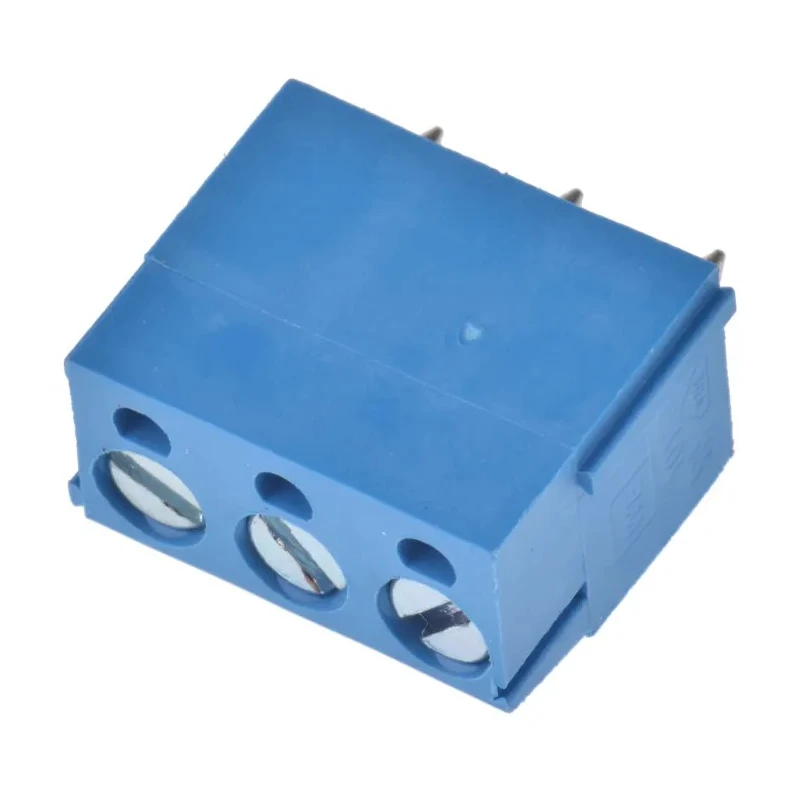

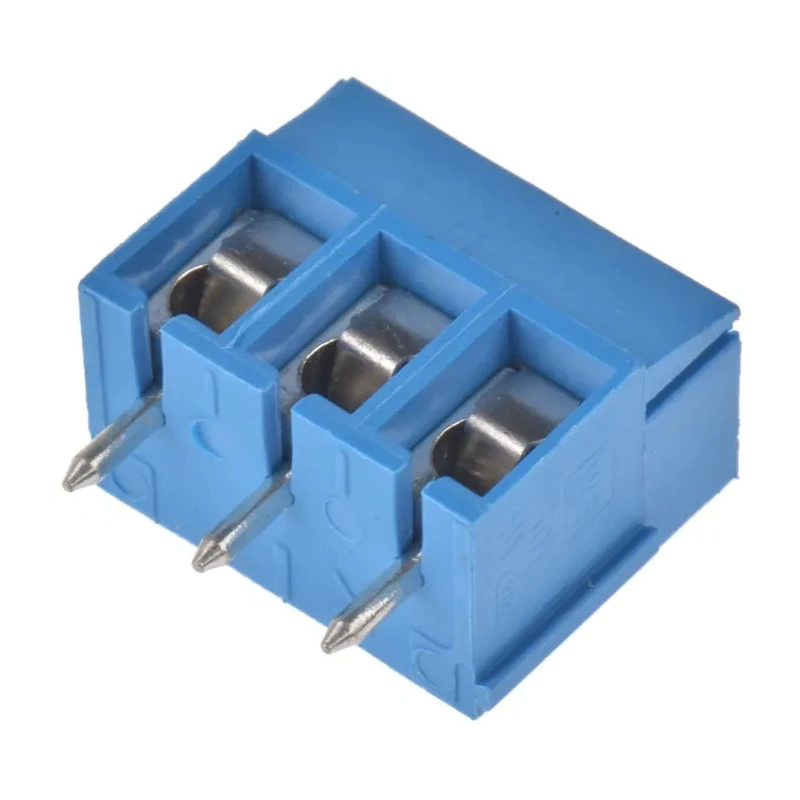

Wurth Elektronik PCB Terminal Block 3-Contact, 5 mm Pitch, 1 Row, 250V AC, 16A Current, Polyamide Housing 691101710003
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Wurth Elektronik |
| Colour | Blue |
| Orientation | Straight |
| Current | 16A |
| Length | 16.2mm |
| Depth | 12.6mm |
| Width | 9mm |
| Housing Material | Polyamide |
| Series | 101 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Pressure Clamp |
Key Features
- Rated for a current of 16A and voltage of 250V AC.
- Constructed with durable blue polyamide housing providing excellent insulation and mechanical strength.
- Features a pressure clamp wire connection method ensuring reliable and maintenance-free wiring.
- Accommodates wire sizes from 0.5 mm² to 2.5 mm² (26 AWG to 14 AWG).
- Compact dimensions with length 16.2 mm, width 9 mm, and depth 12.6 mm for efficient PCB layout.
- Uses M3 slot type screw terminals with stainless steel wire guards for secure contacts.
- Horizontal wire entry and side interlocking design for modular assembly.
- Complies with UL94-V0 flammability rating standards for safety.
Product Description
Wurth Elektronik 691101710003 PCB Terminal Block is a robust and reliable connector designed for printed circuit board applications. Featuring 3 contacts arranged in a single row and spaced with a 5 mm pitch, this terminal block supports currents up to 16A and voltages up to 250V AC, suitable for various electrical and electronic industrial applications.
The housing is manufactured from blue UL94-V0 rated polyamide (PA66), ensuring high flame resistance and durability under operating conditions. The terminal block employs a pressure clamp wire connection method with slot type M3 screw terminals and stainless steel wire guards, which offer dependable electrical contact and mechanical retention for wire sizes ranging from 0.5 mm² (26 AWG) to 2.5 mm² (14 AWG).
Its compact form factor with dimensions of 16.2 mm length, 9 mm width, and 12.6 mm depth allows efficient use of PCB space. The horizontal wire entry and side interlocking design enable easy modular mounting and facilitate reliable mechanical stability in assemblies.
This terminal block series 101 by Wurth Elektronik is ideal for applications across electronics, industrial machinery, power distribution, and automation systems where compact, safe, and secure PCB connections are essential.
Rated for 16A current and 250V AC voltage capacity. Three contacts in a single row with 5 mm pitch. Polyamide blue housing with UL94-V0 rating for safety. Pressure clamp wire connection method with M3 screw terminals. Wire gauge support from 26 AWG to 14 AWG.
Compact dimensions suitable for dense PCB layouts. Modular side interlocking for easy assembly. Stainless steel wire guards for enhanced contact security. This product is new and made in India. It offers excellent performance for electronic component connections and industrial use.
Explore more high-quality PCB Terminal Blocks and components at EnvMart to support your manufacturing and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 16A and a voltage of 250V AC.
It supports wire sizes ranging from 0.5 mm² to 2.5 mm², which corresponds to 26 AWG to 14 AWG.
The dimensions are 16.2 mm in length, 9 mm in width, and 12.6 mm in depth.
The housing is constructed from blue polyamide, which is rated UL94-V0 for flammability.
It uses a pressure clamp wire connection method with M3 slot type screw terminals for secure connections.
This model features three contacts arranged in a single row.
The pitch of this terminal block is 5 mm.
Yes, it features a horizontal wire entry and a side interlocking design that enables easy modular assembly.
It is suitable for applications in electronics, industrial machinery, power distribution, and automation systems.
This terminal block is manufactured in India.
It complies with UL94-V0 flammability rating standards for safety.
The orientation of this terminal block is straight.
