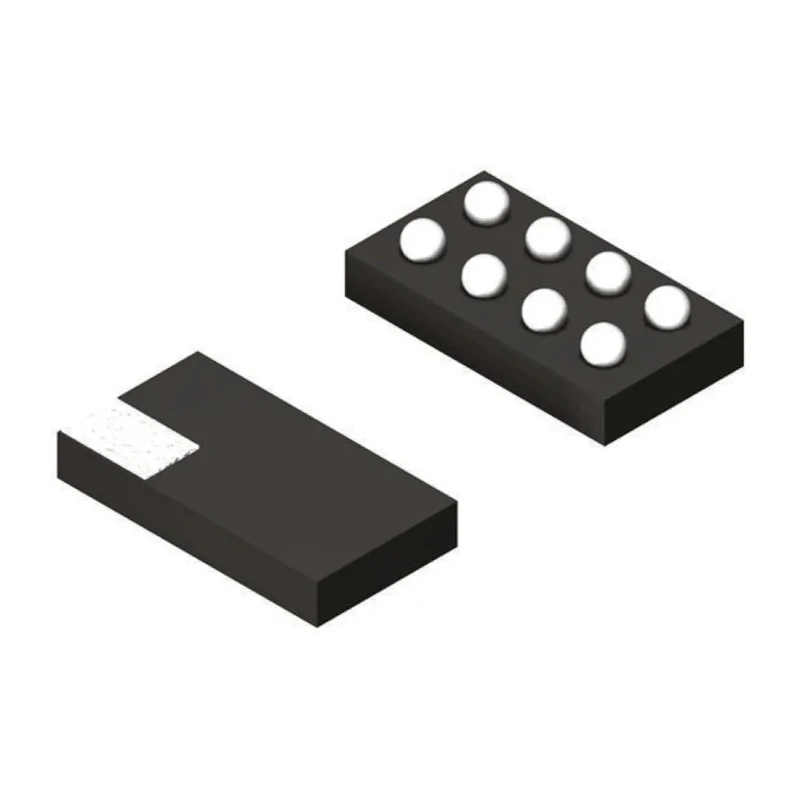

Texas Instruments Logic Level Translator, Bi-Directional, CMOS, 8-Pin DSBGA TXS0102YZPR

Texas Instruments TXS0102YZPR is a high-performance logic level translator designed for bi-directional voltage level translation in electronic circuits. This CMOS device operates with a minimum supply voltage of 1.65V, making it suitable for low-voltage applications in industrial, semiconductor, and electronic components sectors.

The 8-pin DSBGA surface mount package offers a compact form factor with precise dimensions measuring 1.92 mm length, 920 µm width, and 310 µm height, facilitating efficient PCB layouts.

This logic IC supports fast switching with a maximum propagation delay time of 7.5 nanoseconds at specified load capacitance, ensuring minimal signal latency. The device outputs are open drain and 3-state type, allowing integration within complex digital systems requiring multi-level logic compatibility.

Engineered for a broad operating temperature range from -40°C to 85°C, it guarantees stable performance across harsh environmental conditions common in industrial and manufacturing settings.

This translator includes one logic element per chip and features bi-directional operation with a maximum low-level output current of 1 mA and a maximum high-level output current of -20 µA.

While this specific model does not carry automotive standard certification, it represents a reliable solution for general electronics and PCB design applications. The device supports minimum 1.65V supply voltage for energy-efficient operation.

Features fast propagation delay time of 7.5ns at specified load. Compact 8-pin DSBGA surface mount package for space-saving designs. Wide operating temperature range of -40°C to 85°C for versatile applications. Bi-directional CMOS logic level translation functionality.

Open drain, 3-state output type for multi-level logic integration. One logic element incorporated per chip for precise functionality. Maximum low-level output current of 1mA and maximum high-level output current of -20μA.

Package dimensions: 1.92mm length, 920μm width, 310μm height.

This Texas Instruments logic level translator is ideal for use in electronic components, semiconductor manufacturing, testing instruments, and other industrial electronics applications requiring precise voltage level shifting.
