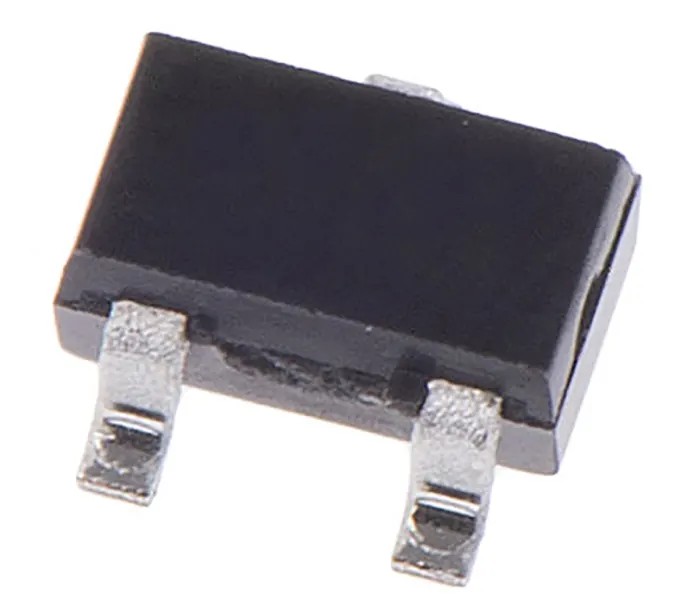

Nexperia Schottky Diode 40 V 200 mA Surface Mount 3-Pin SC-70 Package BAT854CW

Nexperia BAT854CW is a Schottky Barrier Diode designed for applications requiring low forward voltage drop and high efficiency. This surface-mount diode housed in a 3-pin SC-70 package has a peak reverse voltage rating of 40 V and a maximum continuous forward current of 200 mA, making it ideal for compact and efficient electronic designs.

With a maximum forward voltage of 550 mV, the diode ensures minimal power loss during conduction, which contributes to power savings in circuits such as power supplies, voltage clamping, and high-frequency rectification. Its low leakage current characteristics help maintain circuit stability and reduce thermal generation.

The device operates within a wide temperature range from -65°C to 150°C, satisfying the requirements of industrial and automotive environments. Compliance with the automotive standard AEC-Q101 indicates suitability for automotive electronics systems where reliability and quality are critical.

The compact SC-70 package dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height support integration in densely packed printed circuit boards and modern electronic devices. The common cathode diode configuration with 3 pins facilitates versatile mounting options.

Manufactured in Malaysia, the BAT854CW is supplied as a new product and is suitable for applications in power and signal rectification, reverse polarity protection, and high-efficiency switching circuits. Its ultra-small profile makes it ideal for portable, consumer electronics, and automotive systems.

This diode features ultra-small, low-profile surface-mount packaging suitable for compact circuit designs. Rated for a peak non-repetitive forward surge current of 1 A for transient conditions. Supports a maximum forward voltage of 550 mV, enabling efficient power conversion.

Operates reliably in temperature ranges from -65°C to +150°C, ensuring durability in harsh environments. Low leakage current and minimal power switching losses enhance device efficiency. Complies with automotive standard AEC-Q101, supporting automotive and industrial applications.

Common cathode diode configuration with 3 pins facilitates versatile circuit integration. Compact dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height suit space-constrained electronics. Manufactured in Malaysia with new product condition and high quality standards.
