| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 1.8mm |
| Model | PMEG6002EJ,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-90 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.75A |
| Maximum Forward Voltage Vf | 600mV |
| Peak Reverse Recovery Time trr | 5ns |

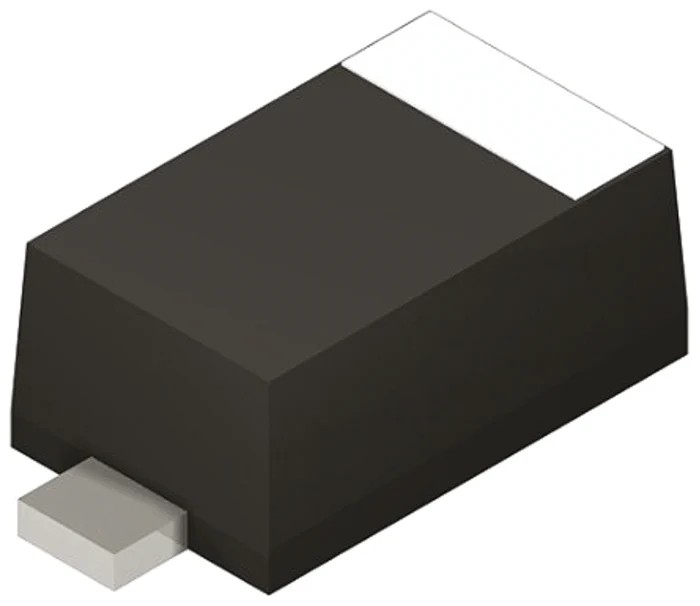

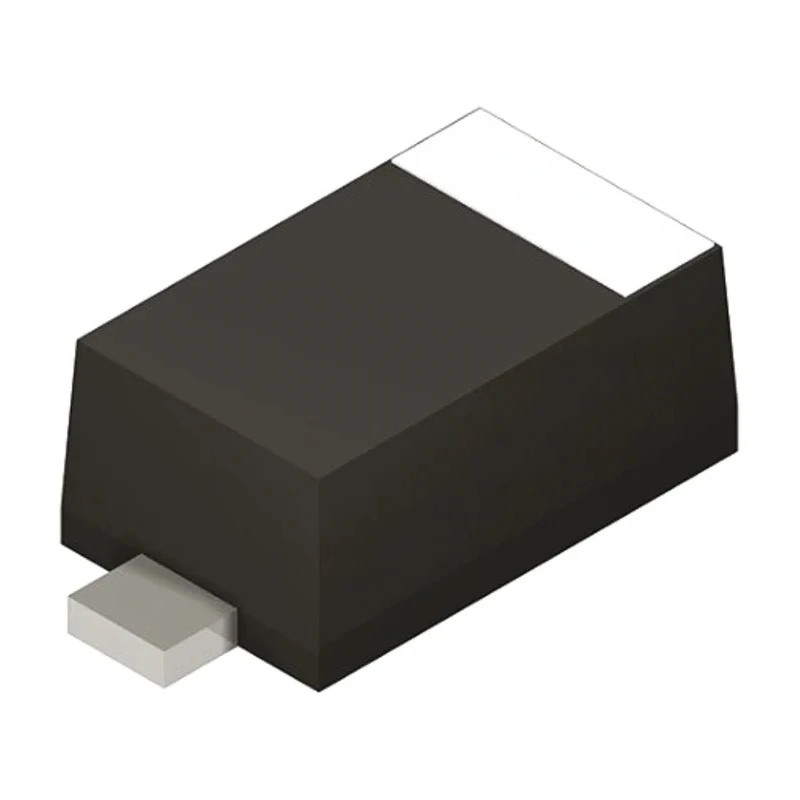

Nexperia PMEG6002EJ,115 Schottky Diode is a highly efficient semiconductor device with a 60 volt peak reverse repetitive voltage and a maximum continuous forward current of 200 milliamps. Packaged in a compact SC-90 surface mount form factor, this diode features low forward voltage drop and minimal leakage current making it suitable for power rectifier applications.
This 2-pin diode exhibits reliable performance up to 150 degrees Celsius and is compliant with the automotive industry standard AEC-Q101, enabling use in automotive electronic systems. Its low capacitance and fast recovery time of 5 nanoseconds help reduce power switching losses in circuits.
Typical uses include electronics manufacturing, power supplies, battery protection, and efficient rectification in industrial and automotive equipment. The diode's ultra-small size with length 1.8mm, width 1.35mm, and height 0.8mm allows for space-saving PCB designs.
With peak reverse current of 100 microamps and a peak non-repetitive forward surge current rating of 2.75 amps, the device offers robustness against transient surges. It is optimized for applications requiring high efficiency and compact footprints.
Supports maximum continuous forward current of 200mA providing stable current handling capability. Peak reverse repetitive voltage rating of 60V ensures breakdown protection under high voltage conditions. Low forward voltage drop of 600mV minimizes power dissipation and improves efficiency.
Small, surface mount SC-90 package enables integration in compact circuit designs. Automotive standard AEC-Q101 ensures suitability for vehicle electronics. Wide operating temperature range from -55°C to 150°C for demanding environments.
Fast reverse recovery time enhances performance in switching power supplies. Low leakage current of 100μA reduces unwanted power loss. Peak non-repetitive surge current capability of 2.75A protects against short current spikes.
