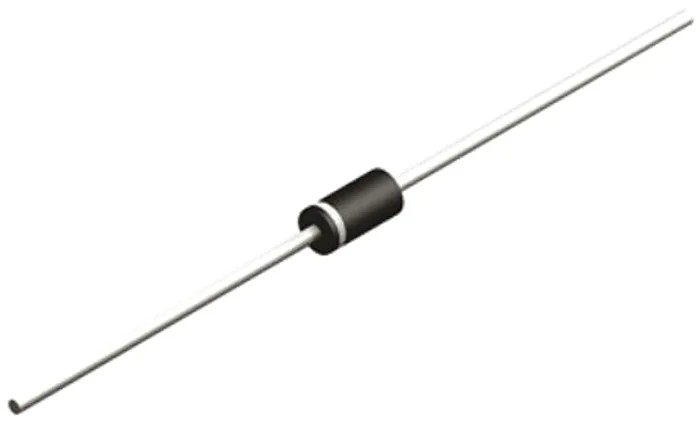

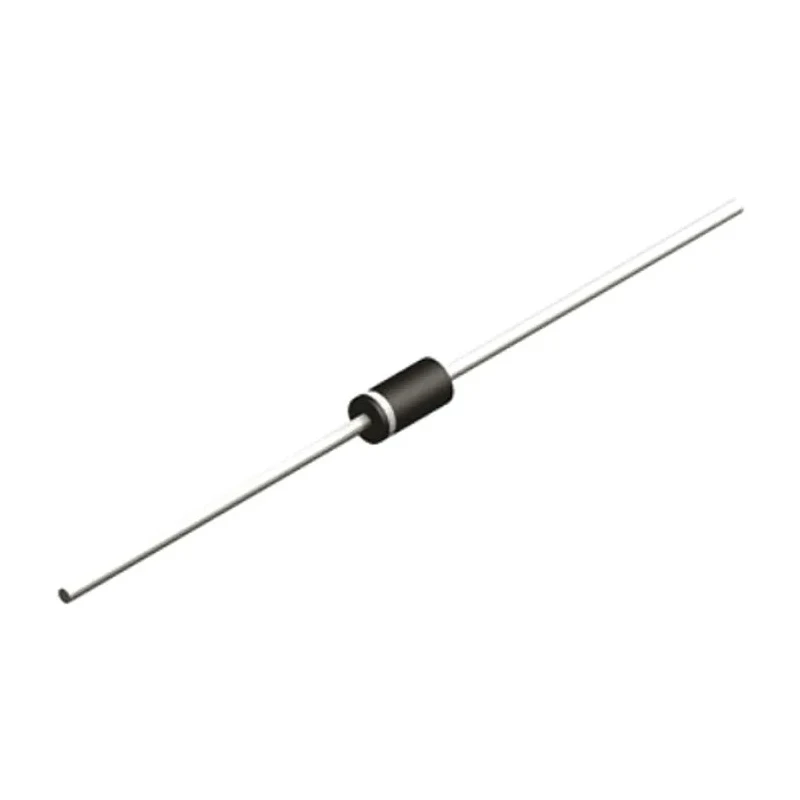

Vishay 1.3 W 3.3 V General Purpose Zener Diode, Single Element, Through Hole 2-Pin DO-41 BZX85B3V3-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.3 W 3.3 V General Purpose Zener Diode, Single Element, Through Hole 2-Pin DO-41 BZX85B3V3-TR

Name: Vishay 1.3 W 3.3 V General Purpose Zener Diode, Single Element, Through Hole 2-Pin DO-41 BZX85B3V3-TR
Brand: Vishay
SKU: 132936
Price: 0.13 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85B3V3-TR
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	80mA
Maximum Reverse Leakage Current	40μA
Nominal Zener Voltage Vz	3.3V
Zener Type	General Purpose
Maximum Zener Impedance	20Ω

Key Features

The diode features a single element configuration suiting various electronic stabilization applications.
Operates with a nominal Zener voltage of 3.3 volts and a tolerance of ±2%.
Maximum power dissipation is rated at 1.3 watts ensuring reliable performance in clipping and voltage regulation circuits.
Maximum reverse leakage current is only 40 microamperes, minimizing unwanted current flow when reverse biased.
Operating temperature range from -55°C to 175°C supports use in diverse environmental conditions.
The device is packaged in a standard DO-41 through hole form factor for easy PCB insertion.
Test current is 80 mA with a maximum Zener impedance of 20 ohms ensuring stable voltage regulation.
Country of origin is China, guaranteeing authentic sourced components.

Product Description

Vishay BZX85B3V3-TR is a precision engineered Zener diode with a nominal voltage of 3.3 V and maximal power dissipation rating of 1.3 W. It features a general purpose Zener type with a single diode configuration designed for stable voltage regulation in electronic circuits. The component package is through hole 2-pin DO-41, providing ease of mounting and reliability in signal and power conditioning applications.

The diode operates reliably within temperatures from -55°C to 175°C, suitable for a wide range of industrial, electronic, automotive, and laboratory equipment environments. Its maximum reverse leakage current of 40 μA and low Zener impedance of 20 Ω assure minimal losses and efficient stabilization. The test current for voltage regulation is 80 mA, making this device ideal for stabilizing voltages and clipping in power supplies and signal circuits.

Its compact dimensions of 4.1 mm length and 2.6 mm height allow integration in small form factor designs without sacrificing performance. The diode is part of the well-known BZX85 series by Vishay Semiconductor, a trusted name in discrete semiconductors.

The diode is widely used in stabilising and clipping circuits with high power rating requirements. Its silicon planar construction ensures durable performance under electrical stress. The through hole DO-41 package type supports robust mechanical mounting on PCBs in manufacturing.

The device is designed for use in power electronics, communications, and industrial control systems. Operating temperature range supports deployment in harsh environments including automotive and industrial sectors. Low leakage current and tight voltage tolerance guarantee precise voltage stabilization.

This product is manufactured in China under Vishay's stringent quality standards and serves numerous industrial, electronic, and laboratory applications. It is well suited for engineers and technicians requiring a reliable Zener diode with 3.3V nominal voltage and 1.3W power capability in a through hole package.
