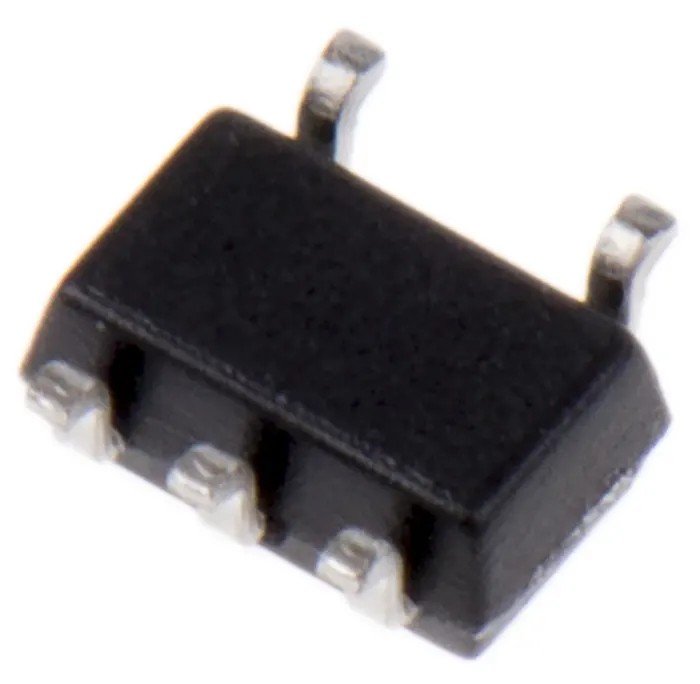

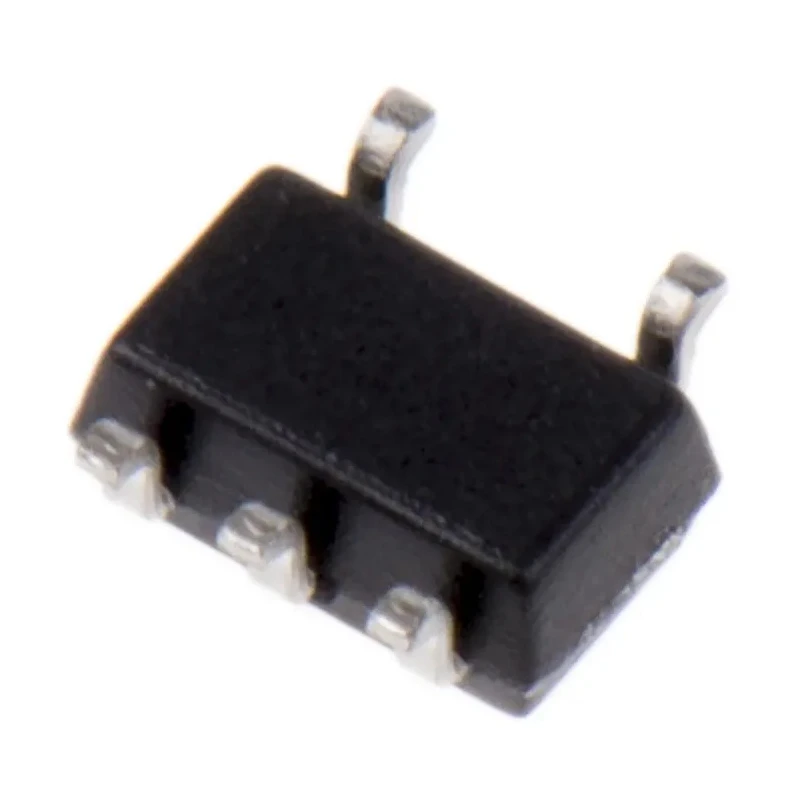

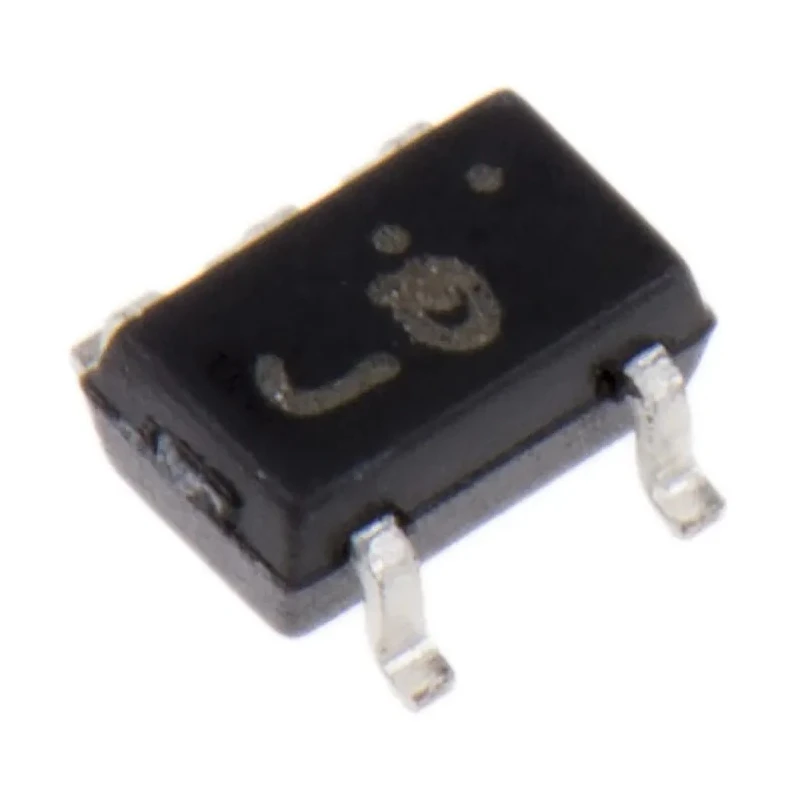

onsemi Voltage Level Shifter Voltage Level Translator 2 Elements Uni-Directional 5-Pin SC-88A NLSV1T34DFT2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NLSV1T34DFT2G |
| Mount Type | Surface |
| Output type | 3 State |
| Series | NLSV1T34 |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-88A |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 4.5V |
| Logic Family | Translator |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 900mV |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 3.3ns |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 24mA |
| Translation | Low Voltage |
Key Features
- This device operates with a maximum supply voltage of 4.5V and a minimum supply voltage of 900mV.
- It supports a maximum propagation delay time of 3.3ns at CL.
- The translator has a 3-state output type and can deliver a maximum low level output current of 24mA.
- Operating temperature ranges from -40°C to +85°C ensuring robust performance in various environments.
- Its compact dimensions of 1mm height and 2.2mm length enable integration in space-constrained circuits.
- The chip meets AEC-Q100 automotive standard ensuring reliability for automotive applications.
- Ideal for electronic components, power & connectors, and semiconductor logic IC applications.
Product Description
onsemi NLSV1T34DFT2G Voltage Level Shifter is a specialized uni-directional voltage level translator designed for low voltage electronic applications. It features two elements per chip and is packaged in a compact 5-pin SC-88A surface mount package, allowing efficient PCB layout and space saving.
The device supports a wide supply voltage range from 900mV minimum to 4.5V maximum with a maximum propagation delay time of 3.3ns under typical load conditions, enabling fast and reliable signal level shifting. Its 3-state output type and capability to source and sink 24mA allows for flexible interfacing with various logic levels and devices.
With an operating temperature range from -40°C to 85°C, this voltage level translator is suited for demanding industrial and automotive environments. Compliance with the AEC-Q100 automotive standard further certifies its durability and suitability in automotive electronics.
Typical applications for this voltage level shifter include use in semiconductor logic ICs, power & connector modules, and other electronic components requiring signal level translation between differing voltage domains.
This device operates with a maximum supply voltage of 4.5V and a minimum supply voltage of 900mV. Maximum propagation delay time is 3.3ns ensuring timely signal conversion. Uni-directional operation with 2 elements per chip enhances circuit design flexibility.
3-state output type allows for multiple device interface compatibility. Compact surface mount SC-88A package dimensions of 1mm height and 2.2mm length. Operating temperature ranges from -40°C to 85°C for broad application scope.
Certified to automotive standard AEC-Q100 ensuring high reliability and quality.
This level shifter is suitable for industrial, automotive, manufacturing, and electronic device design requiring efficient voltage translation with minimal delay and robust performance. Environmentally sealed and RoHS compliant, it supports sustainable electronics manufacturing practices.
Explore more onsemi semiconductor components and Logic ICs in the EnvMart catalog for comprehensive electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 4.5V.
It operates with a minimum supply voltage of 900mV.
The maximum propagation delay time is 3.3ns at typical load conditions.
It features a 3-state output type, allowing for flexible interfacing with various logic levels.
The operating temperature range is from -40°C to +85°C.
Each chip contains 2 elements, designed for uni-directional operation.
The device is packaged in a compact SC-88A package with dimensions of 1mm height and 2.2mm length.
It can deliver a maximum low level output current of 24mA.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This model utilizes a surface mount type for efficient PCB layout.
Typical applications include semiconductor logic ICs, power & connector modules, and other electronic components requiring signal level translation.
The logic function of this model is as a voltage level translator, facilitating signal level shifting between differing voltage domains.
