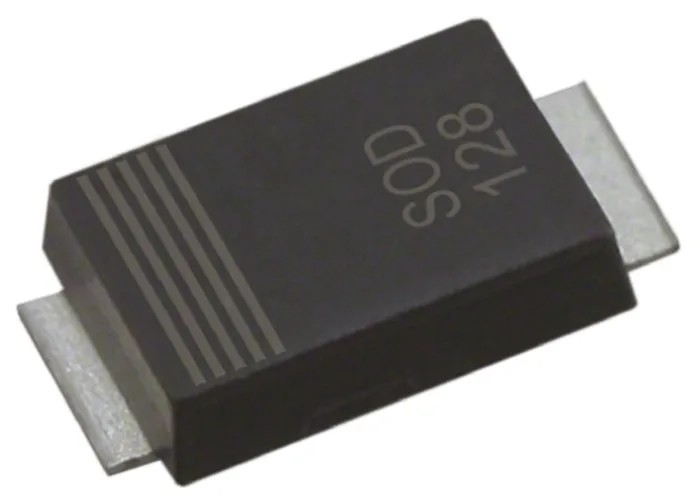

Nexperia 1-Element Uni-Directional TVS Diode 600W, 2-Pin Surface Mount SOD-128 PTVS30VP1UP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PTVS30VP1UP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 12.4A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Single diode configuration ensures efficient voltage regulation.
- Uni-directional design protects against transient voltage spikes.
- Surface mount package type SOD-128 enables compact PCB layout.
- Clamping voltage of 48.4V provides reliable surge suppression.
- Wide operating temperature range from -55°C to 150°C.
- Maximum reverse leakage current of 100nA minimizes power loss.
- Automotive standard AEC-Q101 qualified for high reliability applications.
- 2-pin pin count suitable for standard surface mount assembly.
Product Description
Nexperia PTVS30VP1UP,115 is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for protection of sensitive electronic circuits against transient voltage spikes and surges. Rated for a peak pulse power dissipation of 600 W, the device is housed in a small, flat, surface-mount SOD-128 package with a 2-pin configuration suitable for automated PCB assembly. It provides a clamping voltage of 48.4 V to rapidly clamp voltage spikes and protect downstream components.
This TVS diode features a single diode configuration optimized for uni-directional transient voltage suppression. It has a minimum breakdown voltage of 33.3 V and a maximum reverse stand-off voltage of 30 V, ensuring stability during normal operation. The device maintains extremely low leakage current of 100 nA and is qualified to AEC-Q101 automotive reliability standards making it suitable for demanding industrial and automotive applications.
The diode supports a wide operating temperature range from -55°C to 150°C, allowing use in harsh environments. Its compact dimensions (4 mm length, 2.7 mm width, 1.1 mm height) facilitate space-saving designs in electronics, industrial controls, telecommunications, and automotive circuits.
Single diode configuration ensures efficient voltage regulation. Uni-directional design protects against transient voltage spikes. Surface mount package type SOD-128 enables compact PCB layout. Clamping voltage of 48.4V provides reliable surge suppression.
Wide operating temperature range from -55°C to 150°C. Maximum reverse leakage current of 100nA minimizes power loss. Automotive standard AEC-Q101 qualified for high reliability applications. 2-pin pin count suitable for standard surface mount assembly.
Peak pulse current rating of 12.4A withstands large transient events. Compact dimensions: length 4mm, width 2.7mm, height 1.1mm.
This Nexperia PTVS30VP1UP,115 diode is ideal for industrial, automotive, telecommunications, and consumer electronics applications requiring robust transient voltage protection. It safeguards end equipment from electrical overstress events and ensures enhanced system reliability.
Explore complete TVS Diode offerings and related semiconductor components available from EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Nexperia PTVS30VP1UP,115 is rated at 600 W, allowing it to handle significant transient voltage spikes.
This model features a clamping voltage of 48.4 V, which provides reliable surge suppression for connected components.
The maximum reverse leakage current for this diode is 100 nA, which helps minimize power loss during operation.
It operates within a wide temperature range from -55°C to 150°C, making it suitable for harsh environments.
The diode is housed in a surface mount SOD-128 package with dimensions of 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
This model is qualified to the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
The Nexperia PTVS30VP1UP,115 has a single diode configuration, which is optimized for uni-directional transient voltage suppression.
The maximum reverse stand-off voltage for this diode is 30 V, which ensures stability during normal operation.
The minimum breakdown voltage of this unit is 33.3 V, allowing it to effectively clamp voltage spikes.
It has a maximum peak pulse current rating of 12.4 A, enabling it to withstand large transient events.
This diode supports surface mounting, which facilitates automated PCB assembly.
This diode is suitable for industrial, automotive, telecommunications, and consumer electronics applications requiring transient voltage protection.
