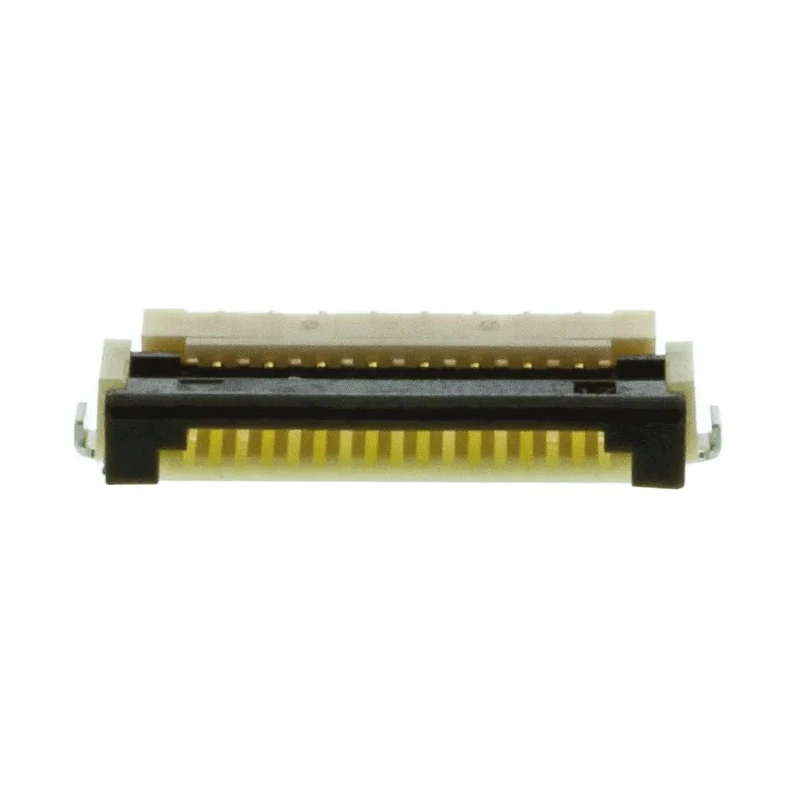

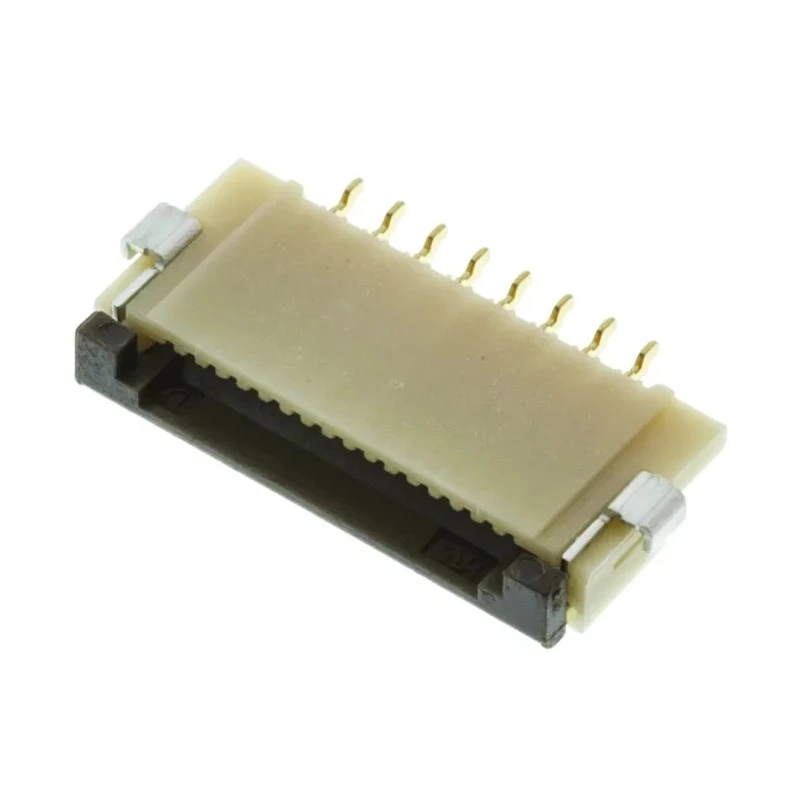

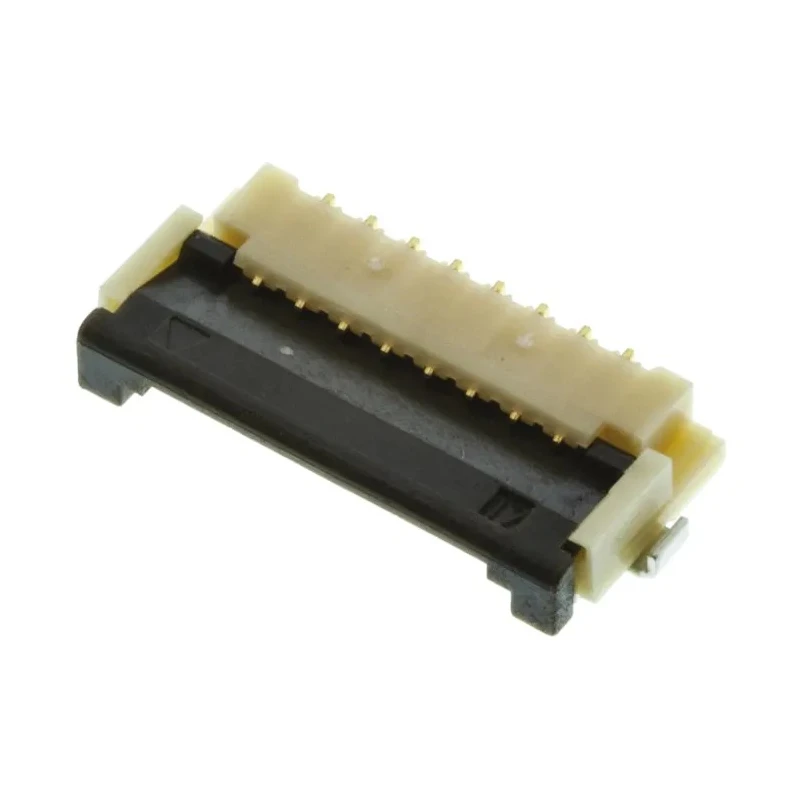

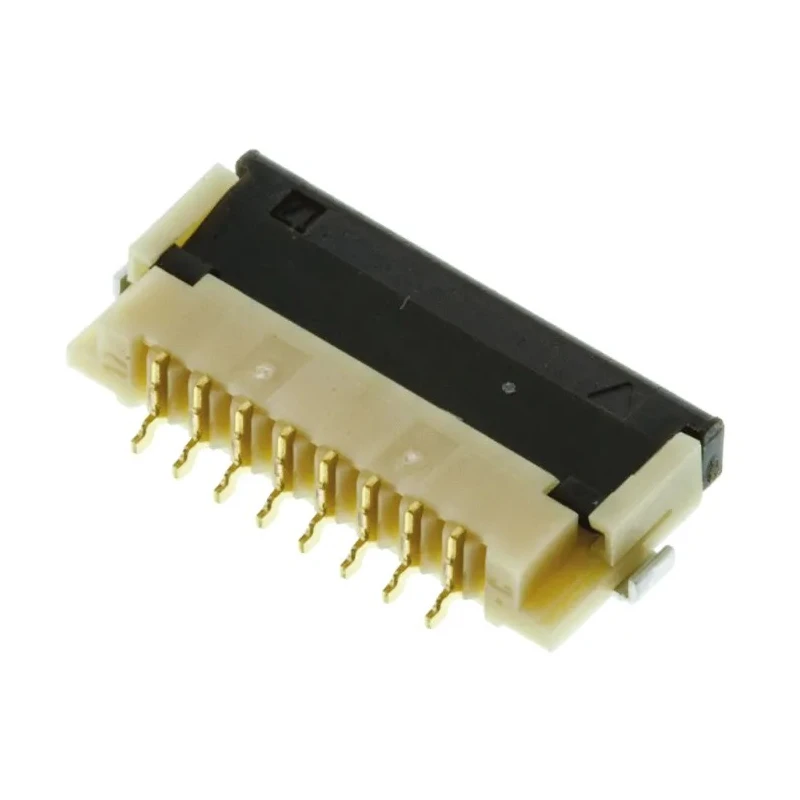

Hirose FH12 1 mm Pitch 8 Way Right Angle Female FPC Connector ZIF Bottom Contact FH12
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a one-touch rotating ZIF actuator for zero insertion force.
- The actuator provides a tactile click to confirm proper mating.
- Designed for high density mounting with space-saving PCB design.
- Made with phosphor bronze contacts plated in gold for reliable conductivity.
- Supports a current rating of 500mA and voltage of 50V AC.
- Operates reliably within -40°C to 85°C temperature range.
- Housing manufactured from durable polyamide material.
- Connector orientation is right angle with female gender and bottom contact position.
Product Description
Hirose FH12 1 mm Pitch 8 Way Right Angle Female FPC Connector FH12 is a high-quality ZIF Bottom Contact connector designed for demanding electronic applications. The connector features a one-touch rotating zero insertion force actuator which facilitates easy cable insertion and secure locking with a tactile click sound confirming the mating status.
This 8-contact connector supports currents up to 500mA and voltage ratings of 50V AC, suitable for low power signal and data transmission in compact electronic devices. The right-angle orientation and bottom contact positioning allow for efficient routing and space-saving PCB layouts, supporting high density mounting.
The contact material is phosphor bronze with gold plating, ensuring low contact resistance and excellent reliability even under varying environmental conditions, operating from -40°C to 85°C. Its polyamide housing provides mechanical robustness and insulation to withstand industrial application demands.
The connector is widely used in mobile phones, GPS units, notebooks, data terminals, LCD TVs, digital and video cameras, and other small handheld electronic devices requiring reliable FPC to PCB connections. This connector series is manufactured in Japan, complying with Hirose quality standards.
One-touch rotating ZIF actuator for effortless cable insertion. Tactile click feedback confirms secure mating. Space-saving design suitable for high-density PCB mounting. Gold-plated phosphor bronze contacts for excellent conductivity and durability.
Rated for 500mA current and 50V AC voltage. Operates reliably in -40°C to 85°C temperature range. Durable polyamide housing with locking mechanism included. Right angle, female, bottom contact configuration. Manufactured according to Hirose FH12 series standards in Japan.
Ideal for mobile phones, GPS, notebooks, LCD TVs, cameras, and handheld devices. Explore our selection of FPC Connectors and Hirose products in the Electronics & Electricals category at EnvMart for high-quality interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 500mA.
It is rated for a voltage of 50V AC.
The connector operates reliably within a temperature range of -40°C to 85°C.
It features a one-touch rotating ZIF actuator that allows for zero insertion force and provides tactile feedback upon mating.
The contacts are made of phosphor bronze and are plated in gold for reliable conductivity.
This connector has a total of 8 contacts.
The connector has a right angle orientation with a bottom contact position.
The housing is manufactured from durable polyamide material.
It is designed for surface mounting.
It is widely used in mobile phones, GPS units, notebooks, LCD TVs, and digital cameras, among other small handheld devices.
The connector has a pitch size of 1mm.
It is manufactured in Japan, complying with Hirose quality standards.
