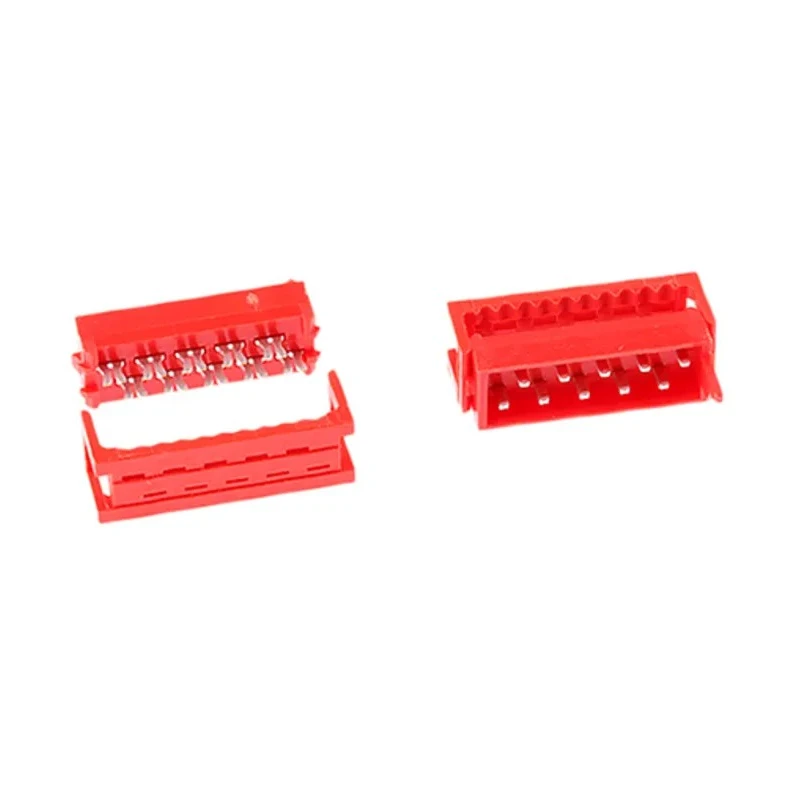

Wurth Elektronik 10-Way IDC Connector Male Cable Mount 2 Row 250V 1A WR-MM 690157001072
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Compact 2.54mm staggered pitch wire-to-board male IDC cable mount MiniModule connector.
- Features a low profile design with a red UL94-V0 Polybutylene Terephthalate housing.
- Phosphor bronze contacts with matte tin over nickel plating ensure durability and conductivity.
- Unshrouded straight orientation suitable for ribbon cables with 1.27mm pitch.
- Operates reliably between -40°C and 105°C temperature range.
- Rated for 250V voltage and 1A current capacity.
- WR-MM series connectors compatible with multiple mating products for system flexibility.
- Ideal for board-to-board or wire-to-board industrial electronics applications.
Product Description
Wurth Elektronik 690157001072 IDC Connector 10-Way Male Cable Mount, 2 Row, designed for secure and efficient wire-to-board electrical connections in industrial and electronic applications. This WR-MM series connector features a 2.54mm staggered pitch and a compact low profile red UL94-V0 rated Polybutylene Terephthalate (PBT) body. The male IDC connector is optimized for use with ribbon cables having a 1.27mm pitch, ensuring precise mating and reliable conductivity.
Constructed with phosphor bronze contacts plated with matte tin over nickel, this connector ensures excellent contact reliability, resistance to corrosion, and long service life under electrical stress. Rated at 250V and 1A, it meets standard electronic component requirements for signal and low power applications within a temperature range of -40°C to 105°C. The unshrouded straight orientation facilitates easy cable mounting and integration into compact assemblies.
This product is part of Wurth Elektronik's WR-MM MiniModule range, providing seamless compatibility with various complementary connectors enabling flexible wire-to-board or board-to-board configurations in industrial, manufacturing, and electronic device contexts. The IDC termination type allows fast and consistent cable termination without needing to strip insulation, enhancing assembly efficiency and reducing labor.
Compact 10-contact male IDC cable mount for ribbon cable with 2 rows. Red UL94-V0 Polybutylene Terephthalate housing ensures durability and fire resistance. Phosphor bronze contacts with tin over nickel plating for superior corrosion resistance.
Rated for 250 volts, 1 ampere, and temperature range of -40°C to 105°C. Unshrouded, straight orientation designed for easy installation. IDC termination type enables quick cable connection without stripping wires. Part of WR-MM series for compatibility with related Wurth connectors.
Applications include industrial electronics, manufacturing equipment, and electronic component assemblies.
This connector represents a robust choice for designers and engineers looking for reliable small form factor IDC connectors for cable-to-board connections. Explore more IDC Connectors and Wurth Elektronik products in the EnvMart catalog for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V, making it suitable for signal and low power applications.
It has a current capacity of 1A, which is appropriate for various electronic applications.
This model operates reliably within a temperature range of -40°C to 105°C.
The housing is made of Polybutylene Terephthalate (PBT), and the contacts are made of phosphor bronze with a tin over nickel plating.
This IDC connector features 10 contacts, arranged in 2 rows.
It utilizes IDC (Insulation Displacement Connector) termination, allowing for quick cable connections without stripping wires.
The connector has a staggered pitch of 2.54mm, which is designed for compatibility with ribbon cables.
It features a straight orientation, which facilitates easy cable mounting and integration into assemblies.
Yes, it is part of the WR-MM series, providing compatibility with various complementary connectors for flexible configurations.
The connector is manufactured in India, as indicated by its country of origin.
It is suitable for industrial electronics, manufacturing equipment, and electronic component assemblies.
The housing is rated UL94-V0, indicating it has fire resistance properties, enhancing safety in applications.
