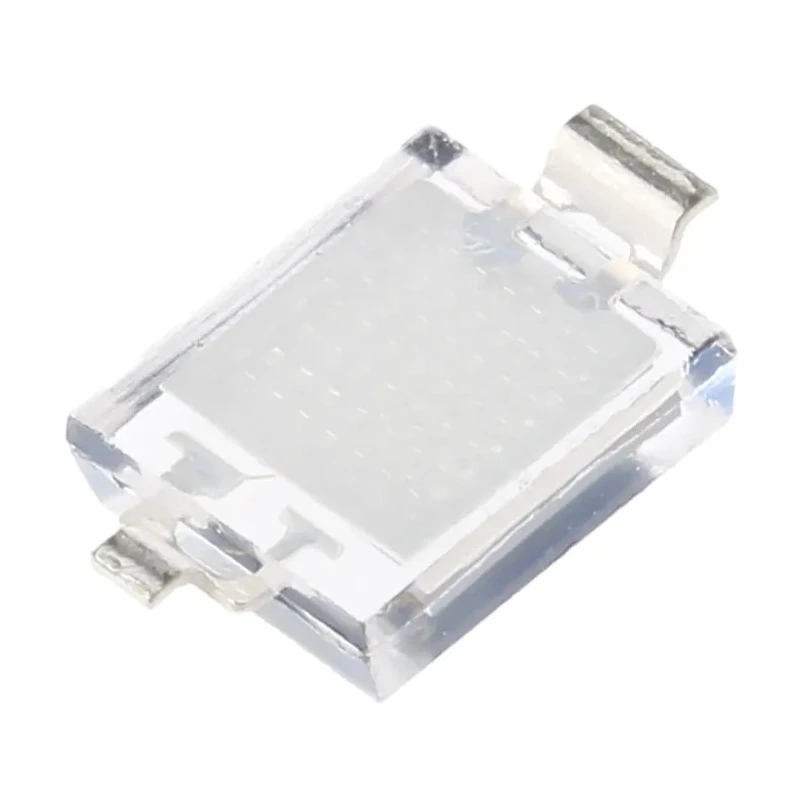

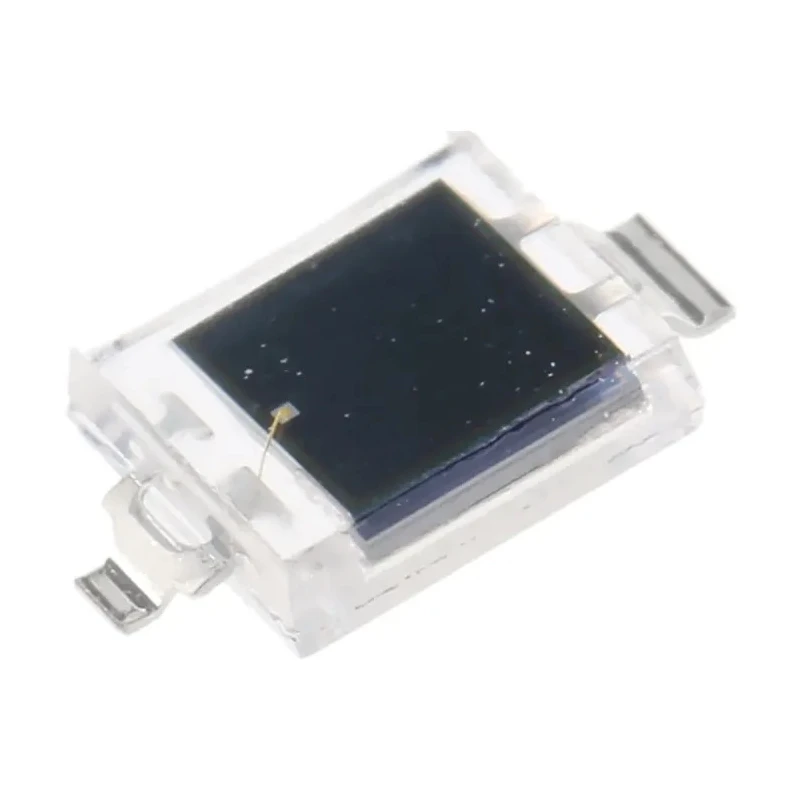

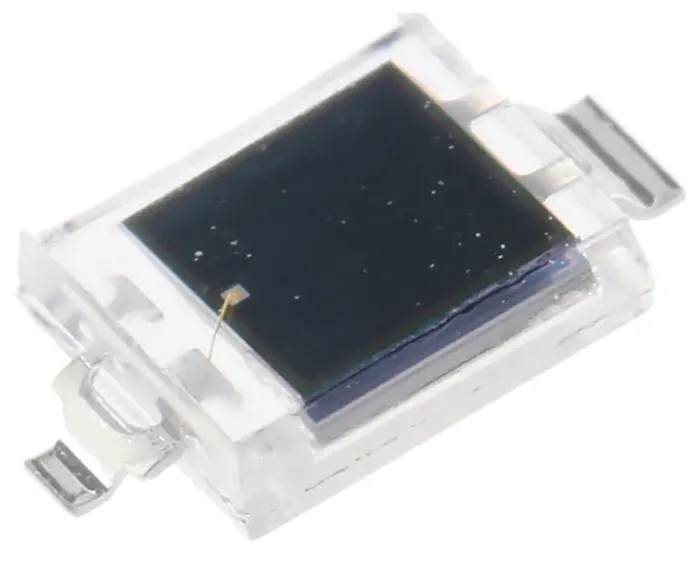

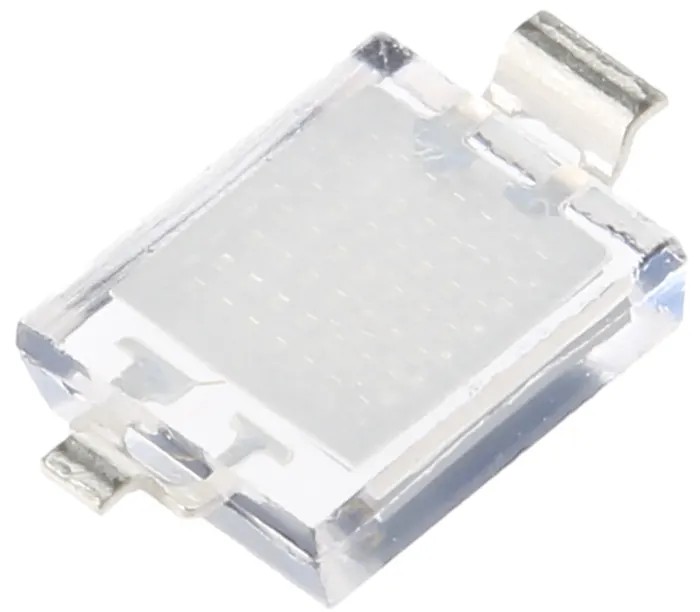

Vishay Infrared and Visible Light Photodiode Surface Mount GW Package VBPW34S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 6.4 x 3.9 x 1.2 mm |
| Height | 1.2mm |
| Length | 4.4mm |
| Model | VBPW34S |
| Packaging | Tape & Reel |
| Width | 3.9mm |
| Mount Type | Surface |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | GW |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 80ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| Lead types | gull-wing (GW) and reverse gull-wing (RGW) |
Key Features
- The photodiode operates with a wavelength range of 430nm to 1100nm, with peak sensitivity at 940nm.
- It features fast response times with typical rise and fall times of 80ns each.
- This device has an open circuit voltage of 350mV and a breakdown voltage of 60V for robust operation.
- The photodiode is suitable for surface mounting with gull-wing leads and tape and reel packaging for automated assembly.
- Designed for temperatures from -40°C to 100°C and compliant with RoHS and automotive AEC-Q101 standards.
- Physical dimensions measure approximately 6.4 x 3.9 x 1.2 mm.
- The device has a forward polarity and a dark current of 2nA ensuring low noise performance.
Product Description
Vishay VBPW34S is a high sensitivity silicon PIN photodiode designed to detect infrared and visible light wavelengths ranging from 430nm to 1100nm, with a peak sensitivity at 940nm. This photodiode comes in a compact surface mount gull-wing (GW) package suitable for automated assembly processes using tape and reel packaging.
The device offers fast response times, featuring typical rise and fall times of 80ns, making it suitable for applications requiring rapid light detection. It also provides a high open circuit voltage of 350mV and withstands a breakdown voltage of 60V, ensuring stable operation in diverse conditions.
Designed to operate across a wide temperature range from -40°C to 100°C, the VBPW34S photodiode complies with RoHS environmental standards and the automotive AEC-Q101 quality standard, making it reliable for automotive and industrial applications.
Physical dimensions are compact at 6.4 mm length, 3.9 mm width, and 1.2 mm height, with gull-wing type leads facilitating surface mounting and electrical connections. The device features a forward polarity and a dark current of only 2nA, which ensures low electronic noise and high sensitivity during operation.
The photodiode supports infrared and visible light detection with a 65 ° half sensitivity angle for precise directional sensing. Typical rise and fall times of 80ns provide excellent speed performance. Operates reliably at temperatures between -40°C and 100°C.
Complies with RoHS and Automotive AEC-Q101 standards for safety and quality assurance.
This photodiode is ideal for use in electronic components and optoelectronics, particularly in applications such as optical sensors, measurement instruments, and automotive sensing systems. It comes packaged ready for insertion into production machinery, facilitating efficient manufacturing and assembly processes.
Explore a wide range of Vishay Photodiodes and optoelectronic components at EnvMart for industrial, laboratory, and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VBPW34S photodiode operates with a wavelength range of 430nm to 1100nm, with peak sensitivity at 940nm.
This model features typical rise and fall times of 80ns each, allowing for fast response in light detection applications.
The open circuit voltage of the VBPW34S photodiode is 350mV, providing stable operation under various conditions.
The breakdown voltage for the VBPW34S photodiode is 60V, ensuring robust operation.
The physical dimensions of this photodiode are approximately 6.4 mm in length, 3.9 mm in width, and 1.2 mm in height.
The VBPW34S photodiode has a dark current of 2nA, which contributes to low noise performance.
This photodiode is designed to operate within a temperature range of -40°C to 100°C.
The VBPW34S is packaged in tape and reel format, which is suitable for automated assembly.
This photodiode complies with RoHS environmental standards and the automotive AEC-Q101 quality standard.
The angle of half sensitivity for the VBPW34S is 65°, allowing for precise directional sensing.
The VBPW34S photodiode features 2 pins, which are designed for surface mounting.
This model is capable of detecting both infrared and visible light spectrums.
