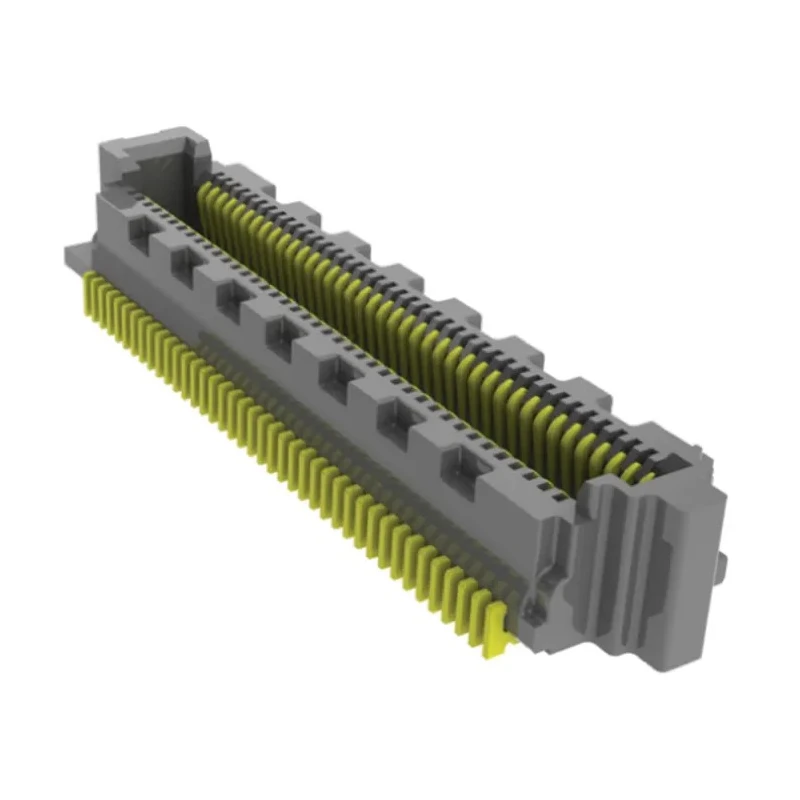

Samtec SS4 Series Straight Surface PCB Socket 40-Contact 2 Row 0.4 mm Pitch Solder SS4-20-3.50-L-D-K-TR

Name: Samtec SS4 Series Straight Surface PCB Socket 40-Contact 2 Row 0.4 mm Pitch Solder SS4-20-3.50-L-D-K-TR
Brand: Samtec
SKU: 130560
Price: 4.84 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1.3A
Model	SS4-20-3.50-L-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SS4
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.4mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	6mm
Row Pitch	1.41mm

Key Features

Features ultra fine 0.4 mm pitch with two rows totaling 40 contacts.
Constructed using liquid crystal polymer housing for thermal stability.
Socket contacts are phosphor bronze with 0.25μm gold plating on contact area for superior conductivity.
Designed for high speed and rugged applications with a stacking height of 6 mm.
Operates reliably between -55°C to 125°C temperature range.
Polarized design with undercut retention notches ensuring secure contact engagement.
Intended for solder termination on PCB surface.
Female contact gender with a pitch of 0.4 mm and row pitch of 1.41 mm.

Product Description

Samtec SS4 Series straight surface PCB socket, model SS4-20-3.50-L-D-K-TR, is a precision 40-contact, 2-row socket designed with a 0.4 mm pitch solder termination for SMT board-to-board applications. This low profile socket features a slim, space-saving design with black liquid crystal polymer housing providing excellent mechanical stability and high temperature resistance.

The socket contacts are made of phosphor bronze, plated with 0.25 microns of gold on the contact area to ensure optimal conductivity, coupled with a matte tin plating on the tail for reliable soldering. It is engineered for high speed and durable use, featuring Razor Beam™ contacts that provide a 1 mm contact swipe. The polarized socket ensures secure and foolproof mating with undercut retention notches that increase withdrawal force upon contact engagement.

With a stacking height of 6 mm and operating temperatures ranging from -55°C to 125°C, this component supports demanding industrial and electronic manufacturing environments. The current rating of 1.3 A suits many signal and low power applications.

Key features include its fine 0.4 mm pitch enabling high-density PCB configurations, female contact gender for versatile board-to-board connections, and a surface mount orientation tailored for SMT assembly processes.

This product is ideal for industrial electronics, telecommunications hardware, test and measurement equipment, and other commercial electronic applications demanding reliable PCB interconnection.

Ultra fine 0.4 mm pitch with 40 contacts in two rows. Liquid crystal polymer black housing for high temperature tolerance. Phosphor bronze contacts with gold plating for excellent conductivity. Razor Beam™ contact technology for reliable contact performance.

Surface mount solder termination for PCB assembly. Operating temperature range of -55°C to 125°C. Polarized design with retention notches for secure contact. Stacking height of 6 mm suitable for low profile applications.
