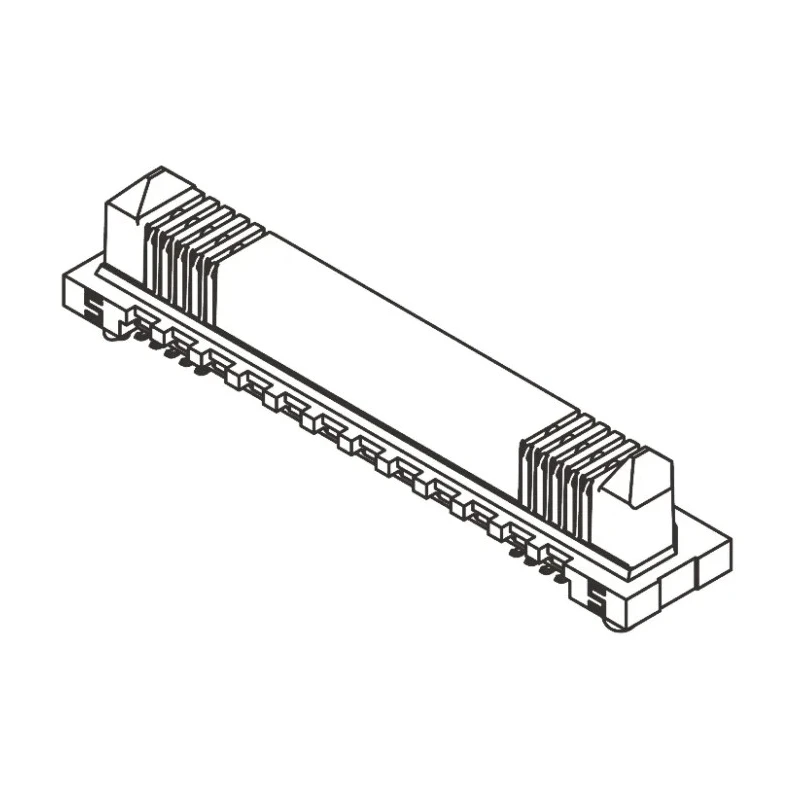

Samtec ERM8 Series Straight Surface PCB Header 80 Contact 0.8 mm Pitch 2 Row Shrouded ERM8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 1.4A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- The connector features phosphor bronze contacts with 0.76 μm gold plating for excellent conductivity and durability.
- Housing is made of liquid crystal polymer (LCP) providing robust insulation and mechanical strength.
- Operational temperature range spans from -55°C to 125°C, ensuring reliability under diverse conditions.
- It supports a maximum current of 1.4 A and voltage rating up to 200 V suitable for various PCB electrical requirements.
- The surface mount type and straight orientation enable secure and space-efficient PCB connections.
- The 2-row design with an 0.8 mm row pitch enhances contact density for compact PCB layouts.
- The product mates with ERF8 series sockets, offering flexibility in modular board connections.
- Solder termination type facilitates reliable mounting on PCB pads during assembly.
Product Description
Samtec ERM8 Series Straight Surface PCB Header ERM8 is a high-performance 80-contact SMT connector featuring 0.8 mm pitch and 2-row shrouded construction designed for reliable board-to-board interconnections. Its phosphor bronze contacts are plated with 0.76 μm of gold to ensure high conductivity and resistance to wear in demanding electronic applications.
The housing material is black liquid crystal polymer (LCP), known for its excellent mechanical strength and insulating properties, making it suitable for high-speed and high-density PCB designs. The connector operates reliably in temperatures ranging from -55°C to 125°C, accommodating diverse environmental conditions found in industrial, telecommunications, computing, and consumer electronics sectors.
The ERM8 header supports a current rating of 1.4 A and voltage rating of 200 V, ensuring compatibility with various power and signal requirements. Its surface mount technology (SMT) style with straight orientation allows efficient PCB assembly and space-saving layouts. The product mates specifically with the ERF8 series sockets, providing a versatile solution for modular electronic designs.
This shrouded two-row connector with 0.8 mm pitch and row pitch offers dense contact arrangements, catering to modern compact devices. The solder termination provides secure, reliable mechanical and electrical connection to the PCB pads, optimizing assembly yields and durability.
Phosphor bronze contacts with gold plating for high conductivity and durability. Black liquid crystal polymer housing for strength and insulation. Temperature range from -55°C to 125°C for wide operating environments. Rated for 1.4 A current and 200 V voltage applications.
Surface mount and straight orientation for efficient PCB integration. Shrouded contact design with 2 rows and 0.8 mm pitch enhances density. Mates with ERF8 series sockets for versatile board-to-board solutions. Solder termination ensures reliable mounting during PCB assembly.
New product made in India, suitable for industrial and electronic component markets. Explore the extensive range of Samtec connectors on EnvMart for proven quality and reliability in electronic board design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 1.4 A.
This connector has a voltage rating of up to 200 V.
The operating temperature range for this model spans from -55°C to 125°C.
The PCB header uses a solder termination type, ensuring reliable mounting on PCB pads during assembly.
The ERM8 series header features 80 contacts.
The pitch size of the contacts in this connector is 0.8 mm.
The contacts are made of phosphor bronze with a 0.76 μm gold plating, and the housing is made of liquid crystal polymer (LCP).
This model supports a board-to-board connector system.
The orientation of this connector is straight, which facilitates efficient PCB assembly.
The ERM8 header mates specifically with ERF8 series sockets, providing flexibility in modular board connections.
This connector is manufactured in India.
The design configuration of this PCB header is shrouded with 2 rows, enhancing contact density for compact layouts.
