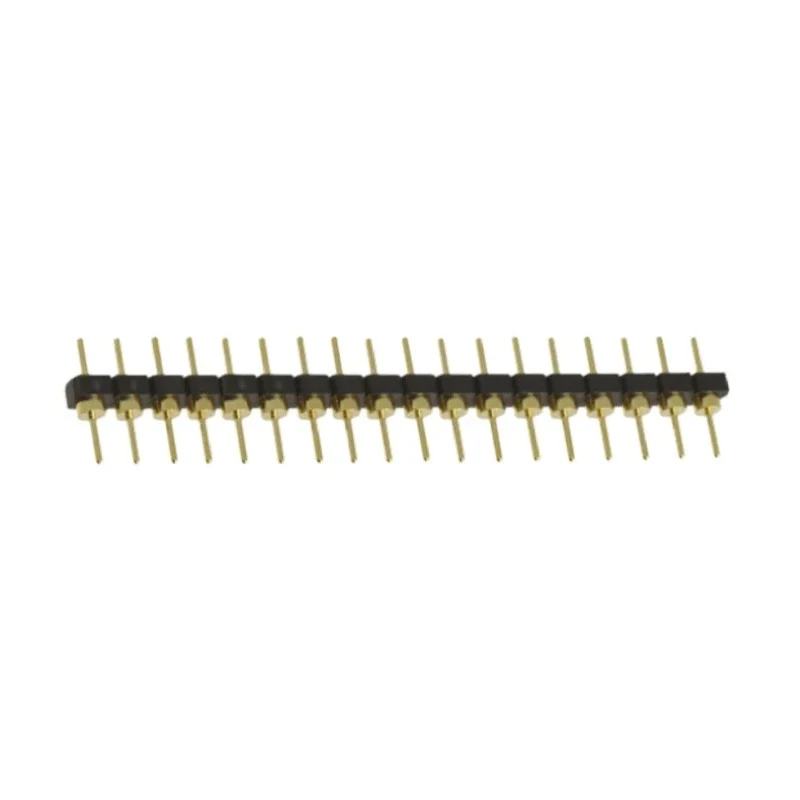

Samtec BBL Series Straight Through Hole Pin Header 18 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-118-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-118-G-E |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.67mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- The header features a low profile design providing 3.89 mm board spacing when mated.
- The body is made from black glass-filled polyester for durability.
- Contacts are brass with 0.51 μm gold plating for reliable conductivity.
- Supports a current rating of 1 A and a temperature range of -55 to +125°C.
- Termination type is solder with male contact gender and a tail pin length of 3.18 mm.
- Compatible with Samtec SL and SS series low profile socket strips.
- The component has a single row configuration with a 2.54 mm row pitch.
Product Description
Samtec BBL-118-G-E is a high-quality straight through hole pin header belonging to the BBL series designed specifically for board-to-board connector applications in electronic assemblies.
This pin header features 18 contacts arranged in a single row with a pitch of 2.54 mm, allowing precise, reliable connections in circuits. The unshrouded design provides easy access for soldering and testing.
The housing of this component is fabricated from black glass-filled polyester, offering strong mechanical support and flame resistance. Contacts are crafted from brass and coated with 0.51 μm of gold plating for excellent electrical performance and corrosion resistance.
It supports a current rating of 1 ampere and operates reliably in temperatures from minus 55 degrees Celsius up to 125 degrees Celsius, making it suitable for diverse industrial, laboratory, and commercial electronic applications.
Key mechanical dimensions include a tail pin length of 3.18 mm and mating pin length of 2.67 mm. This header mates seamlessly with Samtec SL-series low profile socket strips and SS series socket strips, providing flexible modular connector system solutions.
The header’s compact low profile design achieves a 3.89 mm board spacing when mated, optimizing electronic density. Robust brass contacts ensure long lasting conductivity and mechanical strength. Unshrouded configuration enables easy inspection and repair.
Installation via through hole mount type ensures solid mechanical fixation. Ideal for industrial electronics, prototyping, communications equipment manufacturing, and repair use cases. The temperature and current ratings make it suitable for a wide range of controlled environments.
Versatile compatibility with other Samtec socket series increases flexibility in system design. Choose the Samtec BBL-118-G-E for your high precision PCB connector needs in electronics manufacturing and design. Explore more products in the PCB Headers category at EnvMart for additional connector solutions to enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, allowing for precise connections in electronic circuits.
This model features 18 contacts arranged in a single row configuration.
The Samtec BBL-118-G-E supports a current rating of 1 ampere.
It operates reliably within a temperature range of -55 to +125 degrees Celsius.
The contacts are made from brass and are coated with 0.51 μm of gold plating for improved electrical performance and corrosion resistance.
This pin header uses a solder termination type with male contact gender.
The tail pin length is 3.18 mm, allowing for effective mounting in PCBs.
It is compatible with Samtec SL series and SS series low profile socket strips.
This model features a through hole mount type, ensuring solid mechanical fixation.
The orientation of this pin header is straight, facilitating easy access for soldering.
The country of origin for this pin header is India.
It features a low profile design that provides 3.89 mm board spacing when mated, optimizing electronic density.
