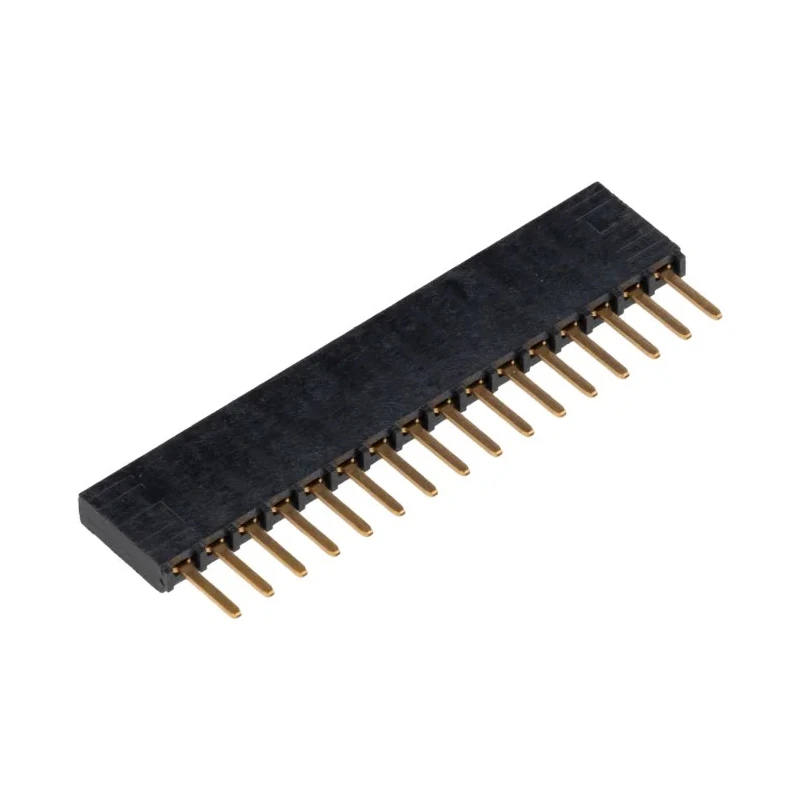

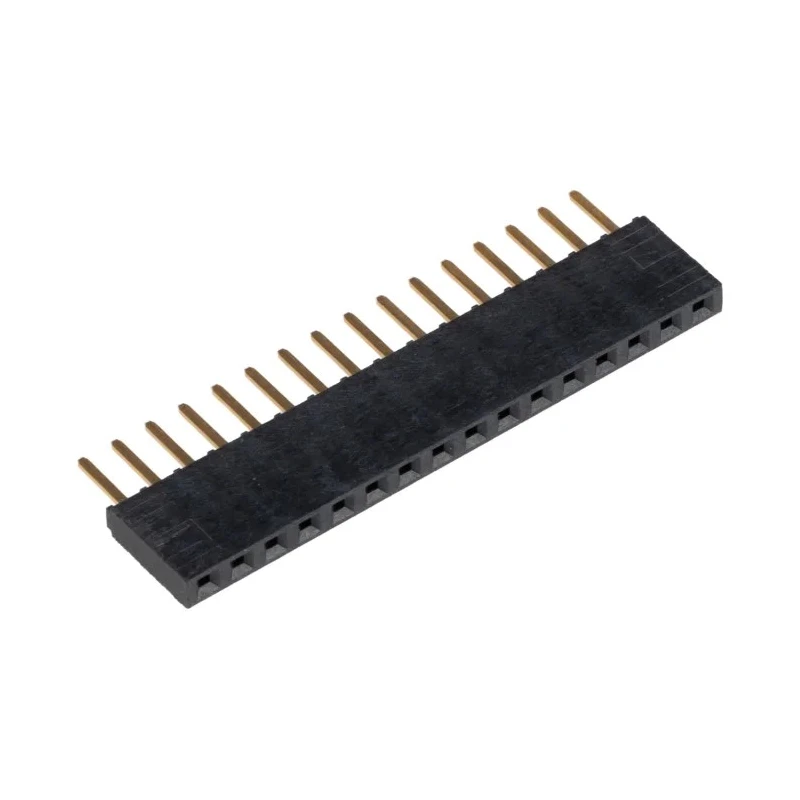

Samtec SSW Series Straight Through Hole PCB Socket, 16-Contact, 1 Row, 2.54 mm Pitch, Solder Termination SSW-116-02-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-116-02-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features straight orientation for optimal alignment and connection.
- Constructed with bronze contact material for excellent conductivity.
- Through hole mounting ensures secure PCB attachment.
- Supports a voltage rating of 550V for safe electronic operation.
- Single row configuration with 16 contacts enables versatile connectivity.
- Gold over tin plating provides corrosion resistance and durability.
- Housing made of liquid crystal polymer for robust insulation.
- Operates reliably between -55°C and 125°C.
Product Description
Samtec SSW-116-02-G-S is a straight through hole PCB socket featuring 16 contacts arranged in a single row with a 2.54 mm pitch. Its construction incorporates bronze contacts with gold over tin plating for enhanced conductivity and corrosion resistance, while the housing uses liquid crystal polymer providing strong insulation.
The through hole mount type ensures a solid mechanical attachment to PCB boards, suitable for a range of electronic applications including industrial equipment, laboratory instruments, and manufacturing devices where reliable electrical connections are critical. Operating temperatures range from -55°C minimum to 125°C maximum, supporting various environmental conditions.
This socket series offers straight orientation aiding the alignment and assembly process during manufacturing. Its 16 contact configuration in a single row allows versatile use in secure board-to-board electronic interfacing.
Straight orientation for easy alignment and connection. Bronze contact material ensures excellent conductivity. Through hole mounting provides secure attachment to PCB. 2.54 mm pitch allows precise placement of components.
16 contacts ensure reliable connectivity for multiple circuits. Gold over tin contact plating enhances durability and corrosion resistance. Housing material is liquid crystal polymer for insulation. Voltage rating of 550V meets demanding power requirements.
Operating temperature range of -55°C to 125°C supports harsh environments. Designed for board-to-board connector systems in industrial and electronic devices.
This Samtec PCB socket is ideal for use in electronics manufacturing, industrial power systems, and laboratory instrumentation requiring robust and reliable PCB connections. Selecting this component ensures long-lasting performance and electrical safety in intricate board-to-board applications. Browse EnvMart for additional Samtec PCB Sockets and related electronic component products to complete your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 550V, making it suitable for demanding power requirements.
It operates reliably between -55°C and 125°C, supporting various environmental conditions.
This unit features 16 contacts arranged in a single row, allowing versatile connectivity for multiple circuits.
It uses solder termination, ensuring a secure connection to the PCB.
The contact pitch is 2.54 mm, which allows for precise placement of components on the PCB.
The housing is made of liquid crystal polymer, providing strong insulation for the electrical connections.
It has a current rating of 6.9A, suitable for a variety of electronic applications.
This model employs through hole mounting, ensuring a secure mechanical attachment to the PCB.
The contacts are constructed from bronze, which enhances conductivity and reliability.
The contacts feature gold over tin plating, which provides corrosion resistance and durability.
It is designed for board-to-board connector systems, making it suitable for various electronic applications.
This PCB socket is manufactured in India.
