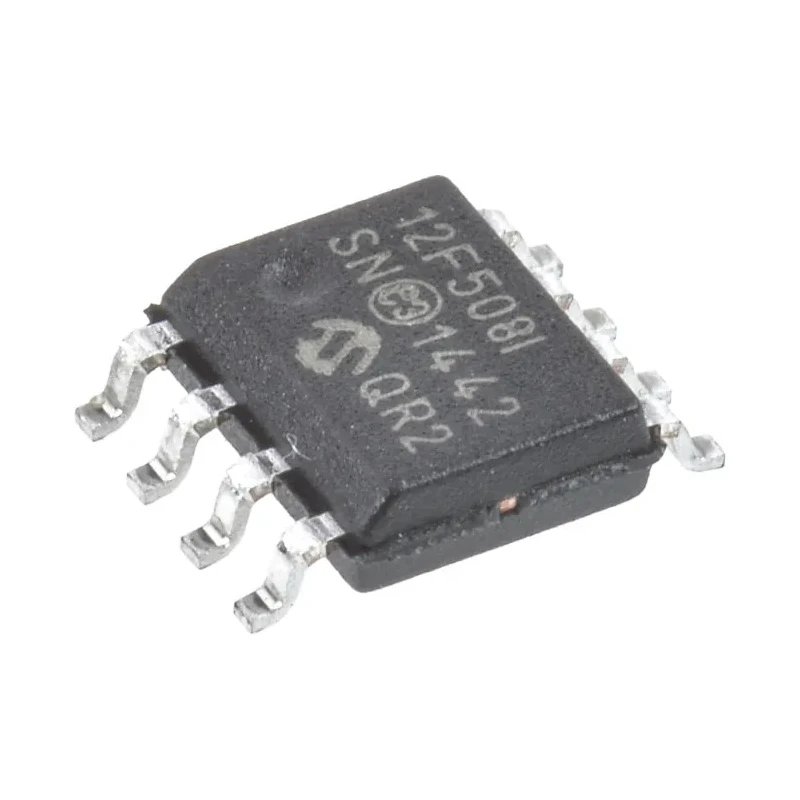

Microchip 8-Bit PIC12 Microcontroller 4 MHz 0.75kB FLASH 8-Pin SOIC PIC12F508-I/SN

Microchip PIC12F508-I/SN is an 8-Bit PIC microcontroller designed for embedded control and automation applications. Operating at a maximum clock frequency of 4 MHz, this device provides a compact and efficient solution with 0.75 kB of FLASH program memory and 22 programmable I/O pins.

The microcontroller utilizes a PIC device core with an 8-bit data bus architecture, enabling precise and efficient processing suitable for a variety of industrial and commercial electronic designs. Its small footprint is facilitated by the 8-pin SOIC surface-mount package, measuring 4.9 mm length, 3.9 mm width, and 1.5 mm height, fitting well in space-constrained assemblies.

This model features an internal RC oscillator with ±1% accuracy, supporting timings and clock stability critical to embedded control. The device supports in-circuit serial programming (ICSP) and in-circuit debugging (ICD), streamlining firmware development and deployment.

Operating voltage ranges from 2 V to 5.5 V, ensuring compatibility with various power supply scenarios. The sanctioned operating temperature range from -40°C to +85°C makes it suitable for industrial, automotive, and outdoor applications requiring temperature resilience.

Additional features include one 8-bit timer and a watchdog timer (WDT) to safeguard against operational faults and ensure system stability. The SPI interface provides a robust communication protocol for connecting external components and sensors, enhancing system flexibility.

This microcontroller complies with the ISO/TS 16949 automotive quality standard, supporting usage in automotive electronic systems demanding high reliability and consistency. The microcontroller operates at a maximum clock frequency of 4 MHz.

It features 0.75 kB of flash program memory for user code storage. Includes 22 programmable input/output pins providing versatile interfacing options. Built on a PIC device core with an 8-bit data bus width to support common embedded systems.

Compact 8-pin SOIC surface-mount package measuring 4.9 x 3.9 x 1.5 mm for space-constrained designs. Program memory type is non-volatile FLASH enabling in-circuit programming and debugging. Wide operating voltage range from 2 V to 5.5 V allows use in varying power environments.

Designed for robust operation between -40°C and 85°C ambient temperature. Integrated 8-bit timer and watchdog timer enhance reliability and timing control. Supports SPI interface for efficient serial communication with peripherals.

Complies with automotive standard ISO/TS 16949 for quality assurance in automotive applications.

This 8-bit microcontroller is ideal for industrial automation, embedded control systems, automotive electronics, consumer electronics, and communication devices requiring compact, efficient, and reliable processing. Using Microchip's PIC architecture ensures easy integration with existing design tools and programming environments. Explore the Microcontroller category on EnvMart for more such advanced electronics components and development tools.
