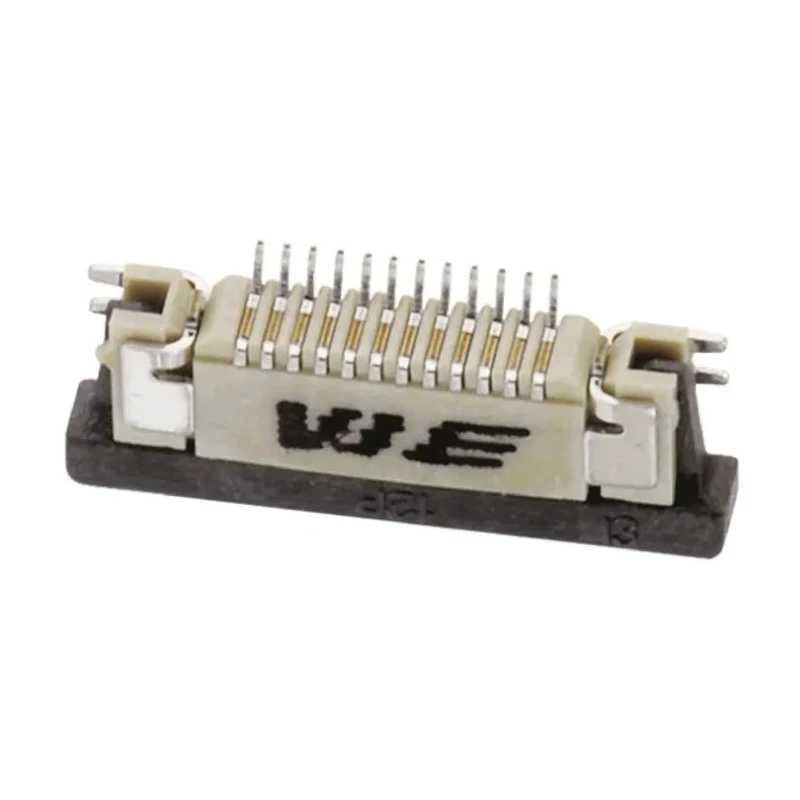

Wurth Elektronik 0.5 mm Pitch 8 Way Straight Male FPC Connector Solder Pin 68710814522

Wurth Elektronik 68710814522 0.5 mm Pitch 8 Way Straight Male FPC Connector is a high-precision electronic component designed for wire-to-board connections in compact devices. This surface mount connector features a Zero Insertion Force (ZIF) mechanism, facilitating easy assembly and reducing wear on cables. With a pitch of 0.5 mm and 8 male contacts, it ensures reliable and stable signal transmission in demanding environments.

The connector’s contacts consist of phosphor bronze with tin over nickel plating, providing excellent conductivity and corrosion resistance. The housing is crafted from liquid crystal polymer, offering durability and a low profile suitable for space-constrained applications. It supports a voltage of up to 50 V and a current rating of 500 mA, making it ideal for low-power electronic circuitry.

Operating temperature ranges from -25°C to 85°C, allowing usage in a variety of industrial, commercial, and consumer electronics settings. Its locking mechanism guarantees secure connections, while the ability to withstand up to 25 mating cycles ensures longevity and reusability in assembly and maintenance processes.

This 687 series connector is optimized for applications requiring precise and compact FPC connections, widely used in industries such as telecommunications, automotive electronics, manufacturing automation, and consumer electronics. Its straight orientation and bottom contact position streamline integration onto printed circuit boards while maintaining mechanical reliability.

8 contact points with 0.5 mm pitch for compact connections. Phosphor bronze contact material with tin over nickel plating for durability and conductivity. Zero Insertion Force solder pin termination enables easy and repeatable connector mating.

Operating voltage up to 50 V and current handling of 500 mA suitable for low-power signals. Robust liquid crystal polymer housing designed for industrial-grade performance. Temperature range from -25°C to 85°C supports versatile environmental conditions.

Locking mechanism ensures secure, vibration-resistant connections. Single row design in a straight configuration aids easy PCB assembly. Explore other Wurth Elektronik FPC Connectors and components in the electronics category for reliable interconnect solutions.
