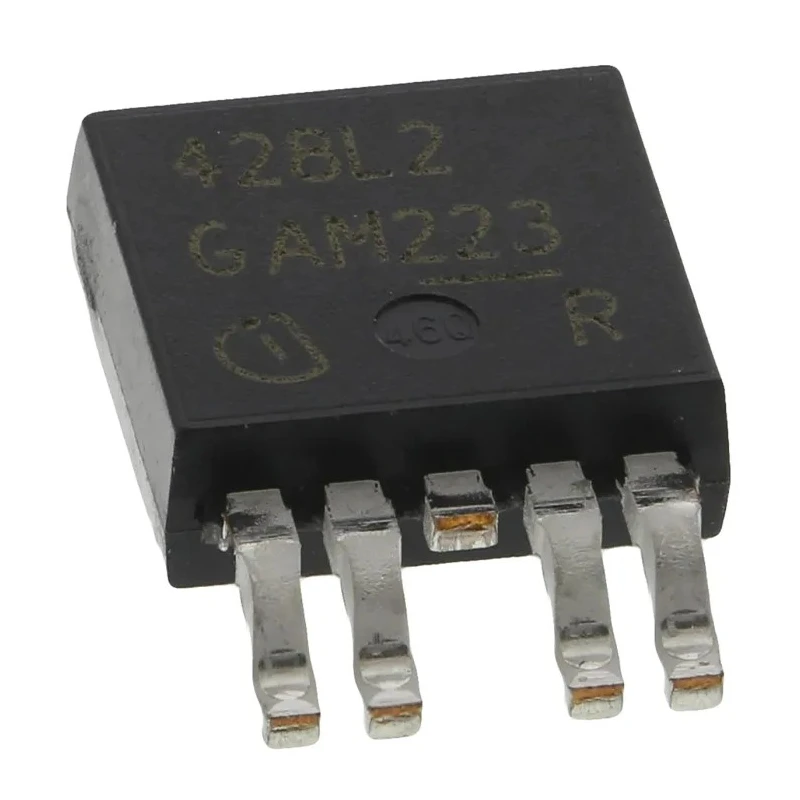

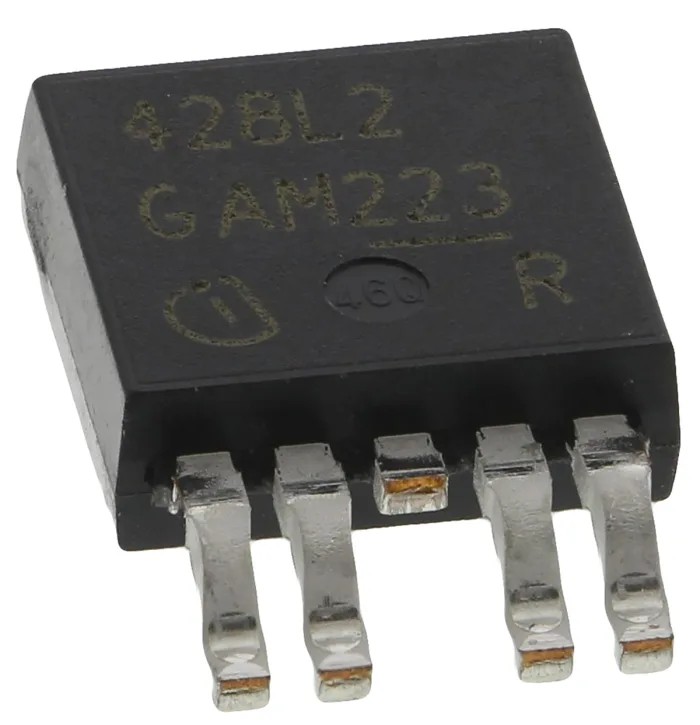

Infineon High Side Power Switch IC 5-Pin TO-252 Package 75W Power Rating 5.8A Operating Current BTS428L2ATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.3mm |
| Length | 6.5mm |
| Model | BTS428L2ATMA1 |
| Width | 6.22mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BTS428L2 |
| Power Rating | 75W |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 5.8A |
| Number of outputs | 5 |
| Pin Count | 5 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 41V |
| Minimum Supply Voltage | 4.75V |
| Switch On Resistance RdsOn | 120mΩ |
Key Features
- Supports a maximum supply voltage of 41V for robust transient conditions.
- Operates from a minimum supply voltage of 4.75V compatible with vehicle rails.
- 120mΩ switch on resistance to minimize conduction losses and heat.
- 5.8A operating current to reliably drive moderate automotive loads.
- Power rating of 75W suitable for aggregated channel dissipation.
- Surface mount TO-252 package saves circuit board space.
- Operating temperature range from -40°C to 150°C for harsh automotive environments.
- Single input controls all five outputs simplifying command interfaces.
Product Description
Infineon BTS428L2ATMA1 high side power switch IC is a 5-pin surface-mount semiconductor device designed to provide controlled switching of multiple automotive loads from a single input. Featuring a TO-252 package type, it supports a maximum supply voltage of 41V, minimum supply voltage of 4.75V, and a power rating of 75W, enabling the switch to handle significant loads while maintaining thermal and electrical robustness.
This device offers a low switch on resistance (Rds(on)) of 120mΩ which reduces conduction losses and heat generation, ensuring efficient operation. It supports a continuous operating current of 5.8A, which is ideal for driving moderate loads like lighting, auxiliary systems, fans, and pumps typically found in automotive environments.
The device operates reliably over a wide ambient temperature range from -40°C to 150°C, making it suitable for the extreme conditions encountered in engine bays and cold start scenarios. Its single input controls all five outputs, simplifying multiplexed load management and reducing wiring complexity in vehicle body control modules and electronic control units.
The TO-252 package allows for compact surface-mount assembly on vehicle PCBs, optimizing space while providing robust electrical performance. This high side switch topology connects loads to the positive supply, simplifying integration with ground-referenced sensors and load wiring.
Applications include centralized body control, lighting control, auxiliary automotive systems, and control of fans and pumps. This component complies with the Automotive Electronics Council (AEC) standard, ensuring automotive-grade reliability.
Supports multiplexed control of five outputs from a single input. Operates with supply voltage from 4.75 V up to 41 V. Low on resistance of 120 mΩ reduces loss and temperature rise. Power dissipation rating of 75 W for reliable operation under load.
Wide operating temperature range from -40 °C to 150 °C. Compact 5-pin TO-252 package for surface mounting. Designed for automotive applications including lighting and auxiliary loads. Single input simplifies system design and wiring complexity.
Explore more Power Switch ICs and semiconductor solutions at EnvMart to support automotive and industrial applications requiring efficiency and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Infineon BTS428L2ATMA1 is 41V, allowing it to handle robust transient conditions.
This model supports an operating current of 5.8A, which is suitable for driving moderate automotive loads.
The power rating of this power switch IC is 75W, making it capable of handling significant loads while maintaining performance.
The switch on resistance (Rds(on)) for this device is 120mΩ, which helps to minimize conduction losses and heat generation.
This model operates within a temperature range of -40°C to 150°C, suitable for harsh automotive environments.
The BTS428L2ATMA1 is designed to control five outputs from a single input, simplifying load management.
This power switch IC is housed in a compact TO-252 package, which is suitable for surface mounting.
The dimensions of this model are 2.3mm in height and 6.22mm in width.
This power switch IC complies with the Automotive Electronics Council (AEC) standard, ensuring automotive-grade reliability.
The minimum supply voltage for the BTS428L2ATMA1 is 4.75V, making it compatible with typical vehicle rails.
This model is suitable for applications including centralized body control, lighting control, and auxiliary automotive systems.
The single input controls all five outputs, which simplifies command interfaces and reduces wiring complexity in vehicle systems.
