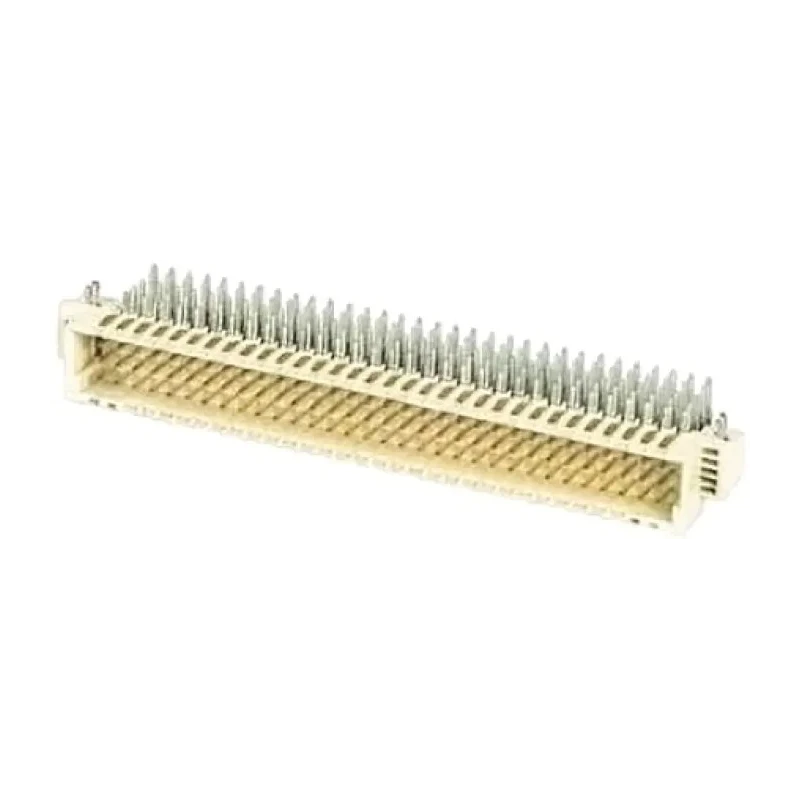

HARTING DIN 41612 Connector 160 Contacts 5 Row Male Right Angle Through Hole Shrouded Header Solder Termination 02011602102
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | har-bus 64 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Shrouded Header |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Palladium Nickel over Nickel |
| Number of Contacts | 160 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Features a 2.54 mm pitch for precise PCB interfacing.
- Constructed with copper alloy contacts plated with gold over palladium nickel and nickel for enhanced conductivity and durability.
- Rated for a current of 1A at 70°C with a maximum contact resistance of 30 mΩ.
- Housing is made from liquid crystal polymer to withstand harsh industrial environments.
- Operating temperature range from -55°C to 125°C, suitable for extreme conditions.
- Right angle male connector suitable for high-speed industrial computing and control applications.
- Designed for reliable press-in technology and PCI applications.
- Manufactured in Germany ensuring high-quality standards.
Product Description
HARTING 02011602102 DIN 41612 Connector is a high-performance 160 contact, 5 row, right angle male connector designed for advanced industrial and electronic applications. It features a 2.54 mm pitch and through hole mounting with solder termination, which ensures a robust and secure connection on printed circuit boards.
The connector's copper alloy contacts are plated with gold over palladium nickel and nickel, providing excellent electrical conductivity, corrosion resistance, and durability. The housing material is liquid crystal polymer, chosen for its mechanical strength and resistance to high temperatures.
Rated to carry a current of 1 ampere at 70°C with a maximum contact resistance of 30 milliohms, this connector operates reliably in environments ranging from -55°C to 125°C. Its right angle design suits space-constrained PCB layouts and enhances assembly flexibility.
Primarily used in control and industrial computing systems, including PCI-based applications, this connector supports high-speed data transmission needs and is designed for press-in technology installation methods.
Manufactured in Germany, the 02011602102 model from HARTING exemplifies quality and durability compliant with demanding industrial standards, serving as a vital component in backplane and rack connectors.
Features a 2.54 mm pitch for precise PCB interfacing. Constructed with copper alloy contacts plated with gold over palladium nickel and nickel for enhanced conductivity and durability. Rated for a current of 1A at 70°C with a maximum contact resistance of 30 mΩ.
Housing is made from liquid crystal polymer to withstand harsh industrial environments. Operating temperature range from -55°C to 125°C, suitable for extreme conditions. Right angle male connector suitable for high-speed industrial computing and control applications.
Designed for reliable press-in technology and PCI applications. Manufactured in Germany ensuring high-quality standards. Explore more DIN 41612 Connectors and related electronic components in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.54 mm, which is suitable for precise PCB interfacing.
It is rated for a current of 1 ampere at 70°C.
The contacts are made of copper alloy and are plated with gold over palladium nickel and nickel for enhanced conductivity and corrosion resistance.
The maximum contact resistance is 30 milliohms.
It operates within a temperature range of -55°C to 125°C, making it suitable for extreme conditions.
This model uses through hole mounting with solder termination.
It has a total of 160 contacts arranged in 5 rows.
The housing is made from liquid crystal polymer, which provides mechanical strength and high temperature resistance.
It is primarily used in control and industrial computing systems, including PCI-based applications.
This connector has a right angle orientation, which is beneficial for space-constrained PCB layouts.
It is manufactured in Germany, ensuring high-quality standards.
This model belongs to the har-bus 64 series.
