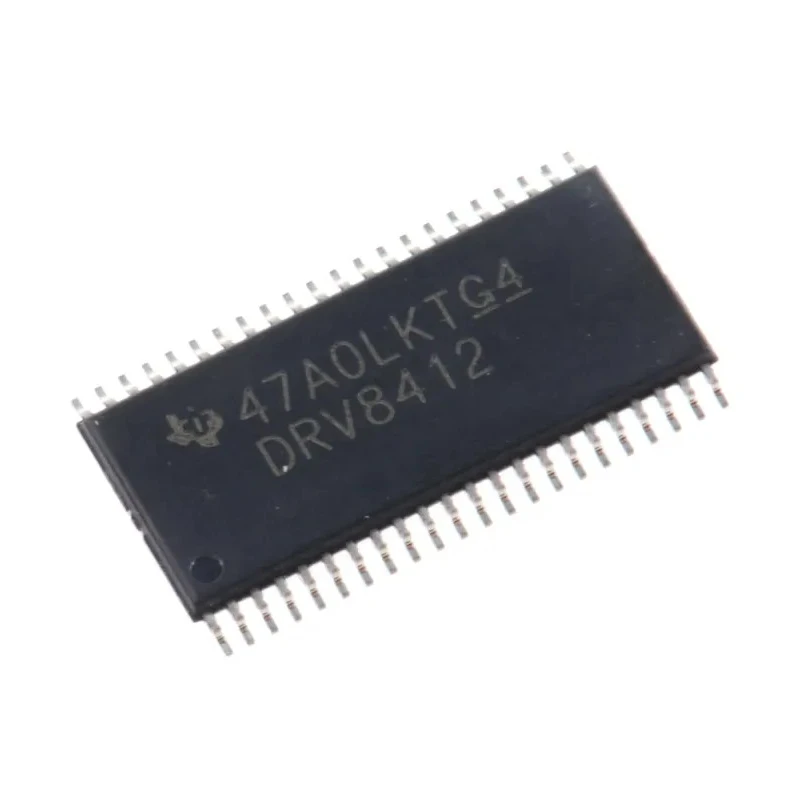

Texas Instruments Brushed DC Motor Driver IC Dual Configuration 52 V 6 A 44-Pin HTSSOP DRV8412DDW

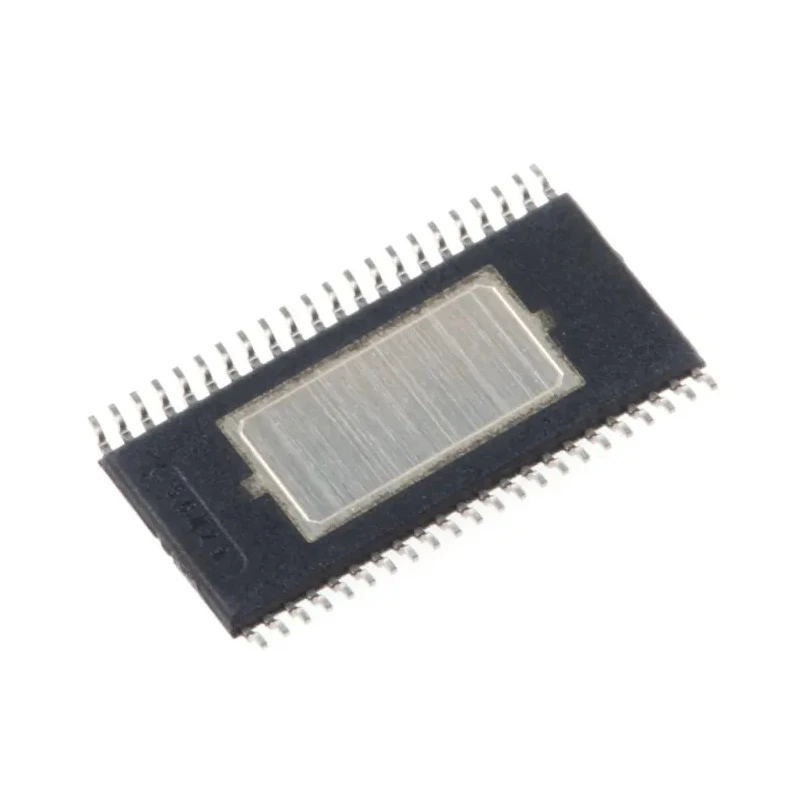

Texas Instruments DRV8412DDW is a high-performance motor driver IC designed specifically for brushed DC motors. It features dual configuration with a maximum IGBT collector current of 6 A and a maximum collector emitter voltage of 52 V. The device is housed in a compact 44-pin HTSSOP surface mount package with dimensions 14.1 mm length, 6.2 mm width, and 1.05 mm height.

This motor driver IC operates with a supply voltage range from 10.8 V to 13.2 V and a typical switching frequency of 500 kHz, making it suitable for efficient and precise motor control in various industrial, automotive, and robotics applications. The device supports a maximum output current of 16 A while maintaining low supply current consumption of 12 mA, thereby optimizing power efficiency.

The DRV8412DDW operates reliably within a temperature range of -40°C to 85°C, ensuring stability in harsh operating environments. As an advanced power management integrated circuit, it is ideal for applications requiring dual brushed DC motor drivers with integrated FETs for enhanced performance.

Though it does not carry specific automotive standards or approvals, its robust electrical characteristics make it suitable for embedded motor control systems in laboratory equipment, manufacturing, robotics, and power electronics. This device is important for designers seeking to implement efficient motor control solutions with a high degree of reliability and compact design.

Supports brushed DC motors with dual configurations for versatile motor control. Maximum IGBT collector current of 6 A and voltage rating of 52 V. Surface mount HTSSOP package with 44 pins facilitating PCB integration. Wide operating temperature range from -40°C to 85°C for industrial applications.

Typical switching frequency of 500 kHz for optimized motor efficiency. Low supply current of only 12 mA reduces power consumption. Length of 14.1 mm and width of 6.2 mm make it compact and space-saving. Ideal for use in industrial, automotive, robotics, and power management systems.

Supports high output current up to 16 A suitable for demanding motor loads. Provides reliable dual motor driving solutions in a single IC package. Explore high-quality Motor Driver ICs and advanced electronic components at EnvMart for superior power management and motor control applications.
