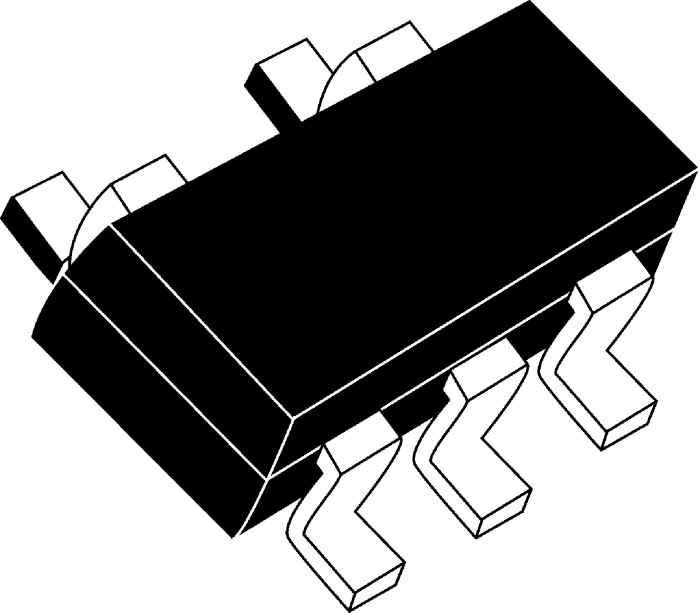

DiodesZetex Operational Amplifier 1 MHz 5-Pin SOT-25 2.7-5.5V LMV321WG-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | LMV321WG-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | LMV321/324/358 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 50 nA |
Key Features
- This operational amplifier provides general-purpose signal amplification with 1 MHz GBP.
- Compact SOT-25 surface mount package with 5 pins for efficient PCB integration.
- Wide operating voltage range from 2.7 V minimum to 5.5 V maximum.
- Low input bias current of 10 nA enables accurate low current applications.
- Input offset voltage of 7 mV ensures precision signal processing.
- Slew rate of 1 V/μs for moderate speed response in various circuits.
- Suitable for industrial, laboratory, and electronics manufacturing applications.
- Operates reliably within -40°C to 85°C ambient temperature range.
Product Description
DiodesZetex LMV321WG-7 is a single channel operational amplifier designed for general purpose amplification applications in electronic circuits. It features a 1 MHz gain bandwidth product making it suitable for medium frequency analog signal conditioning. The amplifier comes in a compact 5-pin SOT-25 surface mount package allowing efficient board space utilization.
This device operates over a wide supply voltage range from 2.7 V to 5.5 V, making it compatible with both low voltage battery-powered and higher supply circuits. Its low input bias current of 10 nA and input offset voltage of 7 mV enable precision analog measurements and signal amplification with minimal error.
The LMV321WG-7’s slew rate of 1 V/μs ensures it can handle moderate speed signal transitions efficiently. It functions reliably in ambient temperatures ranging from -40°C to 85°C, fitting industrial and commercial environment requirements.
This operational amplifier is ideal for use in industrial automation, data acquisition systems, medical instrumentation, and general electronic test equipment. Its robust semiconductor technology facilitates stable performance in demanding applications.
This operational amplifier provides general-purpose signal amplification with 1 MHz GBP. Compact SOT-25 surface mount package with 5 pins for efficient PCB integration. Wide operating voltage range from 2.7 V minimum to 5.5 V maximum.
Low input bias current of 10 nA enables accurate low current applications. Input offset voltage of 7 mV ensures precision signal processing. Slew rate of 1 V/μs for moderate speed response in various circuits. Suitable for industrial, laboratory, and electronics manufacturing applications.
Operates reliably within -40°C to 85°C ambient temperature range. Single channel design simplifies integration in compact systems. Manufactured in China adhering to quality standards for semiconductor components. Explore more Operational Amplifiers and semiconductor components at EnvMart for your industrial and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, making it suitable for medium frequency analog signal conditioning.
It operates over a wide supply voltage range from 2.7 V to 5.5 V, allowing compatibility with both low voltage and higher supply circuits.
The input bias current is 10 nA, which enables accurate low current applications.
The input offset voltage is 7 mV, ensuring precision in signal processing.
The slew rate is 1 V/μs, which allows it to handle moderate speed signal transitions efficiently.
The dimensions are 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
It comes in a compact SOT-25 surface mount package with 5 pins for efficient PCB integration.
It operates reliably within an ambient temperature range of -40°C to 85°C.
This model features a single channel design, simplifying integration into compact systems.
It is suitable for industrial automation, data acquisition systems, medical instrumentation, and general electronic test equipment.
The input offset current is 50 nA, which is relevant for precision applications.
This operational amplifier is part of the LMV321/324/358 series.
