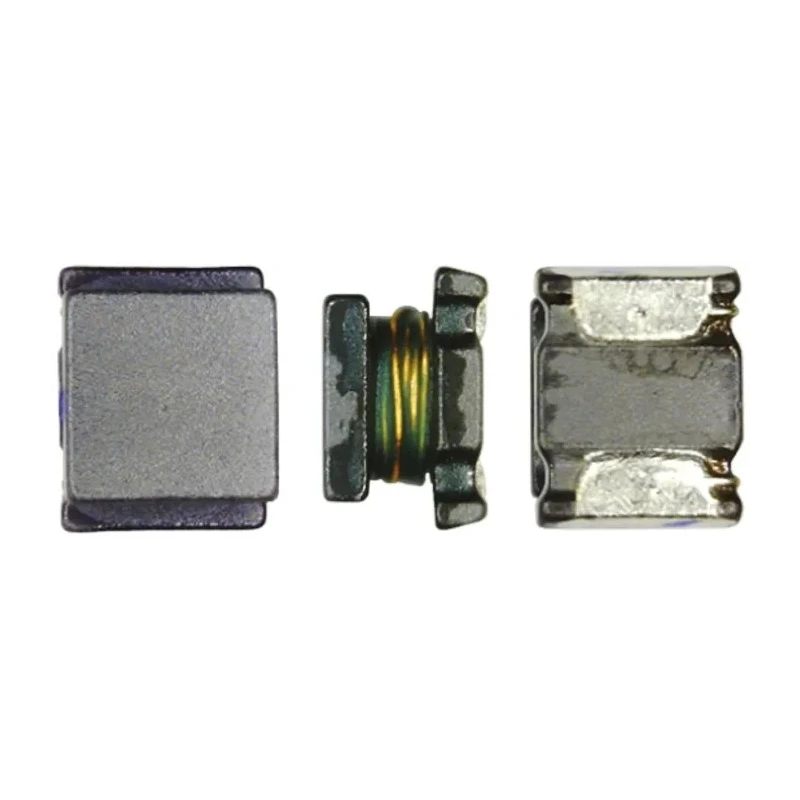

Murata Wirewound Surface Mount Inductor with Ferrite Core 1μH ±20% 445mA Idc 1210 Package LQH32MN1R0M23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN1R0M23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 445mA |
| Maximum DC Resistance | 500mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 100MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1210 package size suitable for surface mount assembly.
- Ferrite core construction for high efficiency and low loss.
- Maximum DC resistance of 500mΩ ensuring minimal power dissipation.
- Operating temperature range from -40°C to 85°C for robust performance.
- Embossed tape packaging allowing automated reel insertion in manufacturing.
- RoHS compliant component for environmental safety.
- Maximum self-resonant frequency of 100MHz enabling high-frequency applications.
- Minimum quality factor of 20 for reliable signal integrity.
Product Description
Murata LQH32MN1R0M23L wirewound surface mount inductor with ferrite core is engineered for high performance electronic applications. It provides a nominal inductance of 1μH with a tolerance of ±20%, and supports a maximum DC current of 445mA. Packaged in a compact 1210 case, this inductor is optimized for PCB surface mounting using solder termination style.
The ferrite core construction combined with wirewound inductor technology ensures low DC resistance, measured at 500mΩ max, which minimizes energy losses during operations. It operates efficiently over a temperature range from -40°C to 85°C, suitable for industrial and commercial electronics. The component is moulded, enhancing durability and stability during circuit integration.
This inductor is supplied on embossed tape reels, making it compatible with automated pick-and-place assembly lines, improving manufacturing throughput and consistency. It is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
With a maximum self-resonant frequency of 100MHz and a minimum quality factor of 20, it is ideal for use in communication equipment, video electronics, audio devices, and mobile phones, where stable inductance and low signal loss are critical.
Compact 1210 package for efficient surface mounting. Ferrite core enhances magnetic performance. Low DC resistance reduces heat generation. Wide operating temperature range increases reliability. RoHS compliance ensures environmental safety.
Reel packaging supports automated manufacturing processes. High self-resonant frequency suitable for high-frequency circuits. Stable quality factor maintains signal integrity.
This Murata surface mount inductor is a reliable choice for industrial, laboratory, manufacturing, communication, and commercial electronics assembly. Browse the Electronics Components category on EnvMart for related inductors and passive components.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal inductance of 1μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 445mA.
It has a maximum DC resistance of 500mΩ, which helps minimize power dissipation.
The operating temperature range for this inductor is from -40°C to 85°C.
The maximum self-resonant frequency is 100MHz, making it suitable for high-frequency applications.
The minimum quality factor is 20, which helps maintain reliable signal integrity.
It features a ferrite core construction, which enhances its magnetic performance.
This inductor is supplied on embossed tape, allowing for automated pick-and-place assembly.
The dimensions of this model are 3.2mm in length, 2.5mm in depth, and 2mm in height.
It uses a solder termination style, optimized for PCB surface mounting.
Yes, this inductor is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
The country of origin for this inductor is Japan.
