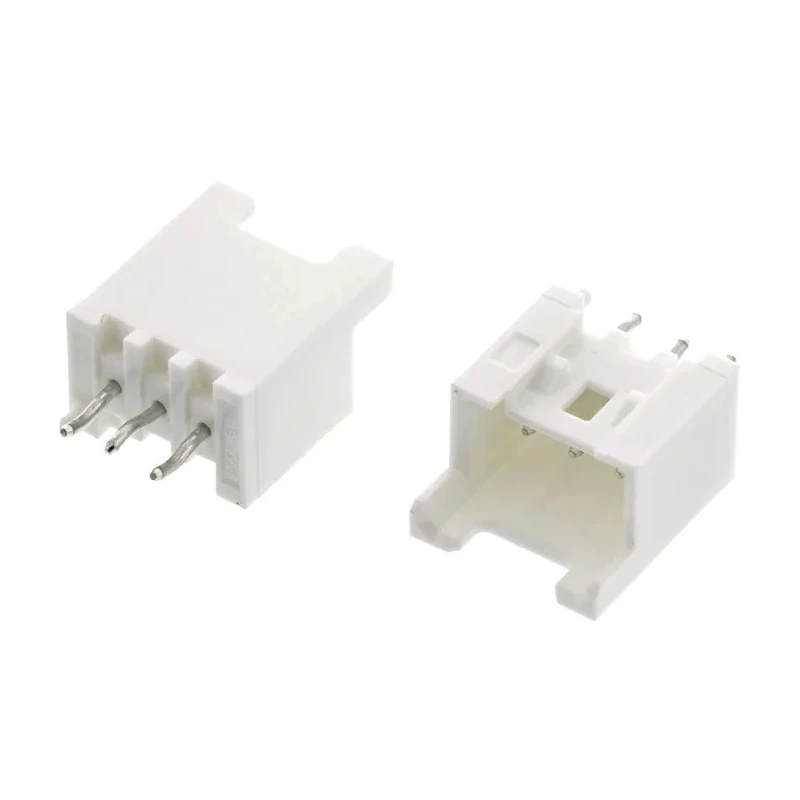

Molex Mini-Lock Series Straight Through Hole PCB Header 3 Contacts 2.5 mm Pitch 1 Row Shrouded 53375-0310
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | Mini-Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.4mm |
Key Features
- Designed for secure wire-to-board connection with Mini-Lock series housings.
- Features 3 male contacts with kinked PC tails for enhanced PCB retention.
- Current rating of 3A suitable for moderate power applications.
- Fabricated with polyester housing for durability and stability.
- Contact material is phosphor bronze with tin plating to ensure reliable conductivity.
- Mount type is through hole with solder termination for secure assembly.
- Operates within a temperature range from -40°C to 105°C.
- Pitch between contacts measures 2.5 mm for compact board layouts.
Product Description
Molex 53375-0310 Mini-Lock Series Straight Through Hole PCB Header is a high-quality connector designed for electronics and electrical applications, featuring 3 contacts arranged in a single row with a 2.5 mm pitch. This shrouded PCB header ensures proper alignment and reliable connection when used with Mini-Lock housings, optimizing assembly efficiency and durability.
The connector’s polyester housing offers excellent mechanical strength and thermal resistance, suitable for operating temperatures ranging from -40°C to 105°C. The phosphor bronze contact pins with tin plating deliver consistent electrical conductivity and corrosion resistance. The kinked PC tails provide secure retention on the printed circuit board, improving the connection reliability in various industrial and commercial electronics assemblies.
This PCB header supports a current rating of 3A and withstands voltages up to 250V, making it appropriate for a wide range of low to medium power electronics. Its straight orientation and through-hole mount type allows for easy soldering and effective mechanical stability on the PCB.
The product is manufactured in Korea, Republic Of, meeting rigorous manufacturing standards though it does not carry additional certifications. Its design caters to applications in industrial equipment, consumer electronics manufacturing, and repair tasks requiring stable wire-to-board interfacing solutions.
Designed for secure wire-to-board connection with Mini-Lock series housings. Features 3 male contacts with kinked PC tails for enhanced PCB retention. Current rating of 3A suitable for moderate power applications. Fabricated with polyester housing for durability and stability.
Contact material is phosphor bronze with tin plating to ensure reliable conductivity. Mount type is through hole with solder termination for secure assembly. Operates within a temperature range from -40°C to 105°C. Pitch between contacts measures 2.5 mm for compact board layouts.
This component is essential for electronics manufacturing, laboratory equipment assembly, and HVAC control panels, helping to ensure secure and reliable PCB connections. Browse Molex products and PCB Headers at EnvMart for comprehensive technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A, making it suitable for moderate power applications.
It can withstand voltages up to 250V, which is appropriate for a range of low to medium power electronics.
The pitch between the contacts measures 2.5 mm, allowing for compact board layouts.
The contacts are made of phosphor bronze with tin plating, ensuring reliable conductivity and corrosion resistance.
It features a through hole mount type with solder termination for secure assembly.
It operates within a temperature range from -40°C to 105°C, suitable for various environments.
This model features 3 male contacts arranged in a single row.
The orientation of this model is straight, which facilitates easy installation.
The housing is fabricated from polyester, providing durability and stability.
The tail pin length measures 3.4 mm, which aids in secure retention on the PCB.
This PCB header is manufactured in the Republic of Korea.
It is designed for use in industrial equipment, consumer electronics manufacturing, and repair tasks requiring stable wire-to-board connections.
