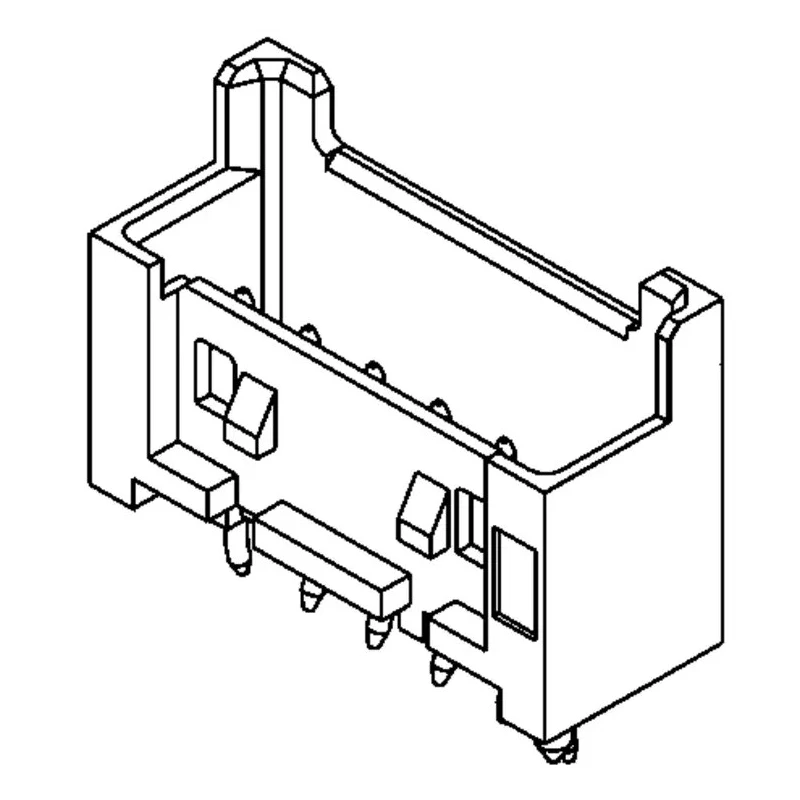

Molex Mini-Lock Series Straight Through Hole PCB Header, 10 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 53375-1010

Name: Molex Mini-Lock Series Straight Through Hole PCB Header, 10 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 53375-1010
Brand: Molex
SKU: 128473
Price: 1.08 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Korea
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Phosphor Bronze
Series	Mini-Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

The header supports a current rating of 3 amperes.
Its housing is made from durable polyester material.
The connector system is wire-to-board with through hole mount type.
The contact pins are made of phosphor bronze with tin plating for reliable conductivity.
Operating temperature ranges from -40°C to 105°C, supporting a voltage of up to 250 volts.
The tail pin length measures 3.4 mm for secure solder termination.
The header is male contact gender with solder termination type.
Designed to accept positive or friction lock housings for terminal protection and alignment.

Product Description

Molex 53375-1010 Mini-Lock Series Straight Through Hole PCB Header features a 10 contact, 2.5 mm pitch, and single-row shrouded design suitable for reliable wire-to-board connections. It operates at 3 amperes current and withstands voltages up to 250V, making it ideal for various electronics applications.

Constructed with polyester housing for electrical insulation and mechanical protection, the contacts are made from phosphor bronze and plated with tin to ensure consistent electrical performance and resistance to corrosion. The through-hole mounting method with a 3.4 mm tail pin length allows secure soldering to PCBs.

This header supports operation in a wide temperature range from minus 40°C to 105°C, ensuring durability under various thermal conditions. Its shrouded design facilitates proper alignment and increased protection for the terminals, compatible with Molex 51103 Series housings using positive or friction lock mechanisms.

Applications include industrial electronics, manufacturing equipment, laboratory instruments, and power distribution systems. The high walls of the Mini-Lock headers aid in guiding and safeguarding the terminals during assembly and operation.

The product is manufactured in the Republic of Korea, reflecting strict quality control and reliability in performance. The header comes as a 1-row PCB connector with 10 male contacts. Polyester housing provides robust insulation and mechanical strength.

Phosphor bronze contact material enhanced with tin plating ensures optimal conductivity. Termination is by solder through-hole mount for secure PCB attachment. Operates between -40°C and 105°C with a voltage rating of 250V.

Compatible with Mini-Lock wire housings for effective locking and protection. Tail pin length of 3.4 mm supports secure electrical and mechanical connection.
