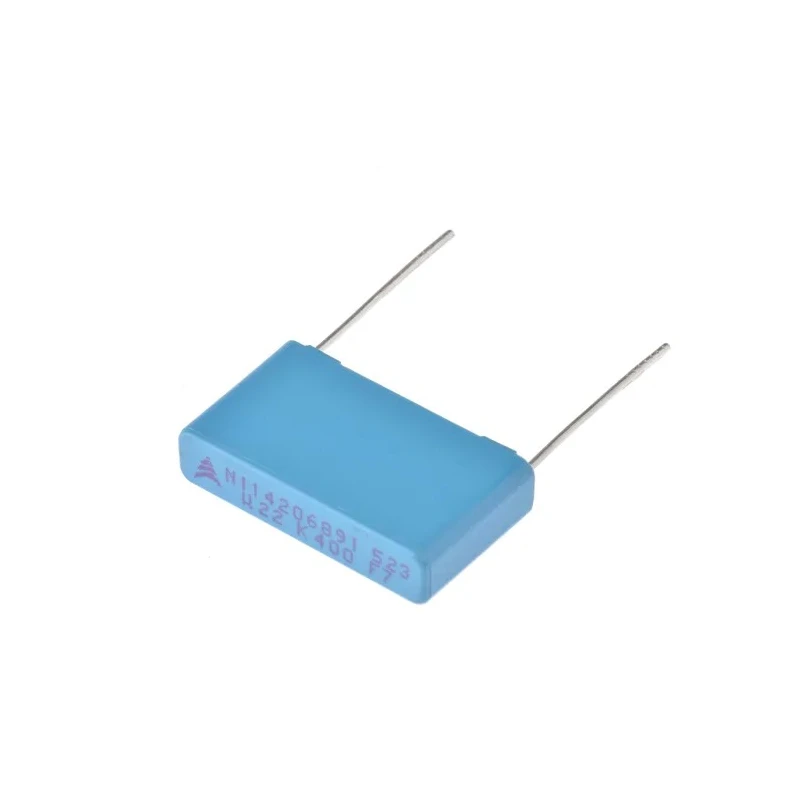

TDK B32523 Film Capacitor 220 nF 200V AC 400V DC Through Hole 2 Pin B32523Q6224K189
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 15mm |
| Length | 26.5mm |
| Model | B32523Q6224K189 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B32523 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 220nF |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Rated AC Voltage | 200V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Constructed for high pulse strength and reliability.
- Rated maximum operating temperature is 125°C.
- Capacitance value of 220 nF ensures effective blocking, coupling, and decoupling in circuits.
- Lead pitch spacing is 22.5mm with a lead diameter of 0.8mm for secure mounting.
- Compliant with RoHS and UL standards ensuring safety and environmental compliance.
- Suitable for automotive applications meeting AEC-Q200 Rev D standard.
- Compact size with dimensions 26.5mm length, 15mm height, and 6mm width.
- Designed for RFI filtering in automotive and electronic equipment.
Product Description
TDK B32523Q6224K189 Film Capacitor features a capacitance of 220 nF with through hole mounting and 2-pin configuration. It is rated for 200V AC and 400V DC voltages, making it suitable for a wide range of electronic applications requiring reliable capacitor performance.
The capacitor is compliant with RoHS and UL standards, ensuring environmentally responsible manufacturing and safety compliance. Its automotive qualification under AEC-Q200 Rev D standard makes it ideal for automotive systems requiring high pulse strength and reliability under harsh operating conditions.
This capacitor has a compact form factor with a lead pitch of 22.5mm, lead diameter of 0.8mm, and overall dimensions of 26.5mm length, 15mm height, and 6mm width. It operates safely at temperatures up to 125°C, making it suitable for demanding industrial and automotive environments.
Key applications include blocking, coupling, decoupling, and bypassing in electronic circuits, as well as radio frequency interference (RFI) filtering especially relevant for automotive electronics and other electronic equipment.
High pulse strength for durability in demanding applications. Consistent high contact reliability in through-hole PCB mounts. Environmental and safety compliance through RoHS and UL certifications. Automotive standard AEC-Q200 compliance ensures quality and longevity.
Compact size fits restricted PCB layouts and electronic assemblies. Wide temperature rating up to 125°C for industrial and automotive use. Capacitance and voltage ratings suitable for coupling, blocking, and filtering applications.
Standard 2-pin through-hole configuration eases PCB mounting and replacement.
This TDK film capacitor is an excellent choice for engineers and designers requiring a trusted, high-quality passive electronic component for industrial, automotive, and manufacturing use. Browse more Film Capacitors and electronic components in the EnvMart catalog for comprehensive sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220 nF, making it suitable for blocking, coupling, and decoupling applications in electronic circuits.
It is rated for a maximum AC voltage of 200V and a maximum DC voltage of 400V.
The maximum operating temperature for this unit is 125°C, allowing it to perform in demanding industrial and automotive environments.
The lead pitch spacing is 22.5mm and the lead diameter is 0.8mm, ensuring secure mounting on PCBs.
Yes, it is compliant with RoHS and UL standards, ensuring environmental responsibility and safety compliance.
This model meets the AEC-Q200 Rev D standard, making it suitable for automotive applications requiring high reliability.
The dimensions are 26.5mm in length, 15mm in height, and 6mm in width, allowing for compact integration in electronic assemblies.
This capacitor features a pin count of 2, designed for through-hole mounting.
It is suitable for applications such as blocking, coupling, decoupling, and RFI filtering, particularly in automotive electronics.
This model uses through-hole mounting, which facilitates easy installation and replacement on PCBs.
This capacitor belongs to the B32523 series, which includes various models designed for similar applications.
The country of origin for this capacitor is India, indicating its manufacturing location.
