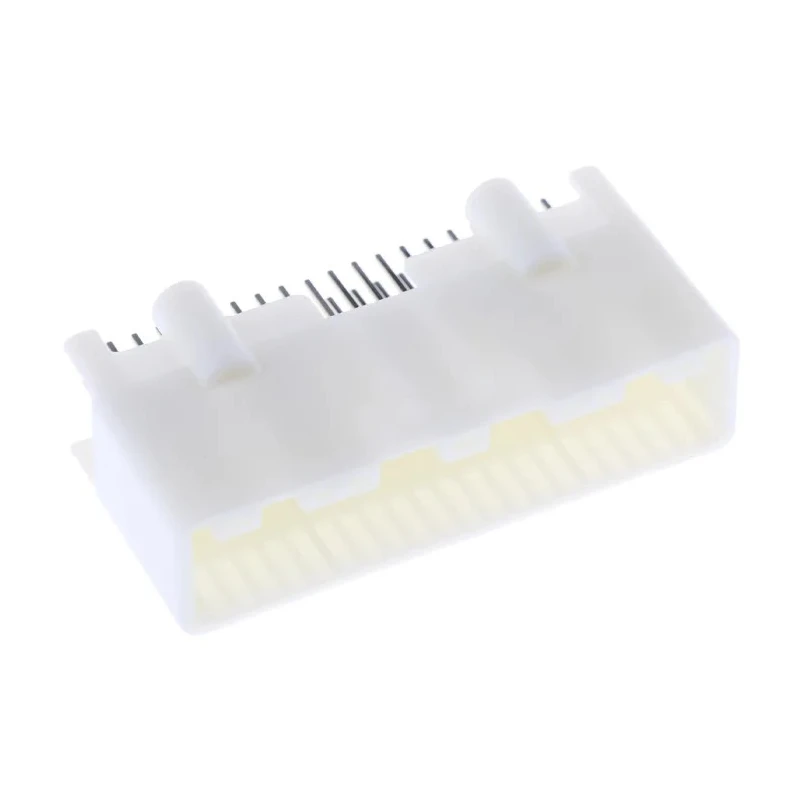

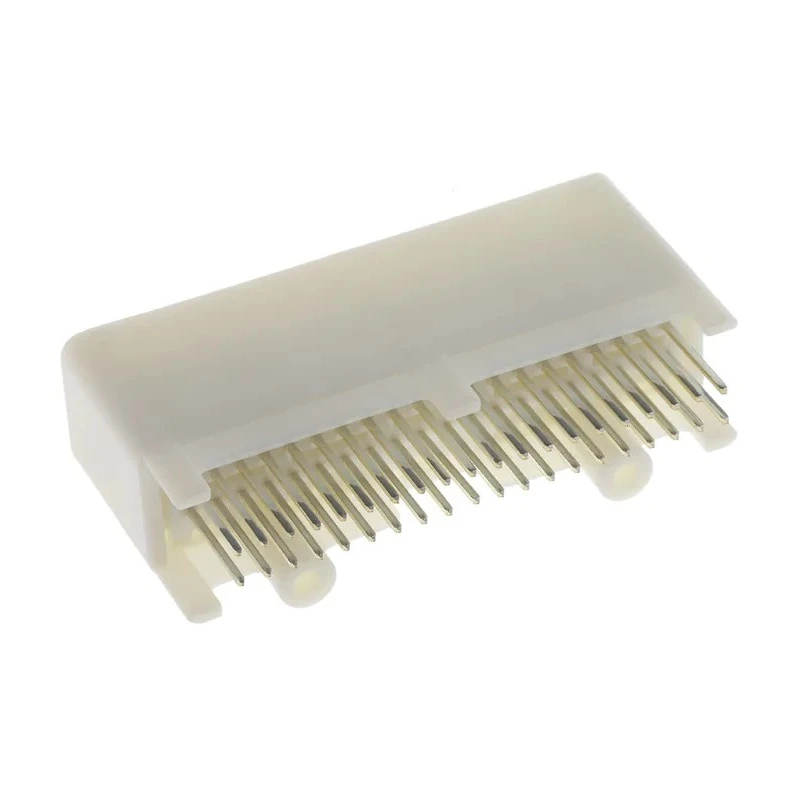

TE Connectivity TH 025 Series 40 Way Female Automotive Connector Natural Through Hole Solder Termination 1376113-2

TE Connectivity 1376113-2 is a TH 025 series automotive connector with 40 way female contacts featuring natural coloured housing and through hole solder termination. It is engineered to provide compact and high-density electrical connections in modern automotive electronic assemblies. The connector housing is fabricated from Polybutylene Terephthalate (PBT), a material known for its robustness and resistance to heat and chemicals, suitable for demanding automotive environments.

This connector’s contact design incorporates brass material with tin plating to ensure high conductivity, resistance to fretting corrosion, and low mating force for durability and reliable performance. The mounting approach uses through hole technology with board fixation screws enhancing mechanical stability and secure PCB attachment. The connector’s 2.2 mm pitch allows for high density wiring within limited space, supporting complex automotive electronic control units.

Operating temperature range from -30°C to 105°C makes this connector ideal for the thermal extremes encountered in automotive applications. The natural colour coding simplifies identification and mating during assembly processes. The connector complies with EU directives including RoHS and ELV, affirming its environmental friendliness.

The TH 025 series connectors by TE Connectivity are extensively used in applications such as automotive safety and security systems, convenience and driver information modules, multimedia interfaces, airbag ECU devices, switches, body control, dashboard electronics, and display screens. Their compact dimensions (Height: 23.4 mm, Width: 49.4 mm, Depth: 15.3 mm) accommodate stringent design constraints in vehicle electronics.

With its 40 contacts arranged in 2 rows, this connector supports multiple wiring configurations for signal and power distribution. Its solder termination ensures a stable and reliable electrical connection with PCB assemblies. This product is ideal for use in automotive manufacturing, repair, and design engineering sectors focusing on vehicle electronics integration.

The connector features a compact design with a 2.2 mm pitch ensuring high density connections. It includes 40 contacts arranged in 2 rows for reliable automotive wire connections. Housing is made from durable Polybutylene Terephthalate providing excellent mechanical stability.

Contacts are manufactured from brass with tin plating for corrosion resistance and optimal conductivity. Designed for automotive applications including safety, multimedia, and body control systems. Mounting is through hole with board fixation screws securing the connector to the PCB.

Operating temperature range from -30°C to 105°C suits harsh automotive environments. Colour coding aids identification and assembly within automotive systems. Standards compliance includes EU RoHS and EU ELV ensuring environmental safety.
