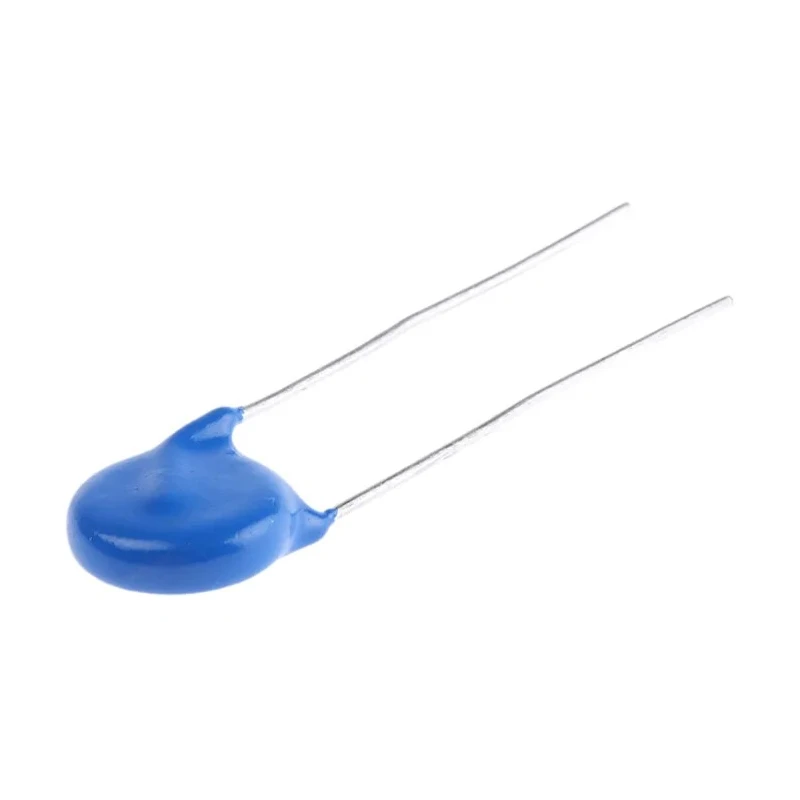

TDK AdvancedD-MP Metal Oxide Varistor 180 pF 25 A Clamping Voltage 1815 V Varistor Voltage 430 V B72210P2271K101

Free Delivery in India | Lowest Global Shipping Charges

TDK AdvancedD-MP Metal Oxide Varistor 180 pF 25 A Clamping Voltage 1815 V Varistor Voltage 430 V B72210P2271K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
Material	Metal
THICKNESS	5.9mm
Length	41mm
Model	B72210P2271K101
Depth	5.9mm
Mount Type	Lead
Series	AdvancedD-MP
Energy Rating	115J
Maximum Operating Temperature	85°C
Capacitance	180pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	895V dc
Standards/Approvals	VDE, IEC, UL, CSA
Pin Count	2
Termination Style	Tinned Copper Lead
Lead Pitch	7.5mm
Maximum AC Voltage	680V ac
Clamping Voltage VC	1815V
Clamping Current	25A
Maximum Surge Current	3.5kA
Varistor Voltage	430 V
Panasonic, V Surge Absorber 270pF 25A, Clamping 710V, Varistor 430VBrand	Panasonic
Vishay, VDRS Varistor 270 pF 50 A, Clamping 376 V, Varistor 430 V, DiscBrand	Vishay

Key Features

Designed for overvoltage protection in AC applications with a maximum AC voltage of 680 V.
Features a varistor voltage rating of 430 V and clamping voltage of 1815 V.
The AdvancedD-MP series uses metal oxide material for optimal durability and performance.
Compact size with 12 mm diameter, 41 mm length, and 5.9 mm thickness & depth.
Operates reliably over a temperature range from -40°C to 85°C.
Lead mount type with tinned copper leads and 7.5 mm lead pitch for easy installation.
Rated maximum surge current of 3.5 kA and an energy rating of 115 J.
Meets VDE, IEC, UL, and CSA safety standards with UL approval file number E321126.

Product Description

TDK B72210P2271K101 AdvancedD-MP Metal Oxide Varistor is engineered to provide robust overvoltage and surge protection in electrical and electronic circuits. This varistor series offers a capacitance of 180 pF and a clamping current of 25 A, making it suitable for applications requiring reliable protection against transient voltage spikes.

It operates effectively with a varistor voltage of 430 V and clamping voltage of 1815 V, capable of handling a maximum AC voltage of 680 V and a maximum DC voltage of 895 V. The metal oxide material construction of the AdvancedD-MP series ensures durability and stable performance in demanding environments.

The device has a compact form factor with a diameter of 12 mm, length 41 mm, and thickness/depth of 5.9 mm. It features tinned copper leads with a lead pitch of 7.5 mm for secure mounting, supporting installation in various electrical assemblies.

With a rated maximum surge current of 3.5 kA and energy rating of 115 J, this varistor meets stringent safety and performance standards including VDE, IEC, UL, and CSA certifications. It is UL approved under file number E321126 for use in Type 3 Surge Protective Devices (SPDs).

The varistor operates reliably over a broad temperature range from -40°C up to 85°C, making it ideal for industrial, electronic manufacturing, power supply, and surge protection systems.

Designed for high surge current and transient voltage protection. Compact size facilitates integration in constrained spaces. Metal oxide material ensures long-lasting reliability. UL, IEC, VDE, and CSA compliant for safety assurance.

Suitable for Industrial, Electrical, and Electronics applications. Lead mount type with durable tinned copper leads. Handles AC and DC voltages up to specified ratings. Operates efficiently in harsh temperature conditions.

Energy rating ensures robustness for repetitive surges.
