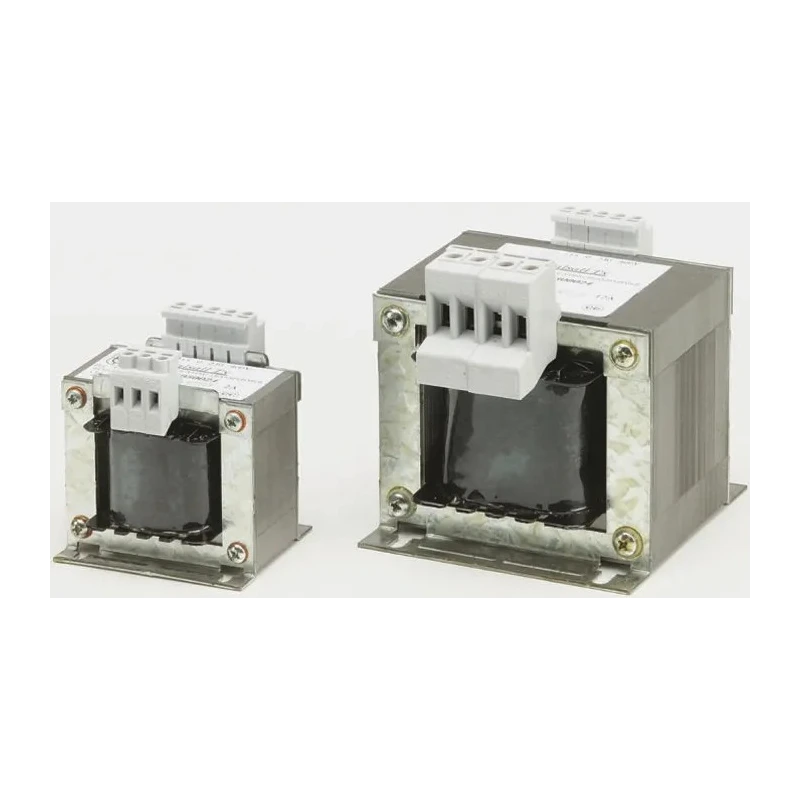

RS PRO 1 Output 500 VA Isolation Transformer, 0 - 230V AC, Primary 230-400V AC, IEC61558-2-4 504-228

RS PRO 504-228 Isolation Transformer is a high-quality, 1 output isolation transformer rated at 500 VA, designed to provide reliable galvanic isolation between input and output circuits. It operates with a primary voltage range of +15 - 0 - 230 - 400V AC and a secondary voltage of 0 - 230V AC, making it ideal for a wide range of industrial and medical applications.

This transformer is constructed following the IEC61558-2-4 standard to ensure safety, efficiency, and durability in various operating environments. The dual standard primary winding with a +15 V tap provides flexibility in input voltages, accommodating different power sources. Its varnish impregnation offers outstanding protection against rust and humidity, extending the transformer's service life.

The compact chassis mounting design measures 120mm in length, 143mm in width, and 130mm in depth, and includes a 6.5mm fixing hole diameter for easy installation. It operates efficiently within a temperature range of -30°C to 70°C and supports operating frequencies between 50Hz and 60Hz.

RS PRO's Isolation Transformer effectively reduces electrical noise and provides a low regulation power output, ensuring connected devices operate safely and reliably. The transformer is equipped with fully shrouded cage clamp terminals clearly marked for accurate voltage connections and includes an earth terminal on the secondary side.

This product is widely used in medical equipment, power device testing, and any application requiring power transfer with isolation for safety and noise suppression. Designed to provide galvanic isolation between AC power lines and connected devices.

Complies with IEC61558-2-4 safety standards for reliable operation. Features dual standard primary winding with +15 V tap for input voltage flexibility. Durable varnish impregnation ensures protection against humidity and rust.

Includes fully shrouded cage clamp terminals with clear voltage markings. Supports operating frequencies from 50Hz minimum to 60Hz maximum. Minimum operating temperature of -30°C and maximum of 70°C. Compact design with dimensions 120mm (L) x 143mm (W) x 130mm (D) and fixing hole diameter of 6.5mm.

Application suited for medical industry, power testing devices, and control circuits. Constructed with low loss noise laminations for high efficiency and low regulation. Discover more industrial electrical components and transformers at EnvMart for superior quality and performance.
