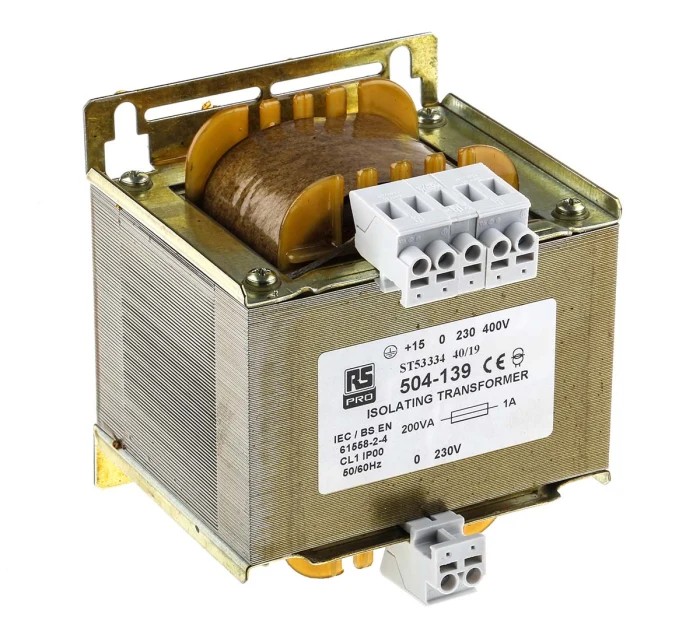

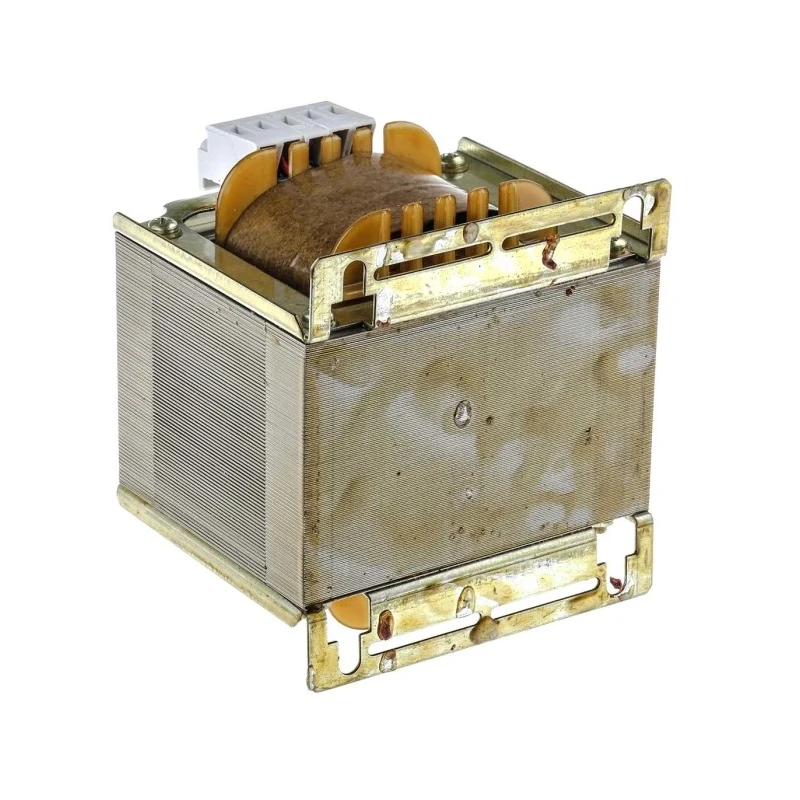

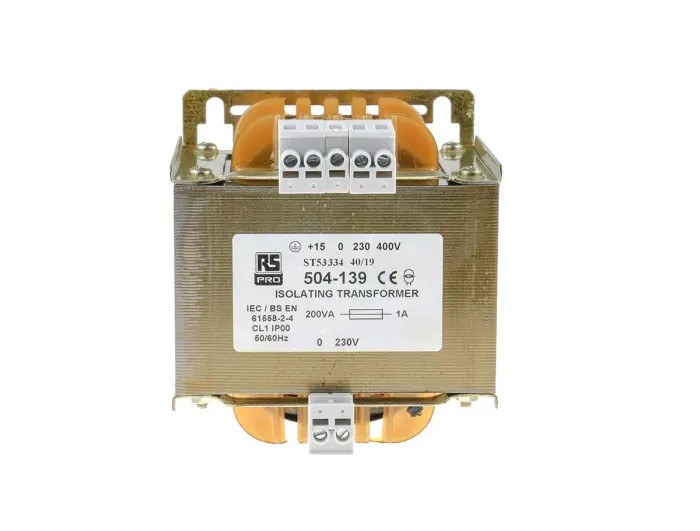

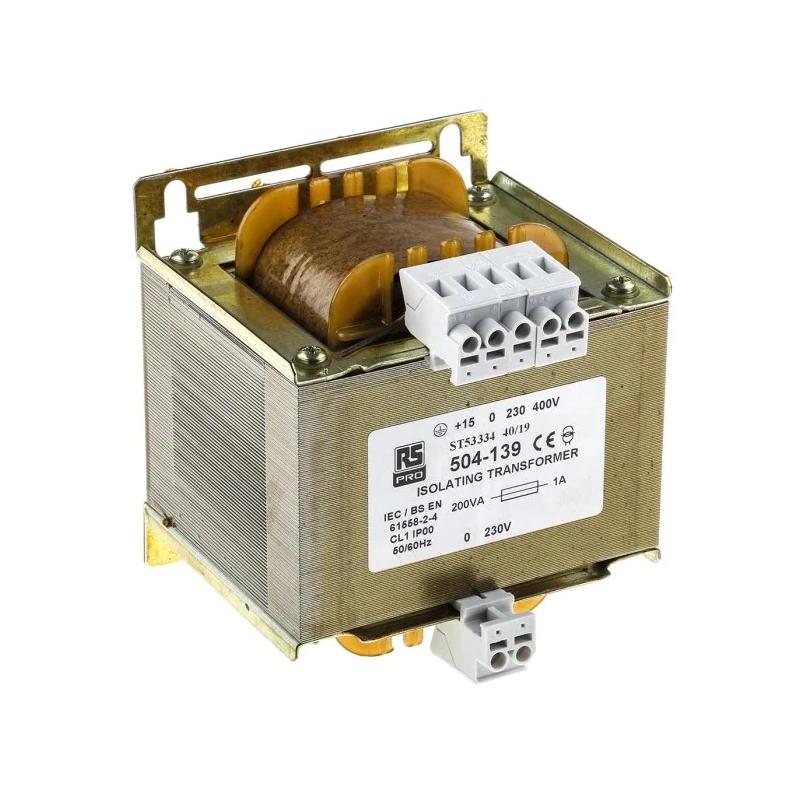

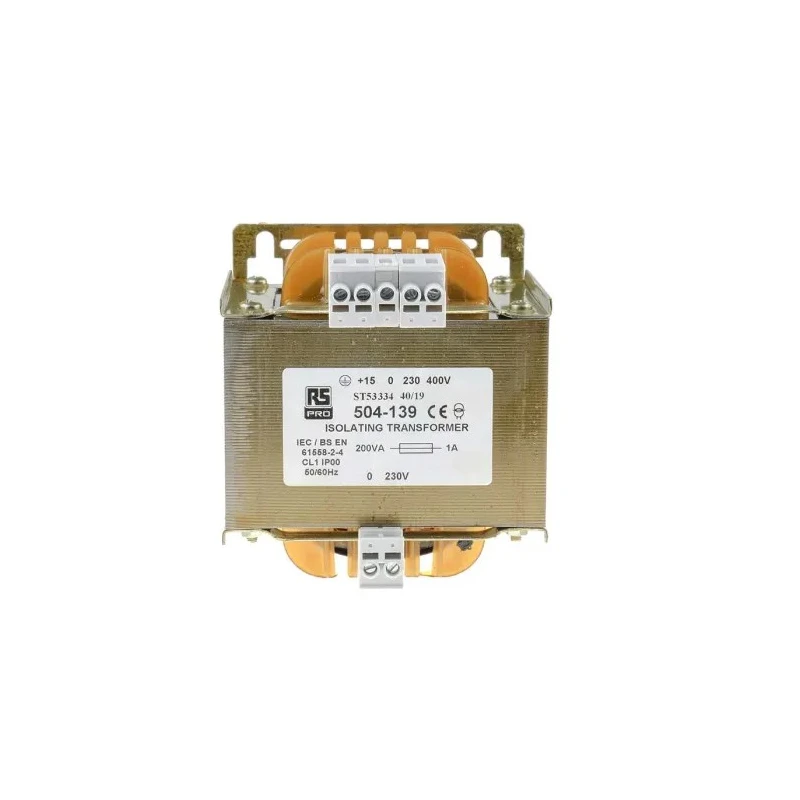

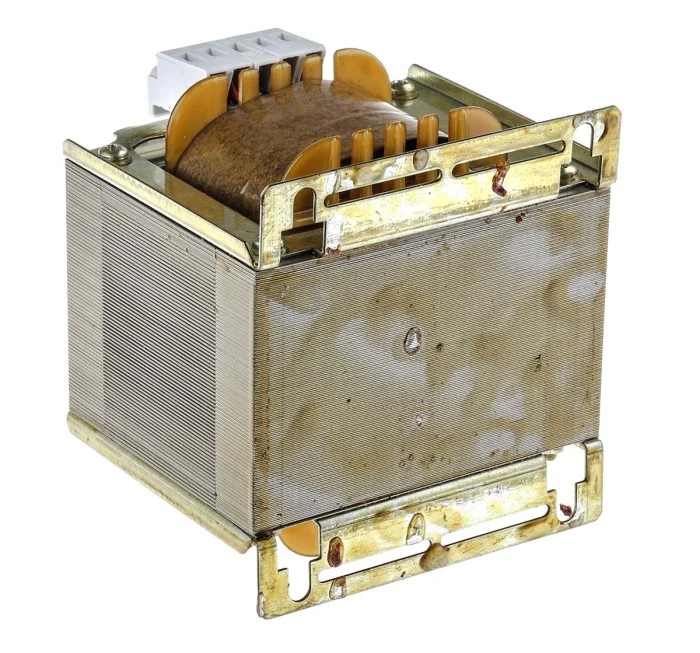

RS PRO Isolation Transformer 1 Output 200 VA, Primary Voltage +15-0-230-400V AC, Secondary Voltage 0-230V AC 504-139

RS PRO 504-139 Isolation Transformer is a high-quality 1 Output 200 VA transformer designed to provide galvanic isolation and safety for various electrical and electronic equipment. Its primary voltage range of +15 - 0 - 230 - 400 V AC and secondary voltage of 0 - 230 V AC allows it to accommodate different power requirements with versatility.

The transformer features varnish impregnation that protects against humidity and corrosion, ensuring long-term operational reliability. It includes an earth terminal and a fully shrouded cage clamp terminal with clear voltage markings to facilitate safe installation and maintenance.

It complies with IEC61558-2-4 standards and undergoes 100% electrical and flash testing to guarantee secure isolating properties. The use of low loss noise laminations minimizes electromagnetic interference, making it suitable for sensitive environments.

This isolation transformer is ideally suited for industrial, laboratory, medical, and testing applications where safety and noise reduction are critical. Its compact dimensions (108mm x 114mm x 110mm) and fixing hole diameter (6.5mm) enable convenient panel mounting in control cabinets and equipment racks.

Designed with a primary voltage range of +15 - 0 - 230 - 400 V AC for equipment flexibility. Secondary voltage of 0 - 230 V AC with single output ensures compatibility with multiple devices. Protected against humidity and rust through varnish impregnation process.

Equipped with earth terminal and shrouded cage clamp terminal with voltage markings. Fully compliant to IEC61558-2-4 and tested for electrical safety and flash protection. Ideal for medical equipment, power testing devices, and control circuits.

Compact size and fixing holes allow easy panel installation. Operating temperature from -30°C to 70°C for robust performance.

RS PRO products are known for their stringent quality controls and reliability. This Isolation Transformer provides efficient voltage isolation, noise reduction, and enhanced safety for your industrial and testing setups. Browse the extensive range of transformers and electrical components on EnvMart for more specialized equipment.
