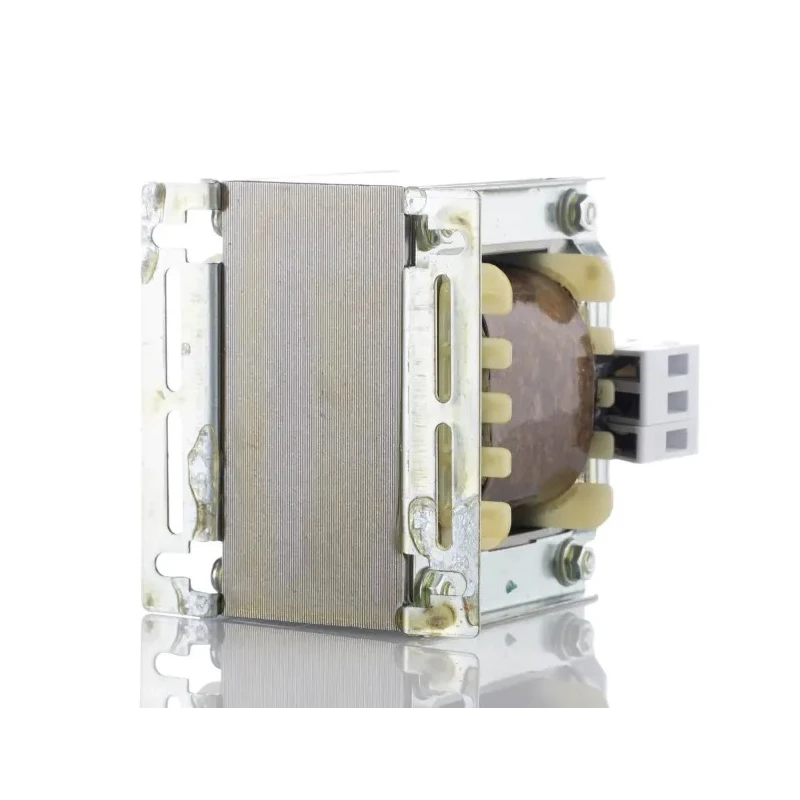

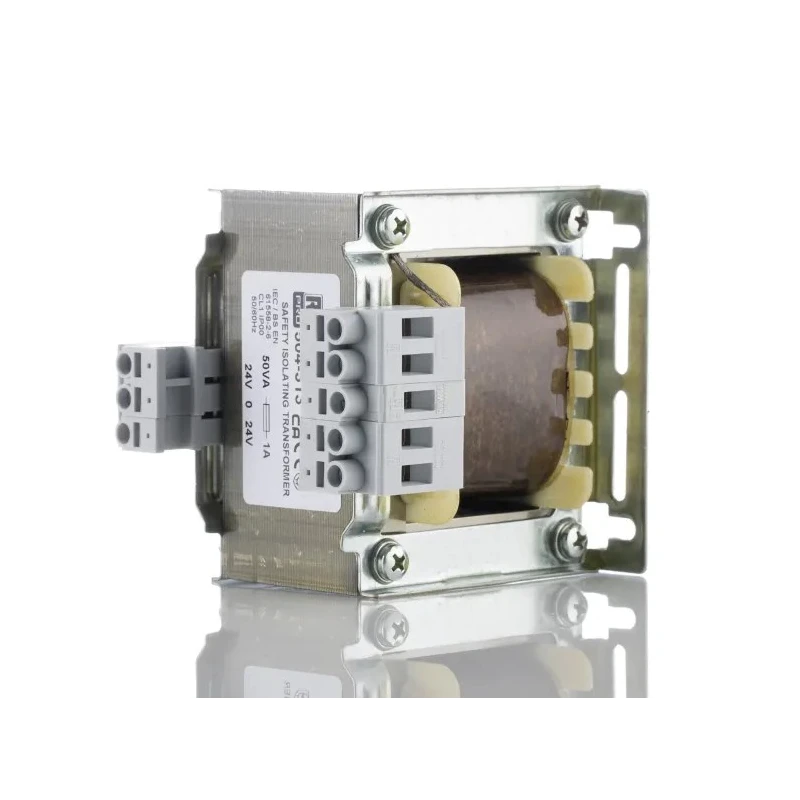

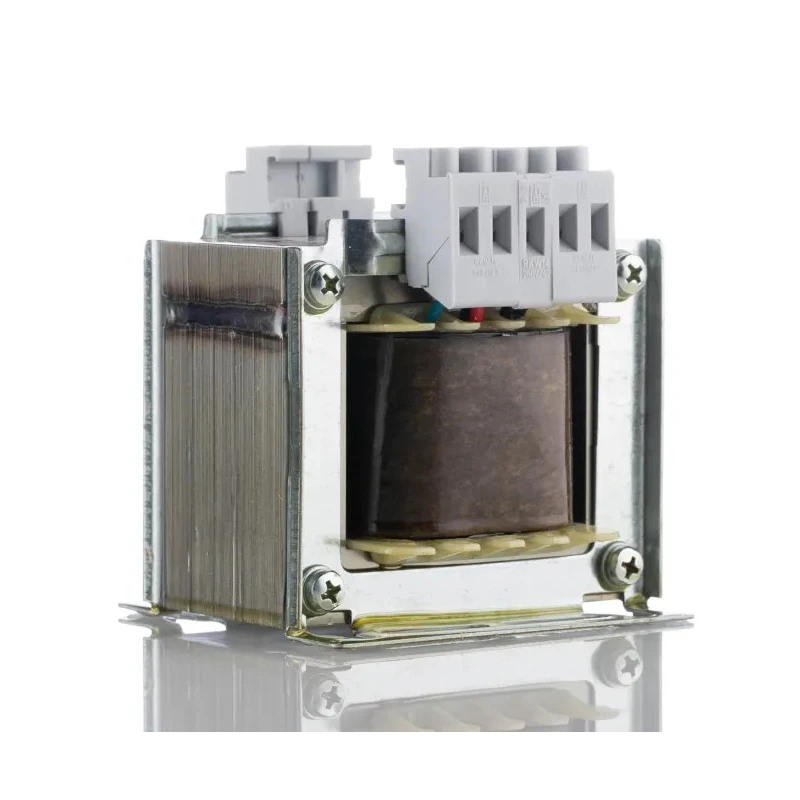

RS PRO Isolation Transformer 1 Output 50 VA, 24 - 0 - 24V AC, IEC61558-2-4 504-313

RS PRO 504-313 Isolation Transformer is a high-quality electrical component designed for use in control panels, industrial machinery, and various general electrical applications requiring voltage isolation. This transformer offers a single output delivering 50 VA power capacity at a secondary voltage rating of 24 - 0 - 24 V AC, fulfilling IEC61558-2-4 safety standards.

The primary winding is dual-standard with taps allowing connection at 230 V, 400 V, and an additional +15 V tap to provide input voltage flexibility. This enables stable operation even in varying electrical environments. The transformer employs low loss noise laminations and is varnish impregnated to protect against moisture and rust, enhancing operational life and reliability.

Designed for chassis mounting, it features a compact form factor with dimensions of 84 mm length, 84 mm width, and 91 mm depth, and a fixing hole diameter of 4.5 mm for secure installation. The fully shrouded cage clamp terminal includes clear voltage markings to simplify wiring and increase safety during setup.

Operating over a wide temperature range from -30°C to 130°C, this transformer withstands harsh industrial conditions. Weighting 1.9 kg, it balances robustness and manageable mass. Its high efficiency and low voltage regulation make it ideal for applications requiring consistent and isolated power supplies.

This transformer is suitable for electronic components assemblies, power supply distribution, industrial control systems, and HVAC equipment where isolation between power source and load is critical. It meets stringent European standards ensuring user safety and electrical performance.

High quality safety and isolating transformer designed for control circuits and general applications. Dual standard primary winding with taps at 230 V, 400 V and +15 V for input voltage flexibility. Single output center tapped secondary voltage at 24 - 0 - 24 V AC.

Low loss noise laminations and varnish impregnated for protection against humidity and rust. Fully shrouded cage clamp terminal with voltage markings for safe connection. Compact chassis mounting design with fixing hole of 4.5 mm diameter.

Wide operating temperature range of -30°C to 130°C suitable for harsh environments. Complies with IEC61558-2-4 safety and performance standards. Dimensions: 84 x 84 x 91 mm; Weight: 1.9 kg. Explore more high-quality and reliable transformers and related electrical components in the Electronics & Electricals category at EnvMart.
