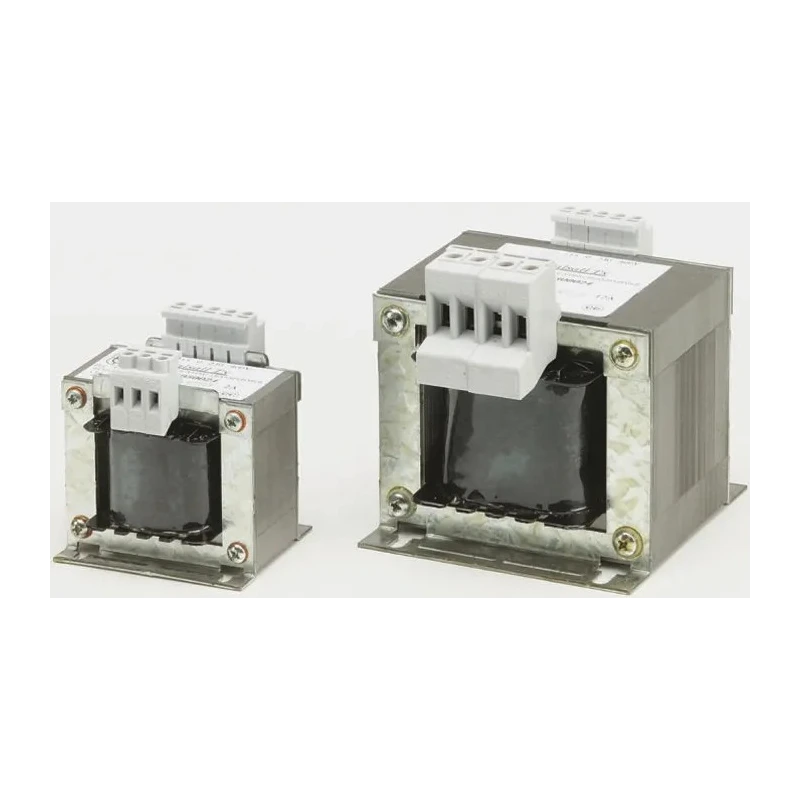

RS PRO 1 Output 200 VA Isolation Transformer, 24 - 0 - 24V ac, IEC61558-2-4 504-123

RS PRO 504-123 Isolation Transformer is a high-quality 200 VA device designed for galvanic isolation between AC power lines and connected equipment. It operates at primary voltages of +15 - 0 - 230 - 400V ac, and delivers a secondary output of 24 - 0 - 24V ac. Compliant with IEC61558-2-4 standards, this transformer ensures electrical safety and reliable isolation to prevent leakage currents.

It is constructed with varnish impregnation to prevent humidity and rust damage, making it suitable for harsh environments. The transformer features a screw connector with mounting brackets that allow for secure chassis installation. Its robust design supports a wide operating temperature range from -30°C to 130°C and operates effectively at frequencies from 50 Hz to a maximum of 60 Hz.

Key features include low noise producing laminations, an earth terminal, and a low regulation design which contributes to its high efficiency. The transformer is supplied fully shrouded with cage clamp terminals and clear voltage markings for easy wiring and safety. Its compact size of 108mm length, 114mm width, and depth of 110mm facilitates installation in limited spaces.

This Isolation Transformer is ideal for applications in medical device power supplies, testing equipment requiring galvanic isolation, and control circuits in industrial and manufacturing environments. It effectively reduces noise transmission and enhances safety where power transfer between circuits must be isolated.

The transformer operates with primary voltage +15 - 0 - 230 - 400V ac, providing input flexibility. It has a 1 output with 24 - 0 - 24V ac secondary voltage and 200 VA power capacity. IEC61558-2-4 compliance ensures adherence to industry safety standards.

Varnish impregnation protects against environmental damage from moisture and rust. Includes mounting brackets and screw connections for secure installation on chassis. Wide operating temperature range ensures performance from -30°C to 130°C.

Compact dimensions and 5 kg weight allow for versatile mounting options. Low noise lamination materials improve operational performance. Earth terminal and cage clamp terminals enhance safety and ease of wiring. High efficiency with low regulation supports industrial and medical applications.
