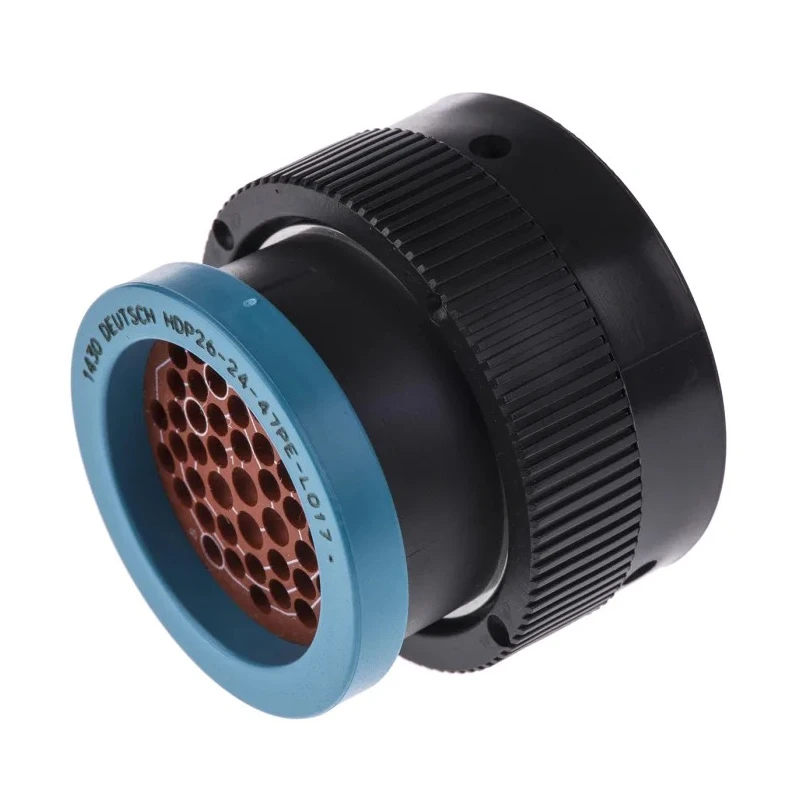

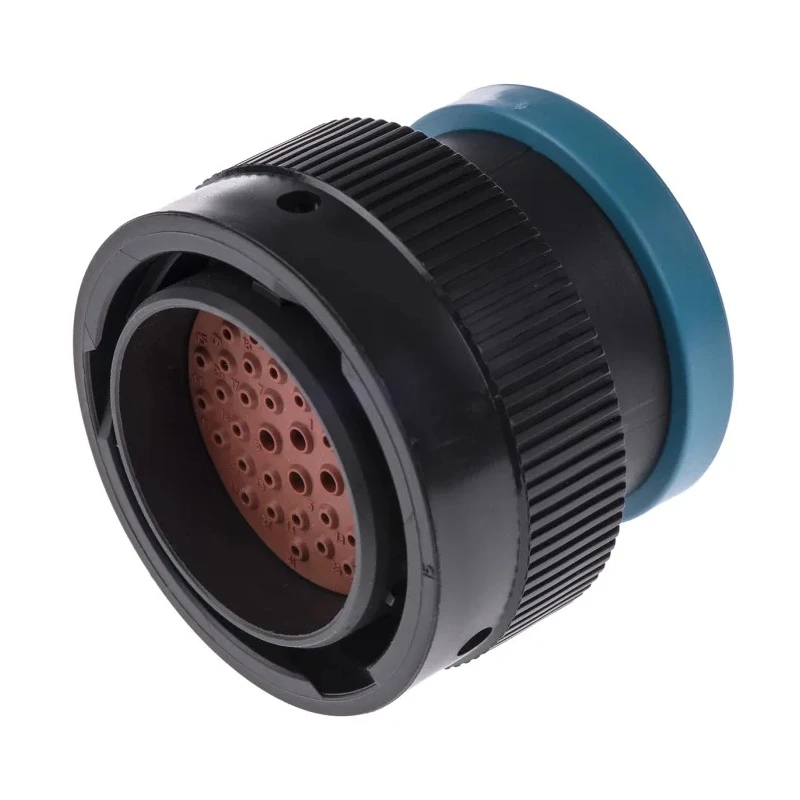

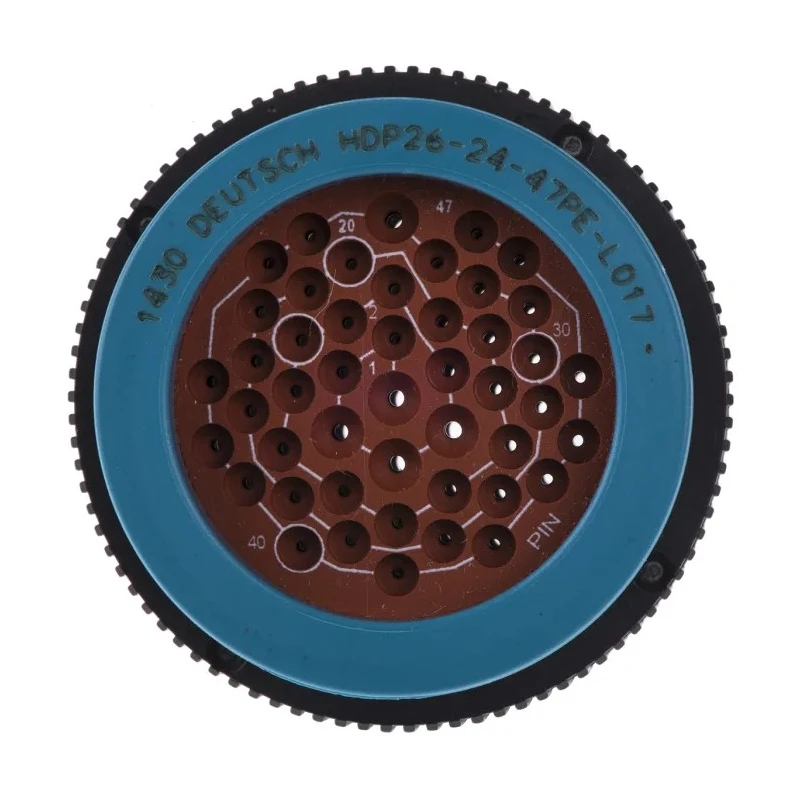

Deutsch Circular Connector 47 Contacts Cable 1.59 mm Plug Male IP67 HD20 Series HDP26-24-47PE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HDP26-24-47PE-L017 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 47 |
| Contact Plating | Nickel |
| Number of Contacts | 47 |
| Contact Gender | Male |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Plug |
Key Features
- This connector supports a maximum current of 13A and voltage of 250V.
- Constructed with thermoplastic housing and copper contacts plated with nickel.
- Designed for durability withstanding 100 mating cycles and 48 hours salt spray corrosion resistance.
- Suitable for harsh environments with operating temperature range from -55°C to 125°C.
- Features straight orientation, bayonet mating type, and crimp termination for reliable connections.
- Ideal for industrial and electronic applications requiring sealed multipole circular connectors.
- Offers vibration resistance up to 20g from 10 to 2000Hz for robust performance.

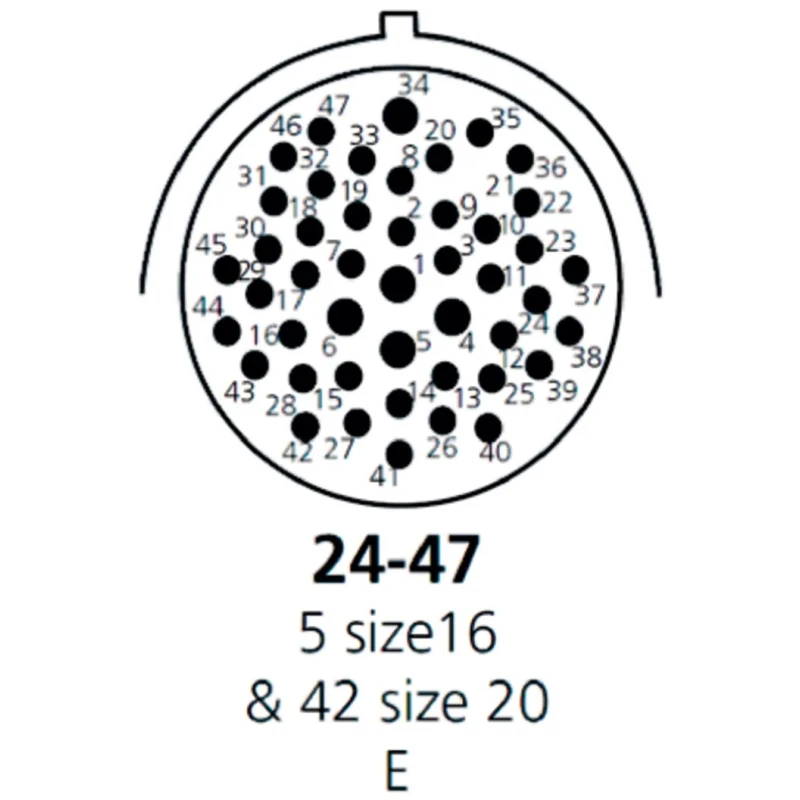

- Compatible with Deutsch solid contacts sizes 12, 16, and 20 depending on pole format.
Product Description
Deutsch HDP26-24-47PE-L017 circular connector is a heavy-duty industrial multipole connector designed for harsh environments, featuring a cable mount and 1.59 mm connector size. It belongs to the HD20 series, providing reliable, sealed connections with IP67 ingress protection suitable for electronic, industrial, and automotive applications.
This plug type connector includes 47 male contacts made of copper with nickel plating, ensuring excellent conductivity and corrosion resistance. The housing is made from durable thermoplastic material, rated for continuous operation from -55°C to 125°C temperature, making it suitable for extreme conditions.
It supports a current rating of 13A and a voltage of 250V, ideal for high power and signal transmission needs. The bayonet mating mechanism guarantees secure locking for vibration-proof and stable connections, suitable for industrial machinery, manufacturing equipment, and control systems.
Designed for endurance, this connector withstands a minimum of 100 mating cycles and resists corrosion through 48 hours of salt spray according to MIL STD 1344. The straight orientation and crimp termination type allow easy installation and reliable cable assemblies.
Additional components like right-angled clam shell backshells and various conduit size adapters are available within the HD20 range, enhancing versatility. Compatible with Deutsch solid contacts in sizes 12, 16, and 20, this connector suits multiple wiring configurations and electrical circuit designs.
This connector offers high mating cycle durability to reduce maintenance needs. Corrosion resistance ensures long service life in challenging environments. Vibration proof rating enables use in mobile and industrial machinery.
Cable mount design facilitates secure wiring and connectivity. Bayonet locking improves assembly speed and connection security. Wide temperature rating covers a variety of industrial climates. Thermoplastic housing balances strength with lightweight construction.
Explore the Electronics Components category on EnvMart to find more Industrial Circular Connectors and related accessories meeting rigorous standards and application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 13A and a voltage of 250V.
It operates within a temperature range from -55°C to 125°C, making it suitable for extreme conditions.
This connector features crimp termination, allowing for reliable cable assemblies.
The connector has an IP67 rating, providing protection against dust and water ingress.
It includes 47 male contacts, made of copper with nickel plating for excellent conductivity.
The housing is made from thermoplastic, and the contacts are copper plated with nickel.
It utilizes a bayonet mating type, which ensures secure locking for stable connections.
This model is designed to withstand a minimum of 100 mating cycles, enhancing its durability.
The connector size is 1.59 mm, suitable for various wiring configurations.
The connector is manufactured in India.
It is ideal for industrial and electronic applications requiring sealed multipole circular connectors.
Additional components like right-angled clam shell backshells and various conduit size adapters are available within the HD20 range.
