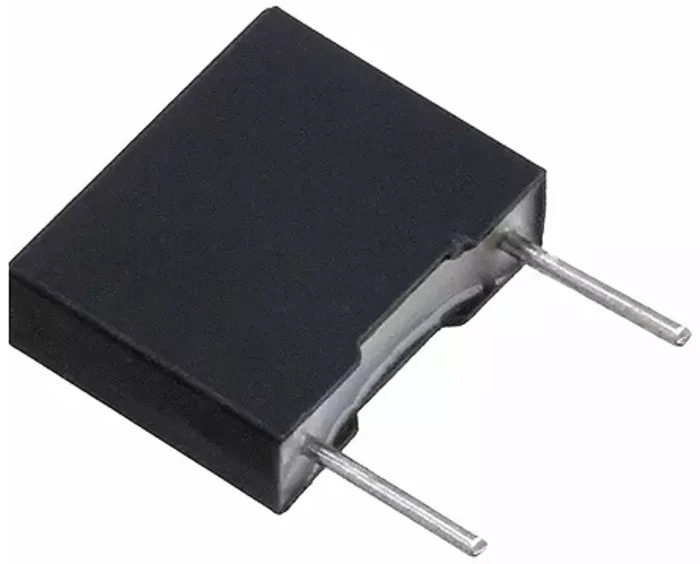

KEMET Polypropylene Film Capacitor, 33nF ±5 % Capacitance, 1kV DC 600V AC, Radial Lead, R76QI23304040J
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Voltage Range | 250 - 2000 V dc |
| Brand | KEMET |
| Height | 13.5mm |
| Length | 18mm |
| Model | R76QI23304040J |
| Packaging | Bag |
| Width | 7.5mm |
| Series | R76 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 33nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Lead Length | 30mm |
| Standards/Approvals | RoHS, IEC 60286-2 |
| Pin Count | 2 |
| Rated AC Voltage | 600V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 7.5 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 58mΩ |
Key Features
- The capacitor features radial lead terminals for easy PCB mounting.
- It is encapsulated in a self-extinguishing plastic case compliant with UL 94V-0 standards.
- Designed for high frequency and high voltage circuit applications.
- Leads have a pitch of 15mm and length of 30mm for standard installation.
- Operates reliably over a temperature range from -55°C to 105°C.
- This capacitor meets automotive AEC-Q200 standards for durability and performance.
- Exhibits extremely low dissipation factor of 0.0003% ensuring minimal energy loss.
- Equipped with double metallized polypropylene film and offers self-healing properties.
Product Description
KEMET R76QI23304040J Polypropylene Film Capacitor is a high-quality passive electronic component designed for industrial and automotive applications requiring stable capacitance and high voltage tolerance.
This capacitor features 33nF capacitance with a tight ±5% tolerance and is rated for 1kV DC and 600V AC operation. Its radial lead construction with 15mm pitch and 30mm lead length facilitates reliable PCB mounting.
The capacitor is encapsulated inside a self-extinguishing plastic case meeting UL 94V-0 flame retardancy standards, ensuring safety in high power environments. Its double metallized polypropylene film electrodes provide stability, low ESR (58mΩ), and excellent high frequency performance.
Operating temperature ranges from -55°C up to 105°C, making it suitable for harsh environments. Additionally, it complies with automotive industry AEC-Q200 standards, proving durability and consistency under automotive conditions.
Typical applications include suppression in switched mode power supplies (SMPS), deflection circuits in televisions, snubber circuits, SCR commutation circuits, and other high voltage and high current use cases.
The capacitor offers self-healing capabilities enhancing longevity in demanding electrical circuits. Leads are radial type with a diameter of 0.8mm for robust electrical connection. Compact dimensions of 18mm length, 7.5mm width, and 13.5mm height make it suitable for space-constrained PCB layouts.
Certified to RoHS and IEC 60286-2 standards for environmental and safety compliance. Choose KEMET R76 series capacitors for reliable performance in demanding industrial, automotive, and consumer electronics applications.
Explore more electronic components and advanced Film Capacitors in the EnvMart catalog for varied industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 33nF with a tolerance of ±5%.
It is rated for 1kV DC and 600V AC operation.
The dimensions are 18mm in length, 7.5mm in width, and 13.5mm in height.
It operates reliably over a temperature range from -55°C to 105°C.
It features radial lead terminals with a lead length of 30mm and a lead diameter of 0.8mm.
The dissipation factor is 0.0003%, ensuring minimal energy loss.
It complies with RoHS and IEC 60286-2 standards, as well as automotive AEC-Q200 standards.
Typical applications include suppression in switched mode power supplies (SMPS), deflection circuits in televisions, and snubber circuits.
The equivalent series resistance (ESR) is 58mΩ.
The lead pitch is 15mm, facilitating standard PCB installation.
It is packaged in a bag for convenience in handling and storage.
This capacitor is part of the KEMET R76 series.
