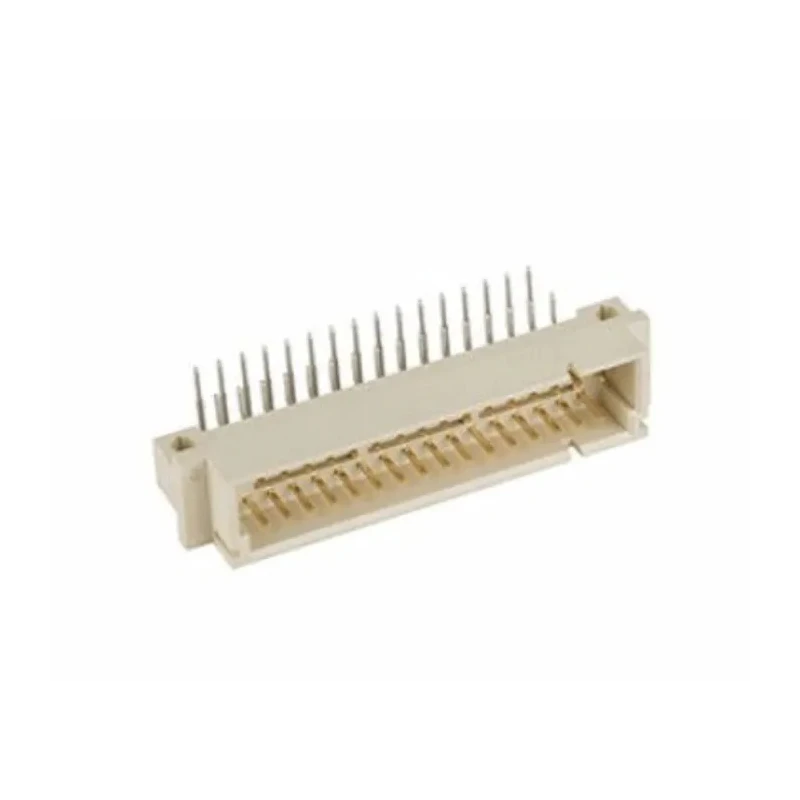

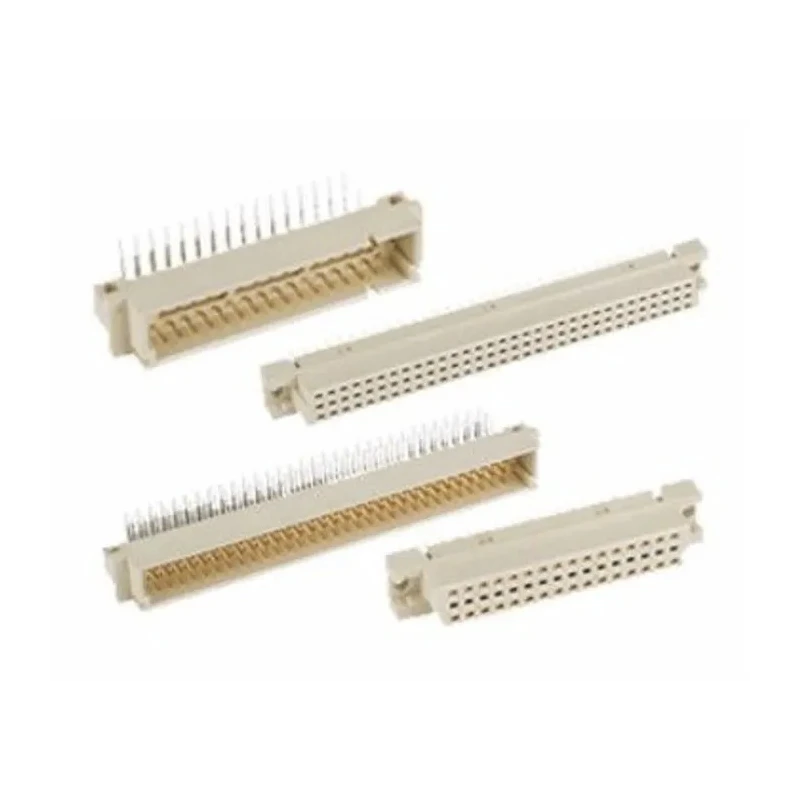

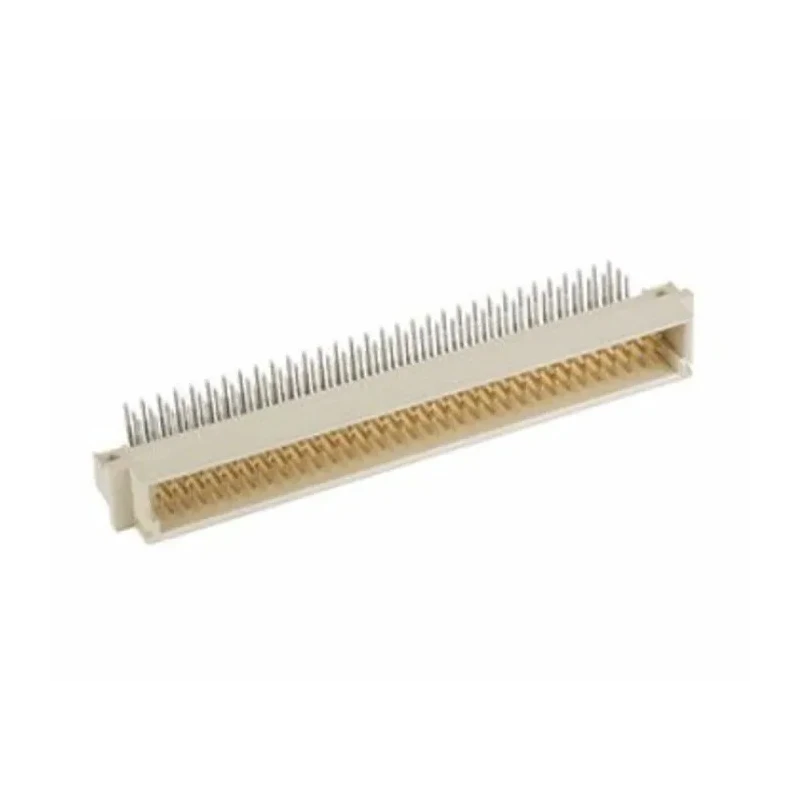

Amphenol Communications Solutions DIN 41612 Connector 48 Way 5.08 mm Pitch PCB Type C/2 Solder 86093488314T55F1LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 2A |
| Model | 86093488314T55F1LF |
| Mount Type | PCB |
| Housing Material | Thermoplastic Polyester |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- Provides a pitch of 5.08 mm for precise PCB mounting.
- Features 48 contacts arranged in 3 rows for dense connectivity.
- Maximum current rating of 2A suitable for signal applications.
- Connector gender is female with straight orientation for PCB mounting.
- Contact plating is gold over nickel ensuring reliable connections.
- Housing made of thermoplastic polyester for durability and insulation.
- Operational temperature range from -55°C to 125°C for diverse environments.
- Termination type is solder, making it ideal for PCB applications.
Product Description
Amphenol Communications Solutions model 86093488314T55F1LF is a DIN 41612 connector, designed with 48 contacts arranged in a 3 row (A/B/C) configuration providing a 5.08 mm pitch suitable for PCB mounting. The connector type is C/2 with female gender and solder termination, classified as Class C2.
This connector supports a maximum current of 2A and a voltage rating of 1kV ac, making it reliable for industrial electronic assemblies requiring robust backplane and rack connections. Its thermoplastic polyester housing ensures excellent mechanical strength and electrical insulation.
Contacts are made of copper alloy with gold plating over nickel, guaranteeing low contact resistance of 20 milliohms and reliable performance under harsh operating temperatures from -55°C to 125°C. This product is manufactured in India and complies with industry standards suitable for telecom, data communications, instrumentation, and industrial applications.
The connector is ideal for use in networking equipment, control systems, medical instruments, and other high-bandwidth data transmission environments requiring secure and durable PCB interconnections.
Precise 5.08 mm pitch ensures optimal PCB alignment and mounting repeatability. Gold over nickel contact plating provides corrosion resistance and longevity. Wide operating temperature range supports operation in extreme environments.
Robust thermoplastic polyester housing for electrical insulation and durability. Low contact resistance reduces signal loss and enhances performance. Designed for use in industrial, communication, and instrumentation sectors.
Explore a comprehensive range of DIN 41612 Connectors on EnvMart for reliable backplane and rack connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 5.08 mm, suitable for precise PCB mounting.
It has 48 contacts arranged in a 3-row configuration (A/B/C).
The maximum current rating is 2A, making it suitable for signal applications.
This model uses solder termination, ideal for PCB applications.
The operational temperature range is from -55°C to 125°C, allowing for use in diverse environments.
The housing is made of thermoplastic polyester, providing durability and electrical insulation.
The voltage rating is 1kV ac, making it suitable for industrial electronic assemblies.
The contacts are plated with gold over nickel, ensuring reliable connections and corrosion resistance.
The maximum contact resistance is 20 milliohms, which helps reduce signal loss.
This connector is manufactured in India.
It is suitable for use in networking equipment, control systems, medical instruments, and other high-bandwidth data transmission environments.
The connector gender is female with a straight orientation for PCB mounting.
