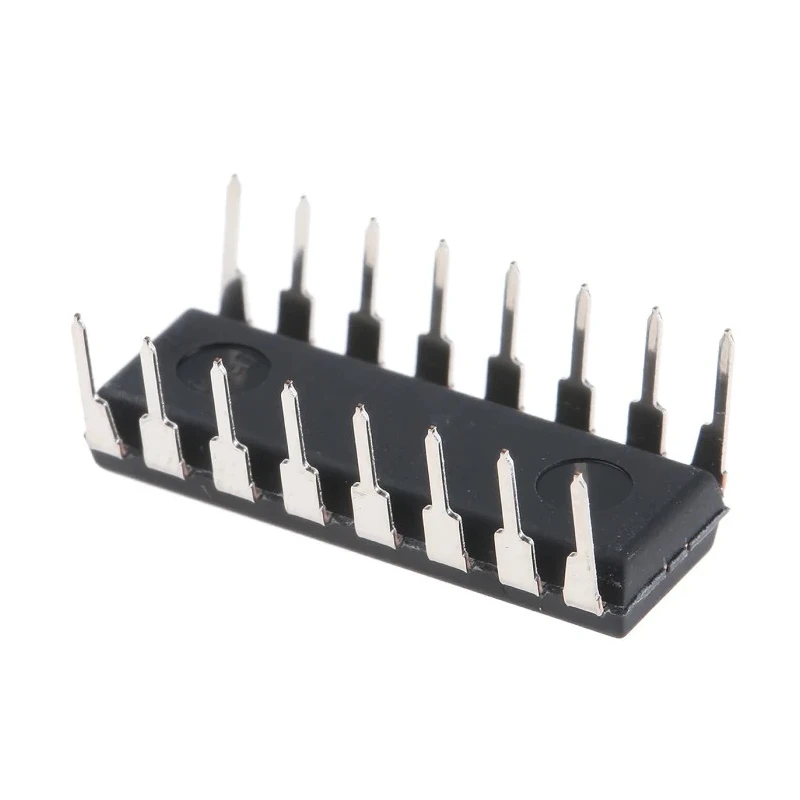

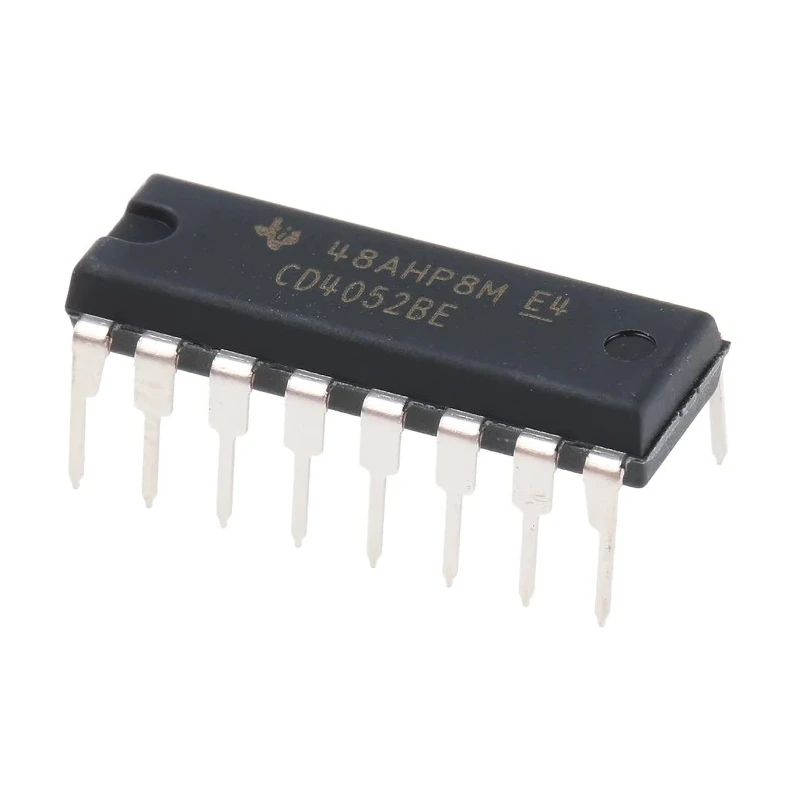

Texas Instruments CMOS Logic Family Multiplexer Dual 4:1 Configuration 16-Pin PDIP CD4052BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4052BE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | CMOS |
| Series | CD4052B |
| Configuration | Dual 4:1 |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 20V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -0.5V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 550Ω |
| ConfigurationDual 4 | 1 |
| Dual 4 | 1 |
| Texas Instruments Multiplexer, 2 CMOS Dual 4 | 1, Multiplexer, Demultiplexer, 16-Pin PDIP |
Key Features
- The device belongs to the 4000 series CMOS logic family known for reliability.
- It supports a wide operating voltage range from 3 to 18 V.
- Mount type is through-hole with a PDIP package for easy integration.
- Operating temperature ranges from -55°C to 125°C, supporting harsh environments.
- Maximum on-state resistance is 550Ω ensuring good signal integrity.
- Output type is CMOS, providing low power consumption and noise immunity.
- Compact dimensions of 19.3mm length, 6.35mm width, and 4.57mm height.
- Suitable for industrial, electronic component, and semiconductor applications in design and manufacturing.
Product Description
Texas Instruments CD4052BE CMOS logic multiplexer features dual 4:1 configuration with 16 pins housed in a PDIP package. It forms part of the 4000 series encoders, decoders, and multiplexers offering wide operating voltage range of 3 to 18 V. The multiplexer supports both multiplexing and demultiplexing functions making it suitable for routing multiple signals in embedded systems and industrial electronics.
This device operates proficiently in a temperature range from -55°C to +125°C, ensuring reliable performance under extreme conditions. It has a maximum on-state resistance of 550Ω which helps maintain signal quality and low energy loss.
The 16-pin PDIP through-hole mounting package facilitates straightforward circuit board integration and prototyping. Its CMOS output ensures low power consumption and minimal switching noise suitable for sensitive electronic designs.
Typical applications include signal routing in industrial control systems, measurement instrumentation, multiplexing in digital circuits, and various semiconductor and electronics manufacturing scenarios.
The device uses 4000 CMOS logic family technology. Wide operating voltage supports voltage flexibility from 3 V to 18 V supply. Package type is PDIP with through-hole mount. Maximum operating temperature up to 125°C. Low maximum on-state resistance of 550Ω improves signal fidelity.
Compact size with dimensions 19.3mm × 6.35mm × 4.57mm. Dual 4:1 multiplexer/demultiplexer configuration for versatile signal management. Robust industrial-grade semiconductor device from Texas Instruments.
This multiplexer is ideal for electronics manufacturing, industrial automation, and laboratory applications requiring reliable signal switching and routing with low power CMOS devices. Explore more Texas Instruments semiconductor components and multiplexer ICs at EnvMart for your design needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide operating voltage range from 3 to 18 V.
The maximum operating temperature for the CD4052BE is 125°C.
It comes in a PDIP package, suitable for through-hole mounting.
The maximum on-state resistance is 550Ω, which helps maintain signal integrity.
This unit has dimensions of 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It features a total of 16 pins.
The output type is CMOS, which provides low power consumption and noise immunity.
The minimum operating temperature is -55°C, allowing it to function in harsh environments.
This model supports both multiplexing and demultiplexing functions, making it versatile for signal routing.
It belongs to the CMOS logic family, known for its reliability in various applications.
Typical applications include signal routing in industrial control systems and multiplexing in digital circuits.
It is designed for through-hole mounting, facilitating easy integration into circuit boards.
