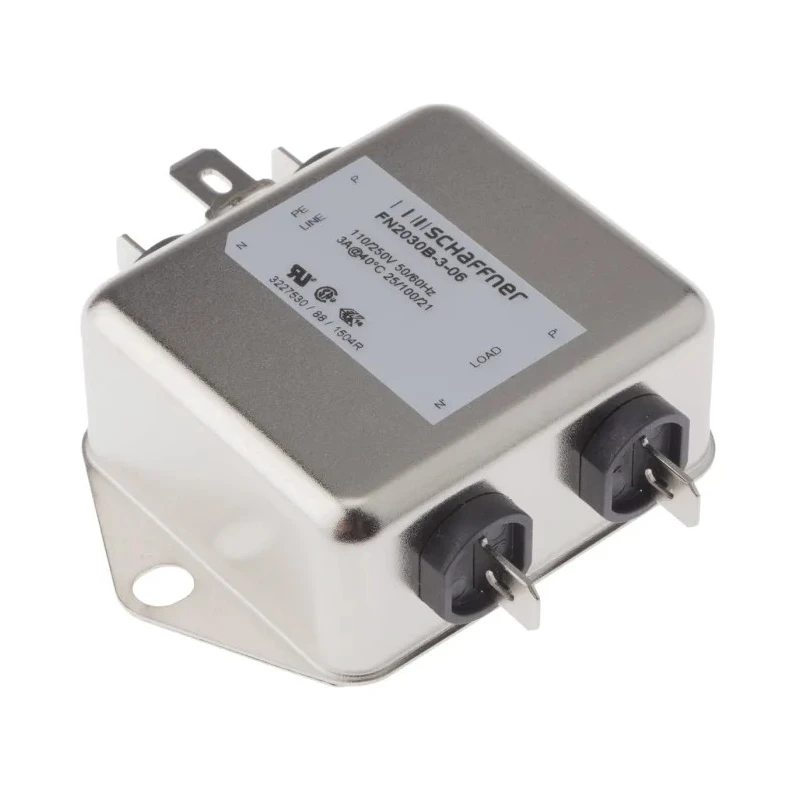

Schaffner Chassis Mount EMI Filter 3A 250V AC/DC 400Hz Fast-On Termination FN2030
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 22.3mm |
| Length | 71mm |
| Model | FN2030 |
| Depth | 46.6mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2030 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 330nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Leakage Current | 2μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 14mH |
| Termination Style | Fast-On |
| Power Loss | 2.2W |
Key Features
- Premium two-stage EMI filter for efficient noise suppression.
- Chassis mount design enables easy installation.
- Fast-On termination ensures quick and secure connections.
- Operates effectively at temperatures from -25°C up to 100°C.
- Low leakage current of 2μA for enhanced safety and performance.
- Power loss is minimal at 2.2W under normal operating conditions.
- Inductance of 14mH and capacitance of 330nF for excellent attenuation.
- Suitable for use in household, medical, electronic data processing, and noisy industrial applications.
Product Description
Schaffner FN2030 chassis mount EMI filter is a high-performance electronic component designed for effective electromagnetic interference suppression in industrial and electronic equipment. This filter operates at a maximum current of 3 amperes and supports a voltage rating of 250 volts AC/DC with an operating frequency of 400 Hz. It features a chassis mount configuration for secure installation and fast-on termination style connectors for rapid and reliable wiring.
The filter has an inductance of 14 millihenries and capacitance of 330 nanofarads, delivering excellent attenuation of conducted noise with a power loss of just 2.2 watts. Its compact size, measuring 71 mm in length, 46.6 mm in depth, and 22.3 mm in height, allows for easy integration into compact assemblies. Suitable for a wide range of applications, including domestic appliances, medical devices, electronic data processing equipment, and other noisy environments requiring clean power supply filtering.
Operating temperature ranges from -25°C to 100°C with a very low leakage current of 2 microamperes, ensuring safety and reliability in demanding conditions. The FN2030 series uses premium choke cores with high permeability providing superior thermal behavior and high differential mode attenuation.
This EMI filter supports various environments, including industrial manufacturing, laboratory settings, and consumer electronics, helping to improve system performance by minimizing electromagnetic disturbances. The chassis mount and fast-on connectors make it convenient for installation and maintenance.
Premium two-stage EMI filtering for high attenuation performance. Compact chassis mount design for versatile use. Fast-on termination style for efficient wiring. High operating temperature range and low leakage current. Suitable for diverse applications including medical and data processing equipment.
High-quality choke construction for excellent thermal and electrical characteristics. Designed to comply with international standards such as UL 1283, CSA 22.2 No.8, EN 133 200, and IEC 60939. Explore the range of Schaffner EMI Filters in the Power Line Filters category at EnvMart for reliable electromagnetic noise mitigation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2030 EMI filter has a maximum current rating of 3 amperes.
It supports a voltage rating of 250 volts AC/DC.
This EMI filter operates effectively at a frequency of 400 Hz.
The dimensions of the FN2030 are 71 mm in length, 46.6 mm in depth, and 22.3 mm in height.
It operates within a temperature range of -25°C to 100°C.
The leakage current for this model is 2 microamperes.
The power loss under normal operating conditions is minimal at 2.2 watts.
It has an inductance of 14 millihenries and capacitance of 330 nanofarads.
This model features a fast-on termination style for quick and secure connections.
It is suitable for use in household appliances, medical devices, electronic data processing equipment, and noisy industrial applications.
This EMI filter is designed to comply with international standards such as UL 1283, CSA 22.2 No.8, EN 133 200, and IEC 60939.
The FN2030 is designed for chassis mount installation, allowing for secure placement in various applications.
