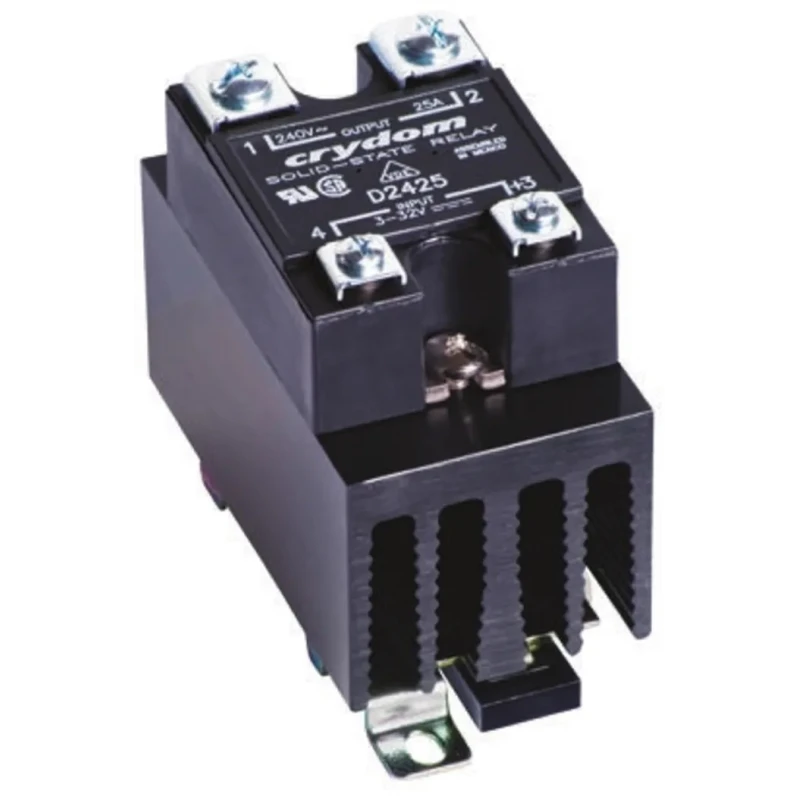

Crydom Solid State Relay DIN Rail Mount 24 A Load 280 V AC Load 32 V Control HS301DR

Crydom HS301DR is a high-performance Solid State Relay specifically engineered for demanding industrial, automation, and electrical control applications. It supports a maximum load current of 24 A and a maximum load voltage of 280 V AC, making it ideal for heavy-duty AC load switching. The relay features a single channel output and uses zero cross switching technology, which significantly reduces electrical noise and extends operational longevity.

It is mounted on a DIN rail with a built-in thermal pad to enhance heat dissipation during operation. The control input voltage range is from 3 V to 32 V DC, allowing compatibility with diverse control systems. The device is equipped with screw terminals ensuring secure and reliable electrical connections.

The relay operates efficiently within a temperature range of -40°C to 80°C, making it suitable for various industrial environments. Its compact design with dimensions 97.8 mm (length) x 45 mm (width) x 46.5 mm (height) facilitates easy integration into control panels and systems.

This model complies with multiple international certifications including CSA, RoHS, UL, VDE, and CE, ensuring safety and environmental standards compliance. The off state leakage current is minimal at 10 mA, and it features an output capacitance of 8 pF, critical for stable operation in control circuits.

The Crydom HS301DR solid state relay is especially useful in automation systems, manufacturing controls, HVAC units, and power distribution applications that require quiet, reliable switching of large AC loads. Its robust contact configuration (SPST-NO) ensures precise and dependable switching performance.

Single channel output suitable for controlling AC loads. DIN rail mount with thermal pad for efficient heat dissipation. Operating control voltage range from 3 V to 32 V DC. Zero cross switching function to reduce electrical noise and prolong relay life.

Compact dimensions of 97.8 mm length, 45 mm width, and 46.5 mm height. Screw terminal type for secure electrical connections. Wide operating temperature range from -40°C to 80°C. Compliant with CSA, RoHS, UL, VDE, and CE standards.

Low off state leakage current of 10 mA and capacitance of 8 pF. Reliable SPST-NO contact configuration for precise switching. Explore Crydom Solid State Relays and other industrial automation components at EnvMart for high-quality, reliable electrical control solutions.
