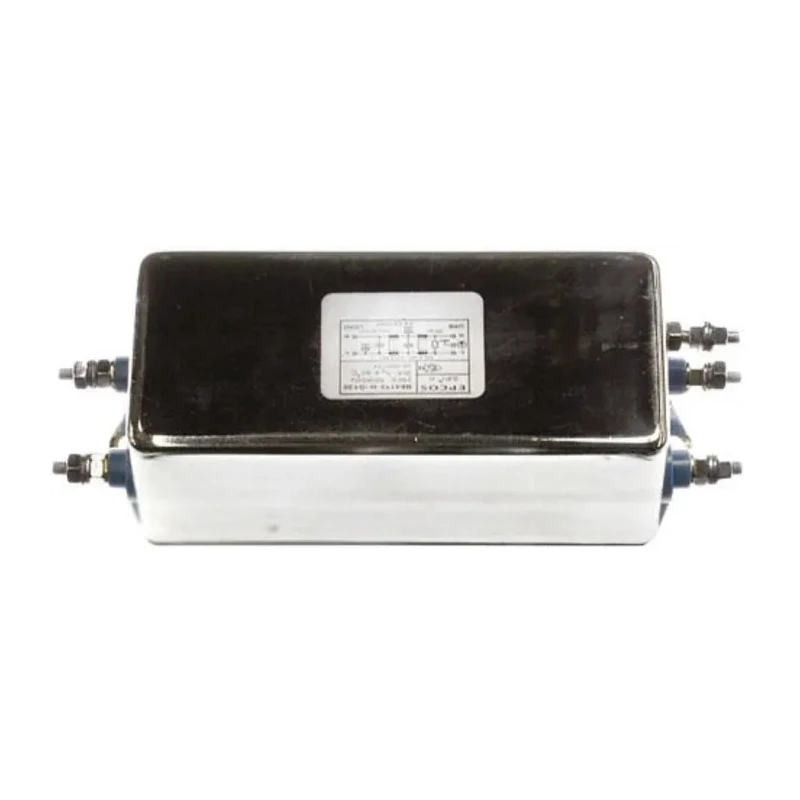

TDK Chassis Mount EMC Power Line Filter 25A 250V ac/dc 50Hz 60Hz Screw Termination Single Phase B84113H0000G125

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Power Line Filter 25A 250V ac/dc 50Hz 60Hz Screw Termination Single Phase B84113H0000G125



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	53mm
Length	59mm
Model	B84113H0000G125
Depth	177mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84113H
Maximum Operating Temperature	100°C
Number Of Stages	2
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	25A
Number of Phases	1
Leakage Current	1.73mA
Maximum Voltage	250V ac/dc
Inductance	4mH
Standards/Approvals	UL 1283
Termination Style	Screw

Key Features

Designed for single-phase power line applications.
Features chassis mount style with screw termination for secure installation.
Low leakage current of 1.73mA ensures efficient filtering performance.
2-stage filter configuration enhances EMI suppression.
Operates reliably in temperatures ranging from -25°C to 100°C.
Incorporates 2pF capacitance and 4mH inductance for effective noise attenuation.
Polyurethane potting with UL 94 V-0 rating for safety and durability.
Meets UL 1283, ENEC10, UL and cUL safety standards.

Product Description

TDK B84113H0000G125 is a high-quality chassis mount EMC power line filter designed for industrial and electronic applications requiring effective electromagnetic interference suppression. Rated for a maximum current of 25A and voltage of 250V ac/dc, this single-phase filter operates efficiently at 50Hz and 60Hz frequencies.

The filter employs a 2-stage design with a capacitance of 2pF and inductance of 4mH, delivering low leakage current of 1.73mA. Its compact chassis mount form factor with screw termination style ensures easy and secure installation in various equipment.

Constructed with polyurethane potting certified to UL 94 V-0, it offers enhanced safety and durability. The filter meets key safety approvals such as UL 1283, ENEC10, UL, and cUL, making it compliant for use in global markets.

Operating temperature range from -25°C to 100°C allows deployment in diverse environmental conditions without performance degradation. The physical dimensions are 59mm length, 53mm height, and 177mm depth, enabling integration into compact assemblies.

This EMC filter is especially suitable for switched mode power supplies in telecommunications, data communication systems, and industrial electronic equipment where noise suppression and power line conditioning are critical.

Designed for single-phase power line applications. Low leakage current of 1.73mA reduces power losses. Robust construction with UL 94 V-0 polyurethane potting. Meets rigorous UL and ENEC safety standards. Compact chassis mount form factor with screw termination.

Wide operating temperature range from -25°C to 100°C. Effective EMI attenuation with 2pF capacitance and 4mH inductance. 2-stage filter design enhances noise suppression. Ideal for telecom and data switched mode power supplies.

Chinese manufactured product ensuring quality standards. Explore more premium EMC filters in the Power Line Filters category on EnvMart for reliable electromagnetic compatibility solutions.
