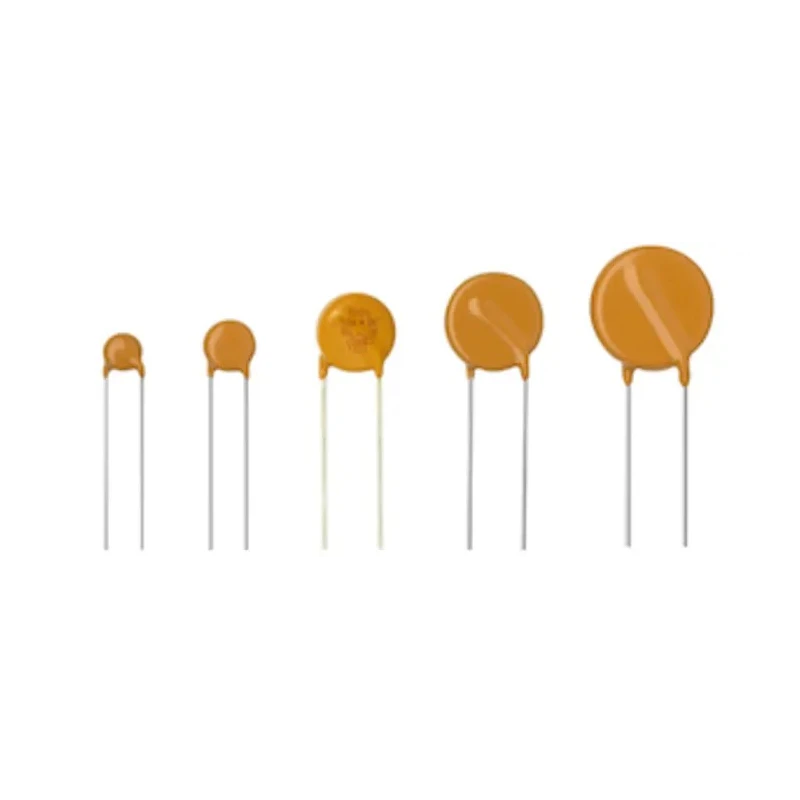

Vishay Metal Oxide Varistor Through Hole Disc 16.5mm 440pF 50A Clamping 710V VDRS14T275BSE
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 16.5mm |
| Brand | Vishay |
| THICKNESS | 5.4mm |
| Length | 35mm |
| Model | VDRS14T275BSE |
| Mount Type | Through Hole |
| Series | VDRS |
| Energy Rating | 496J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 440pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Package/Case | Disc |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 710V |
| Clamping Current | 50A |
| Maximum Surge Current | 4.5kA |
| Varistor Voltage | 430 V |
Key Features
- The varistor voltage is 430 V, ensuring surge protection for electronic circuits.
- The device features a 16.5mm diameter disc form factor with radial termination style.
- It operates within a temperature range of -40°C to 85°C for reliable performance.
- Maximum surge current handling is 4.5kA, suitable for transient voltage suppression.
- The component complies with IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA standards.
- The varistor is coated with halogen-free insulating epoxy for environmental safety.
- Its pin count is 2 with a lead pitch of 7.5mm, compatible with through-hole PCB mounting.
- The energy rating of this varistor is 496J, enabling robust energy absorption capability.
Product Description
Vishay VDRS14T275BSE Metal Oxide Varistor is a high-quality through hole disc designed for surge protection in various electronic and industrial applications. This varistor features a capacitance of 440pF and supports a clamping current of 50A with a peak clamping voltage of 710V, making it effective for transient voltage suppression.
Its zinc oxide disc with halogen-free insulating epoxy coating ensures environmental compliance and durability. The device has a diameter of 16.5mm and a thickness of 5.4mm, with a pin count of 2 and a lead pitch of 7.5mm, suitable for through-hole PCB mounting.
Operating temperature ranges from -40°C to 85°C, allowing performance stability under varying environmental conditions. The varistor complies with international safety standards including IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA certifications, assuring quality and reliability.
With maximum AC voltage of 680V and DC voltage of 895V, it can handle surges up to 4.5kA with an energy rating of 496J, suitable for industrial electronics, power supply protection, and surge suppression tasks.
The varistor voltage is 430 V, ensuring surge protection for electronic circuits. The device features a 16.5mm diameter disc form factor with radial termination style. It operates within a temperature range of -40°C to 85°C for reliable performance.
Maximum surge current handling is 4.5kA, suitable for transient voltage suppression. The component complies with IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA standards. The varistor is coated with halogen-free insulating epoxy for environmental safety.
Its pin count is 2 with a lead pitch of 7.5mm, compatible with through-hole PCB mounting. The energy rating of this varistor is 496J, enabling robust energy absorption capability. This product is manufactured in China and is intended for industrial and electronics applications.
Ideal for use in industrial circuits, power distribution protection, electronic equipment safeguarding, and other electrical surge suppression roles, ensuring device longevity and safety.
Explore more high-performance Varistors and related components on EnvMart for your electronic and industrial protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of this model is 430 V, providing effective surge protection for electronic circuits.
It can handle a maximum surge current of 4.5 kA, making it suitable for transient voltage suppression applications.
The clamping voltage for this varistor is 710 V, which is the voltage level at which it begins to conduct to protect circuits from surges.
This model has a diameter of 16.5 mm and a thickness of 5.4 mm, with a lead pitch of 7.5 mm for through-hole PCB mounting.
The energy rating of this varistor is 496 J, which indicates its capacity for energy absorption during surge events.
It operates within a temperature range of -40°C to 85°C, ensuring reliable performance under various environmental conditions.
This model complies with IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA standards, ensuring its safety and reliability.
The capacitance of this varistor is 440 pF, which is relevant for its performance in surge protection applications.
It features a radial termination style, which is suitable for through-hole mounting on PCBs.
The maximum AC voltage rating is 680 V, while the maximum DC voltage rating is 895 V, allowing it to be used in various applications.
This varistor has a pin count of 2, which is typical for through-hole components.
It is suitable for industrial circuits, power distribution protection, and electronic equipment safeguarding against electrical surges.
