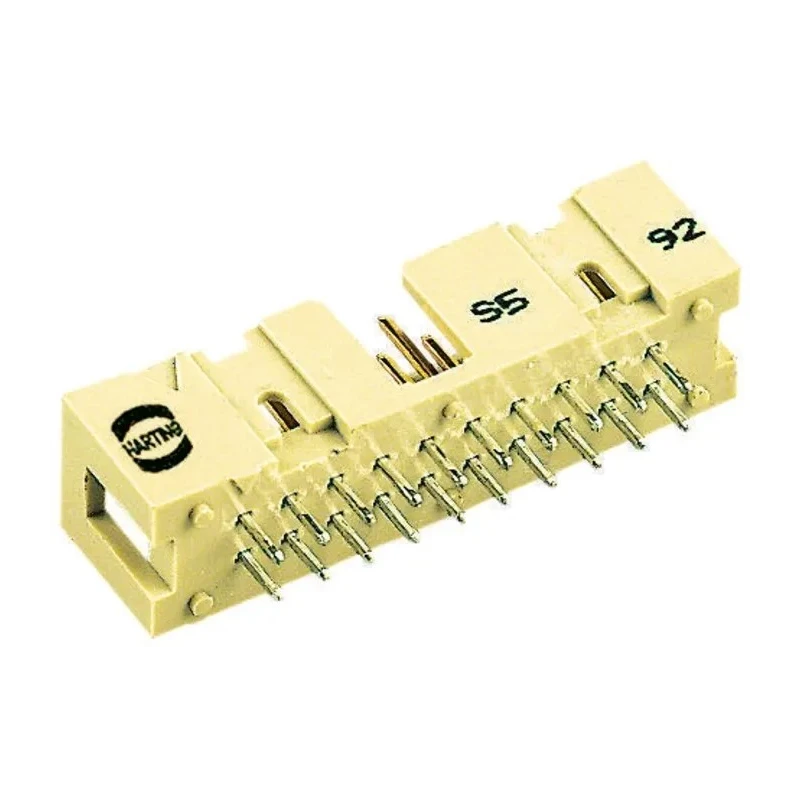

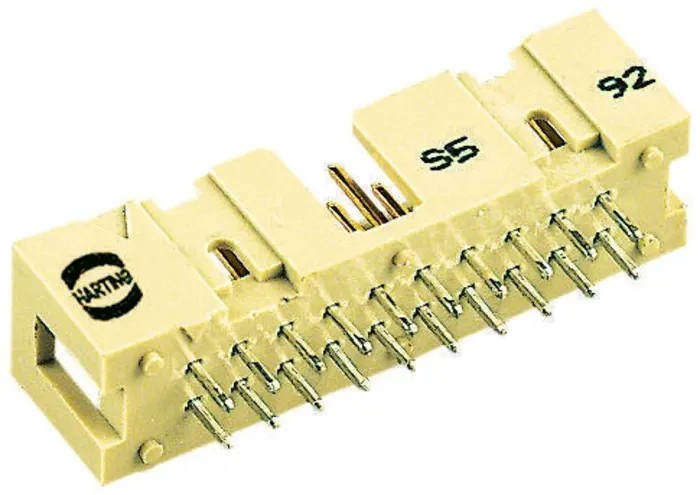

HARTING PCB Header SEK 18 Series Straight Through Hole, 6 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 09185066324

Free Delivery in India | Lowest Global Shipping Charges

HARTING PCB Header SEK 18 Series Straight Through Hole, 6 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 09185066324

Name: HARTING PCB Header SEK 18 Series Straight Through Hole, 6 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 09185066324
Brand: HARTING
SKU: 213131
Price: 1.92 USD
Availability: InStock



Category PCB Header Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with polybutylene terephthalate housing for durability.
Contact material is copper alloy with gold plating for excellent conductivity and corrosion resistance.
Rated for 1A current and operating voltage up to 1 kV.
Designed for through hole mounting and solder termination for reliable PCB connection.
Shrouded design ensures secure mating and protection of contacts.
Operating temperature range from -55°C to 125°C, suitable for diverse environments.
Straight orientation facilitates straightforward connection and assembly.
Compliant with IEC 60 603-13 standards and carries UL approvals.

Product Description

HARTING 09185066324 PCB Header SEK 18 Series is engineered as a straight through hole connector with 6 contacts arranged in 2 rows with a fine 2.54 mm pitch. The connector is designed for wire-to-board connectivity, utilizing a durable polybutylene terephthalate housing that provides robust mechanical and thermal stability.

Constructed with copper alloy contacts plated with gold, this header offers strong electrical performance, ensuring low contact resistance and excellent corrosion protection. It is specified for a continuous current rating of 1A and can withstand voltage up to 1 kV, making it a reliable component in electronic circuits requiring compact and efficient PCB interfacing.

The shrouded design provides enhanced protection by preventing accidental contact and ensuring precise connector alignment during assembly. Featuring through-hole mount type with solder termination, the product facilitates strong and durable connections suited for industrial, laboratory, and manufacturing applications.

Operational within a temperature range of -55°C to 125°C, this connector can perform reliably under harsh temperature conditions commonly encountered in electronics manufacturing, construction, automation, and control gear systems.

Standards compliance includes IEC 60 603-13 and UL approvals, underscoring the product's quality and safety in electronic component applications. Durable polybutylene terephthalate housing for mechanical stability. Gold plated copper alloy contacts for reliable conductivity.

1A current rating and 1 kV voltage compatibility for versatile electronic uses. Through hole mount with solder termination for secure PCB connections. Shrouded design ensuring protection and alignment. Wide operating temperature range of -55°C to 125°C.

IEC 60 603-13 standard compliant with UL approvals.

This HARTING SEK 18 PCB Header is ideal for applications in electronics manufacturing, industrial automation, power distribution, instrumentation, HVAC, and communication equipment. Its robust design, ample contact configuration, and reliable electrical performance make it suitable for both prototyping and high-volume production environments.
