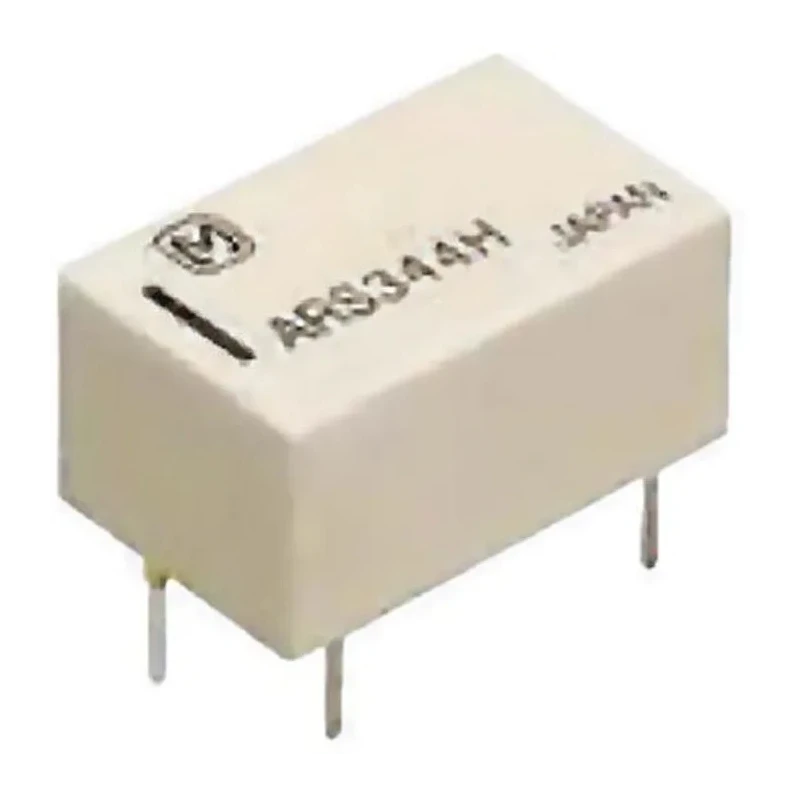

Panasonic High Frequency Relay Through Hole 4.5V DC Coil 3 GHz Max Coil Frequency SPDT ARS114H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 7.2mm |
| Length | 14mm |
| Model | ARS114H |
| Mount Type | Through Hole |
| Isolation | 30dB |
| Contact Material | Gold Plated |
| Series | ARS |
| Maximum Operating Temperature | 70°C |
| Coil Type | Latching |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Coil Resistance | 101.3Ω |
| Coil Power | 200mW |
| Insertion Loss | 0.5dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- Compact super miniature design measuring 14mm length and 7.2mm height.
- Single Pole Double Throw (SPDT) contact configuration with gold plated contacts.
- Coil resistance of 101.3 ohms and coil power consumption of 200mW.
- Excellent high frequency characteristics with insertion loss of 0.5dB and isolation of 30dB.
- Suitable for broadcasting, video, measurement, mobile phone base, and communications applications.
- Operating temperature range from -40°C to 70°C for reliable performance.
- Through hole mount type with solder terminal for secure PCB installation.
- Latching coil type designed for stable operation in high frequency circuits.
Product Description
Panasonic ARS114H High Frequency Relay features a through hole mount design optimized for high frequency applications. The SPDT contact configuration with gold plated contacts ensures reliable switching performance with minimal contact resistance of 100mΩ. The relay operates efficiently using a 4.5V DC coil with a power consumption of just 200mW and has a coil resistance of 101.3Ω.
Designed for frequencies up to 3 GHz, this relay provides an insertion loss of only 0.5dB and an isolation of 30dB, making it ideal for broadcasting equipment, video systems, measurement devices, mobile phone base stations, and other communications applications that require high frequency signal switching.
The super miniature size of 14mm length by 7.2mm height allows for compact circuit designs. It is rated for operation in temperatures ranging from -40°C to 70°C, providing robust performance under various environmental conditions. The latching coil type offers stable state retention without continuous coil power.
Compact super miniature design measuring 14mm length and 7.2mm height. Single Pole Double Throw (SPDT) contact configuration with gold plated contacts. Coil resistance of 101.3 ohms and coil power consumption of 200mW. Excellent high frequency characteristics with insertion loss of 0.5dB and isolation of 30dB.
Suitable for broadcasting, video, measurement, mobile phone base, and communications applications. Operating temperature range from -40°C to 70°C for reliable performance. Through hole mount type with solder terminal for secure PCB installation.
Latching coil type designed for stable operation in high frequency circuits. Explore the full range of HF & RF Relays for industrial, laboratory, telecommunications, and electrical automation applications on EnvMart.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can operate at a maximum coil frequency of 3 GHz, making it suitable for high frequency applications.
The coil power consumption is 200mW, which allows for efficient operation in various applications.
The relay has a compact design measuring 14mm in length and 7.2mm in height, making it suitable for tight spaces in circuit designs.
This model uses a through hole mount type with solder terminals, ensuring secure installation on PCBs.
It operates effectively within a temperature range of -40°C to 70°C, allowing for reliable performance in various environments.
The insertion loss is 0.5dB, indicating minimal signal loss during operation, which is crucial for high frequency applications.
This model provides an isolation of 30dB, ensuring effective separation between input and output signals.
The contacts of this relay are gold plated, which helps reduce contact resistance and improve reliability.
The coil resistance is 101.3 ohms, which is a key specification for ensuring proper operation in circuits.
It is suitable for broadcasting, video, measurement, mobile phone base stations, and various communications applications requiring high frequency signal switching.
This relay uses a latching coil type, which retains its state without continuous power, enhancing energy efficiency in applications.
