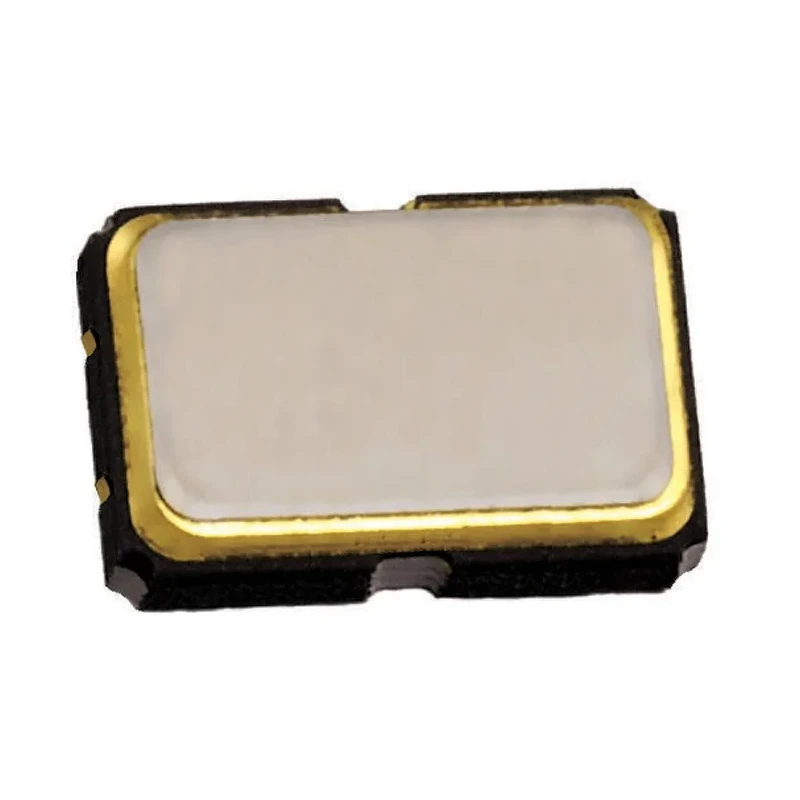

Euroquartz 9.8304 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.2 mm 12pF 9.8304MHz MQ/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 1.2mm |
| Length | 7mm |
| Model | 9.8304MHz MQ/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 9.8304MHz |
| Load Capacitance | 12pF |
| Series Resistance | 60Ω |
Key Features
- Standard frequency of 9.8304 MHz with ±30 ppm tolerance ensures accurate timing.
- Surface mount package with 4 pins suitable for compact circuit designs.
- Load capacitance of 12 pF ideal for stable oscillation in electronic circuits.
- Operates reliably from -40°C to 85°C temperature range for diverse environments.
- Series resistance of 60 Ω supports stable electrical performance.
- RoHS compliant, meeting environmental and safety standards.
Product Description
Euroquartz 9.8304MHz MQ/30/30/-40+85/12pF crystal surface mount 4-pin device provides precise frequency control for demanding electronic applications, ensuring superior oscillator stability with ±30 ppm frequency tolerance.

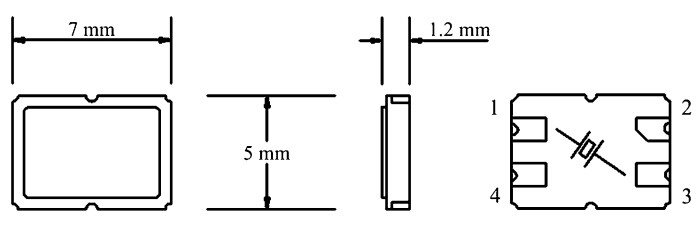

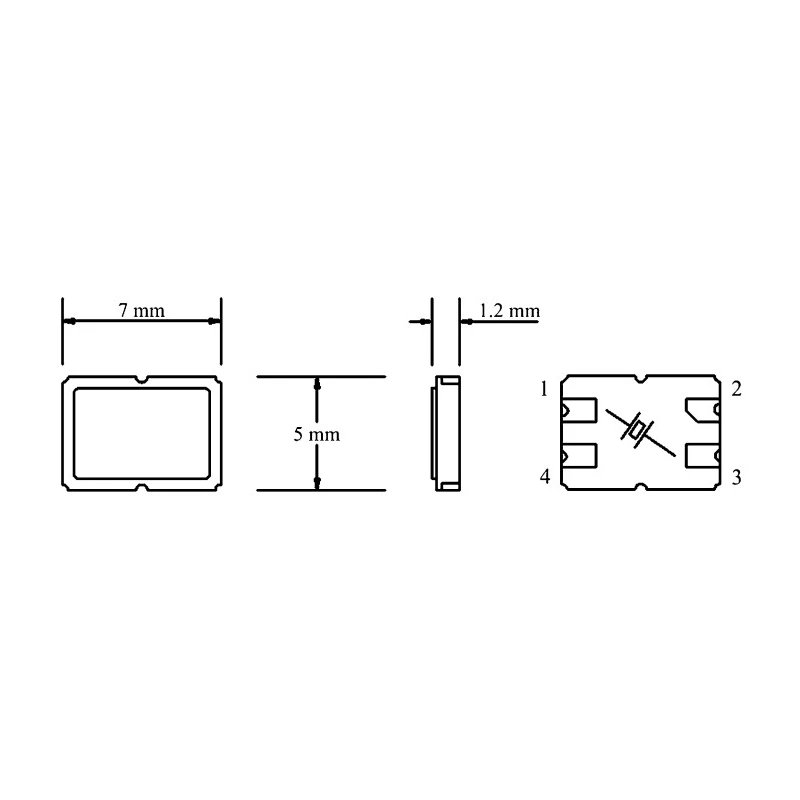

This crystal features a surface mount package type with a compact 7 mm length, 5 mm width, and 1.2 mm height, optimized for space-saving PCB layouts in industrial, communication, consumer electronics, and instrumentation devices.
The 12 pF load capacitance supports consistent oscillation frequency making it suitable for timing devices, frequency control circuits, and microcontroller clock sources. Its operational temperature range from -40°C to 85°C ensures performance longevity under varying environmental conditions.
The device presents a series resistance of 60 Ω which contributes to its stable electrical properties. RoHS compliance guarantees adherence to environmental directives for lead-free manufacturing.
Packaged in tape & reel format, it supports automated surface-mount assembly lines enhancing production efficiency. Standard frequency: 9.8304 MHz with tight tolerance of ±30 ppm. Compact surface mount design, 4 pins, size 7x5x1.2 mm.
Load capacitance of 12pF for optimal oscillation performance. Wide operating temperature range, -40 to 85°C. Series resistance at 60 Ω for electrical stability. RoHS compliant, environmentally safe. Packaging in tape & reel for streamlined manufacturing.
This crystal unit is ideal for critical frequency applications in industrial electronics, communication equipment, automotive electronics, and high-precision timing instrumentation. Euroquartz crystals are designed for durability and precision to meet stringent industrial and commercial requirements.
Explore our wide selection of precision Crystal Units and related electronic components on EnvMart for reliable performance in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 9.8304 MHz.
This model has a load capacitance of 12 pF, which is ideal for stable oscillation in electronic circuits.
The dimensions of this surface mount crystal are 7 mm in length, 5 mm in width, and 1.2 mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The series resistance of this crystal unit is 60 Ω, which supports stable electrical performance.
This model is packaged in tape & reel format, which supports automated surface-mount assembly lines.
Yes, this crystal unit is RoHS compliant, ensuring it meets environmental and safety standards for lead-free manufacturing.
It has 4 pins, suitable for compact circuit designs.
This crystal uses a surface mount type, optimized for space-saving PCB layouts.
This model is suitable for critical frequency applications in industrial electronics, communication equipment, automotive electronics, and high-precision timing instrumentation.
The ±30 ppm tolerance ensures accurate timing and superior oscillator stability for demanding electronic applications.
The country of origin for this crystal unit is Taiwan.
