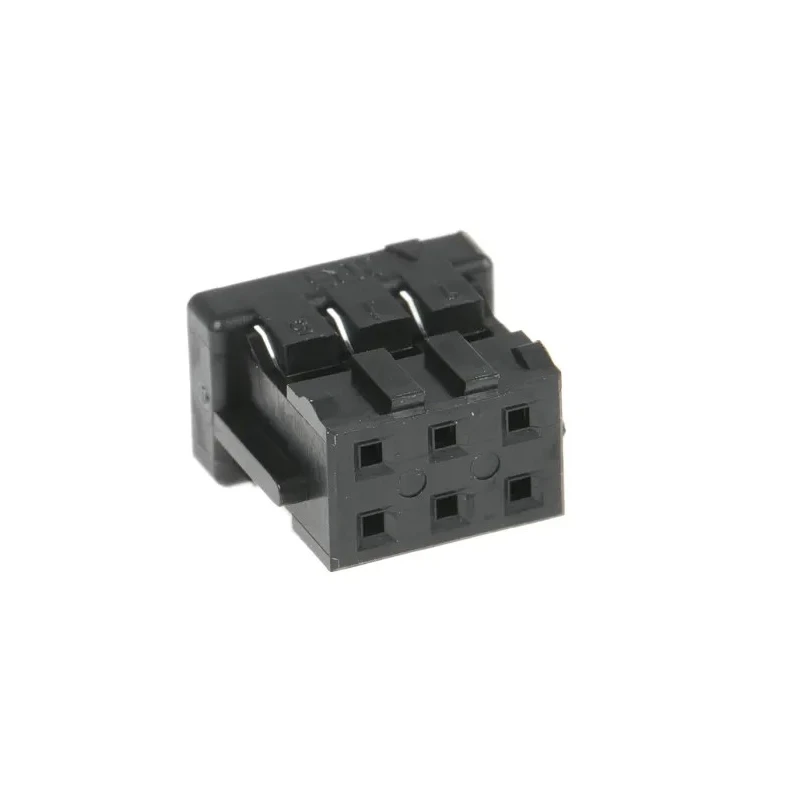

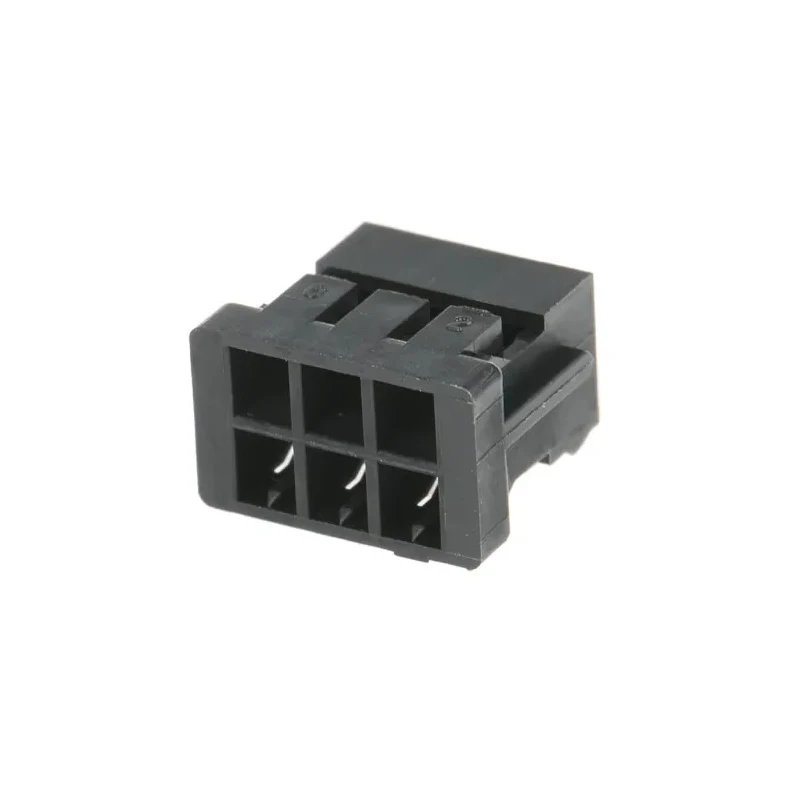

Hirose DF11 Female Connector Housing 2 mm Pitch 6 Way 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 8mm |
| Model | DF11 |
| Width | 5mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Compact double row design with 6 contact positions.
- 2 mm pitch for precise pin spacing.
- Straight orientation for cable mounting.
- Housing made from durable polyamide material.
- Locking mechanism to ensure secure mating connection.
- Guide ribs to prevent incorrect insertion and twisting.
- Measures 8 mm length and 5 mm width for space-saving assembly.
- Compatible with DF11 series connectors and requires separate crimp contacts.
Product Description
Hirose DF11-6DS-2C female connector housing is a precision-engineered electrical connector housing designed with a 2 mm pitch and 6 way, double row straight cable mount configuration. This connector housing features a compact double row design with a depth under 5 mm, allowing efficient use of space by fitting double rows of contacts within the footprint typical of single row assemblies.
Constructed from high-quality polyamide, the housing ensures durability and electrical insulation suitable for electronic assemblies in demanding environments. The connector incorporates guide ribs to prevent incorrect insertion or twisting during mating. A secure locking mechanism further guarantees a reliable mating connection to the matching header, improving operational stability.
This connector housing measures 8 mm in length and 5 mm in width, making it ideal for compact portable electronic devices, digital cameras, LCD displays, and automotive navigation systems. The product is specifically designed for use with the Hirose DF11 series connectors, and crimp contacts must be purchased separately to complete the assembly.
The compact design of this female connector housing supports multiple signal lines in limited space, meeting the needs of modern electronic devices requiring dense, reliable interconnections.
Compact double row design with 6 contact positions. 2 mm pitch for precise pin spacing. Housing material is robust polyamide. Locking mechanism ensures secure connection. Guide ribs to prevent mismating and twisting. Length of 8 mm and width of 5 mm for efficient footprint utilization.
Compatible with DF11 series connectors; requires separate crimp contacts.
This Hirose female Connector Housing is essential for industrial, electronic manufacturing, automotive, and digital equipment applications where reliable and compact connectors are critical. Browse the Electronics Components category at EnvMart for related connectors, housings, and cable assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2 mm, allowing for precise pin spacing.
It supports 6 contact positions in a double row configuration.
The connector housing has a straight orientation for cable mounting.
The housing is constructed from durable polyamide material, providing electrical insulation.
The housing measures 8 mm in length and 5 mm in width, making it compact for space-saving assembly.
Yes, it is specifically designed for use with the Hirose DF11 series connectors.
No, crimp contacts must be purchased separately to complete the assembly with this housing.
It includes guide ribs that prevent incorrect insertion and twisting during mating.
It is suitable for applications in industrial, electronic manufacturing, automotive, and digital equipment where compact connectors are critical.
It features a secure locking mechanism that ensures a reliable mating connection to the matching header.
The country of origin for this connector housing is Japan.
This model supports cable mounting, making it suitable for various electronic assemblies.
