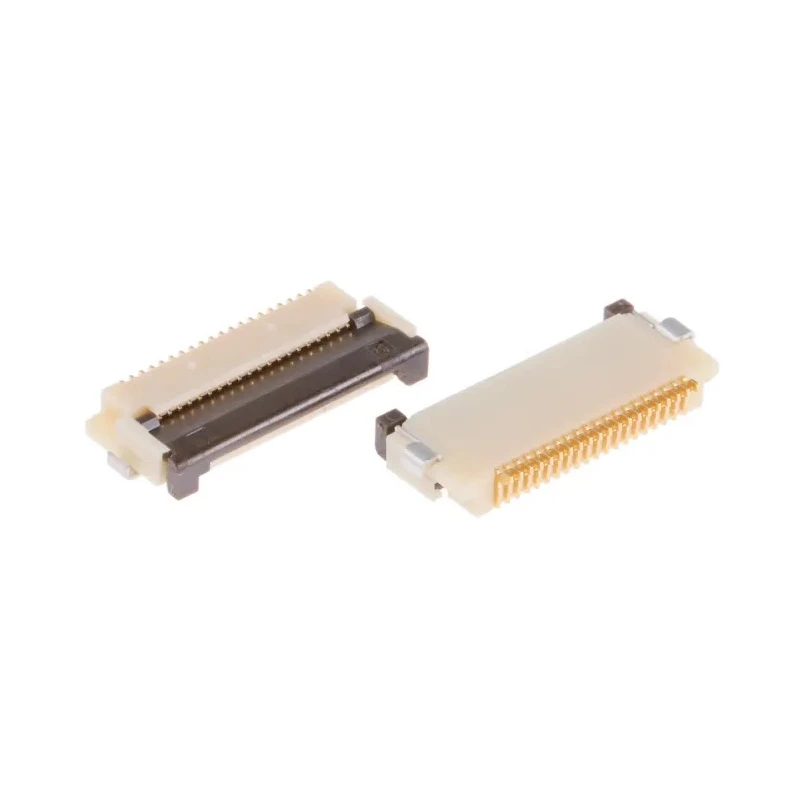

Hirose FH12 0.5 mm Pitch 20 Way Right Angle Female FPC Connector, Solder FH12

Hirose FH12 0.5 mm Pitch 20 Way Right Angle Female FPC Connector is a solder termination connector featuring a bottom contact position suitable for surface mounting applications. It utilizes a zero insertion force (ZIF) one-touch rotating actuator that simplifies mating and releases the cable without damage. This actuator design produces a tactile click that confirms secure connection, improving assembly reliability.

This FH12 series connector is engineered for high density PCB usage where space optimization is critical. Its right angle and single row 20-contact configuration allow for compact designs in portable electronic devices such as mobile phones, GPS units, notebook PCs, data terminals, LCD TVs, and digital cameras.

Manufactured from phosphor bronze contacts with gold plating and housed in robust polyamide material, this connector assures high conductivity and mechanical endurance. It is rated at 50V AC and 500mA current, operating reliably within a temperature range of -40°C to 70°C.

The locking mechanism enhances retention force and prevents accidental disconnection, making it suitable for applications requiring secure electronic connections in industrial, consumer electronics, and communication systems.

This product is made in Japan and conforms to the FH12 series standards for compact FPC/FFC connections, supporting both top and bottom mounting configurations with a focus on zero insertion force for easy board assembly.

Features a one-touch rotating ZIF actuator enabling easy connector operation. Provides tactile click confirmation when fully mated to ensure secure connection. Designed for high density PCB mounting with space-saving right angle orientation.

Constructed with phosphor bronze contacts plated with gold for reliable conductivity. Rated for 50V AC voltage and 500mA current carrying capacity. Supports operating temperatures from -40°C to 70°C ensuring durability in diverse conditions.

Incorporates polyamide housing material for mechanical stability and insulation. Includes locking mechanism to maintain connection integrity during use.

Suitable for electronic manufacturing, consumer and industrial electronics assembly, telecommunications equipment, and precision instrumentation involving FPC or FFC connections. Find more electronic components and connectors at EnvMart.
