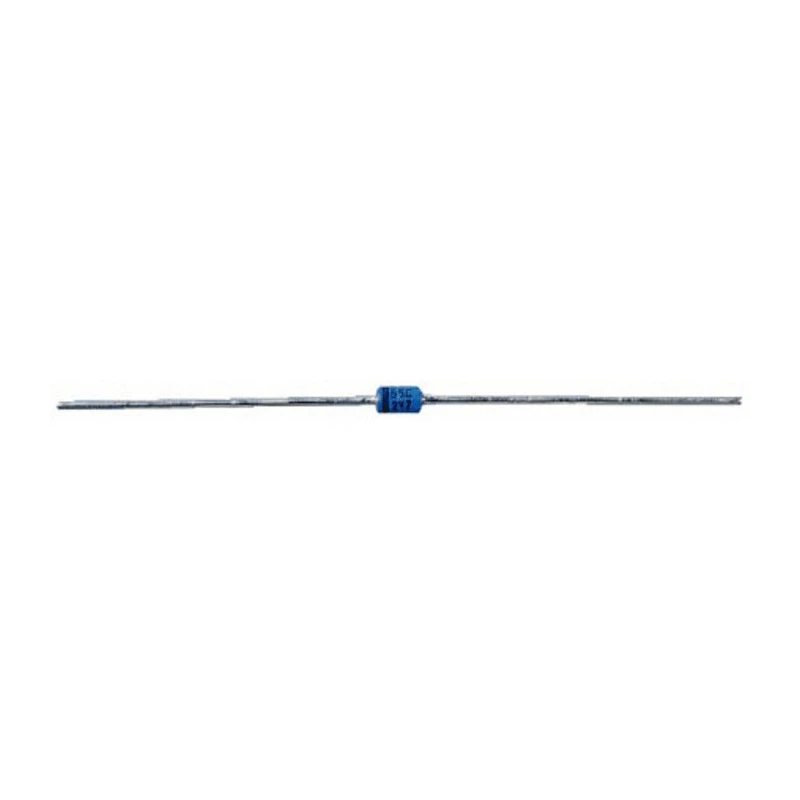

Taiwan Semiconductor 1.47 V Zener Diode Single 1 W Through Hole 2-Pin DO-41 1N4756A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4756A |
| Mount Type | Through Hole |
| Series | 1N4756A |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 5.5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
Key Features
- This diode features a single diode configuration with 2 pins for easy circuit integration.
- It has a nominal Zener voltage rating of 47 V and a test current of 5.5 mA.
- Designed for voltage regulation applications with a ±5% tolerance on Zener voltage.
- Maximum power dissipation is rated at 1 watt for reliable performance under thermal stress.
- Operates between -65°C and 200°C, suitable for various industrial and electronic uses.
- Maximum reverse leakage current is 5 µA ensuring minimal leakage in low voltage operation.
- Maximum Zener impedance of 80 Ω for precise voltage regulation control.
- Designed as a robust voltage regulator diode for industrial, electronic components, and power supply applications.
Product Description
Taiwan Semiconductor 1N4756A is a high-quality 1.47 V Zener Diode designed for voltage regulation purposes, offering 1 watt maximum power dissipation. It is supplied in a through-hole DO-41 package with 2 pins, making it suitable for various electronic assembly methods.
Its nominal Zener voltage of 47 V and ±5% voltage tolerance make it highly reliable for precision voltage regulation in power supply circuits, industrial electronics, and embedded systems. The diode's test current stands at 5.5 mA with a maximum Zener impedance of 80 Ω, ensuring stable and consistent voltage regulation.
With a robust operating temperature range from -65°C up to 200°C, this diode can be used in demanding environments, including industrial automation, telecommunications, and consumer electronics. Its compact dimensions (length 5.2 mm, height 2.7 mm) allow for efficient PCB layout design.
The device has low maximum reverse leakage current of 5 μA, enhancing circuit efficiency and minimizing power losses. As a voltage regulator diode in the 1N47xxA series, it is suited for protecting sensitive components from voltage spikes and maintaining voltage stability.
This is a single diode configuration for voltage regulation. Maximum power dissipation is rated at 1 W, ensuring durability under load. Operating temperature range supports use in harsh environments. Through-hole mount type simplifies assembly and prototyping.
Ideal for use in electronic component manufacturing and power supply stabilization. 2-pin DO-41 package is standard for robust electronic mounts.
This Taiwan Semiconductor 1N4756A Zener diode is an essential component in industrial electronics, power regulation units, and embedded systems. Its precise and reliable operation supports effective voltage regulation across multiple applications.
Explore more semiconductor and electronic components at EnvMart for diverse industrial and electronics manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of the 1N4756A is 47 V.
The maximum power dissipation for the 1N4756A is rated at 1 watt.
This model operates within a temperature range of -65°C to 200°C.
The maximum reverse leakage current for the 1N4756A is 5 µA.
The maximum Zener impedance is 80 Ω, which helps in maintaining precise voltage regulation.
The test current for this diode is 5.5 mA.
The 1N4756A is designed for through-hole mounting, making it suitable for various electronic assembly methods.
The dimensions of this diode are 5.2 mm in length and 2.7 mm in height.
This model features a single diode configuration with 2 pins.
The 1N4756A is commonly used in voltage regulation applications for power supply circuits and industrial electronics.
The diode is supplied in a DO-41 package type.
The 1N4756A is manufactured in India.
