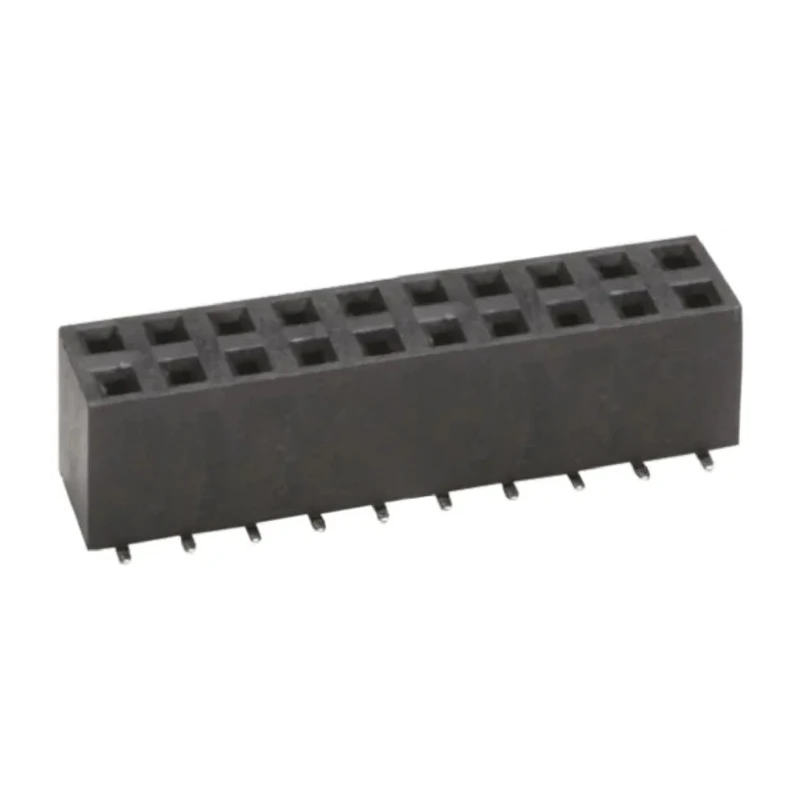

HARWIN M20 Series Straight Surface PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder M20-7871042
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7871042 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features 20 contacts arranged in 2 rows with a 2.54 mm pitch.
- Surface mount design ensures efficient PCB assembly and solder termination.
- Contacts are made of bronze with tin over nickel plating for durability and conductivity.
- Housing is constructed from robust nylon material suitable for industrial use.
- Designed for straight orientation with female contact gender for versatile connectivity.
- Operational temperature range from -40°C to 105°C supports harsh environments.
- Current rating of 12A to handle moderate power applications safely.
- Compliant with RoHS standards for hazardous substance reduction.
Product Description
HARWIN M20-7871042 Straight Surface PCB Socket is a precision 20-contact, 2-row connector designed with a 2.54 mm pitch and solder termination for secure and efficient board-to-board connections.
The housing is made from durable nylon, ensuring strong mechanical support and resistance to environmental factors. Its surface mount type and straight orientation make it ideal for modern PCB assembly methods. This socket supports a current rating of 12A and operates reliably in the temperature range of -40°C to 105°C, making it suitable for diverse industrial, communications, consumer electronics, drive controls, and personal computing applications.
The design includes dual entry points, allowing top and bottom access, enhancing flexibility in wire routing and installation. The tin over nickel plating on the contacts reduces corrosion risk while maintaining excellent conductivity. The connector system is board-to-board and employs a female contact configuration.
HARWIN's M20 Series PCB sockets conform to RoHS standards, ensuring environmentally compliant use in manufacturing. These sockets come supplied in tubes, facilitating automated insertion and improving production efficiency.
The socket offers 20 contacts arranged in 2 rows with a 2.54 mm pitch for precise alignment on PCBs. Surface mount termination type is optimized for solder assembly processes. Phosphor bronze contacts with tin over nickel plating provide high durability and corrosion resistance.
Nylon housing material guarantees robustness and environmental stability. Female contact gender and straight orientation cater to common board-to-board connections. Wide operational temperature range from -40°C to 105°C ensures reliable performance in various environments.
Current rating of 12A suits moderate power applications in industrial and commercial electronics. RoHS compliance supports use in eco-conscious manufacturing. Dual entry design offers greater installation flexibility by allowing both top and bottom wire access.
This HARWIN M20 Series PCB Socket is a trusted choice for engineers requiring a reliable, durable board connector capable of maintaining consistent electrical performance in demanding settings. Explore more PCB Sockets and connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, making it suitable for moderate power applications.
The operational temperature range for this socket is from -40°C to 105°C, allowing it to function reliably in harsh environments.
This socket uses solder termination, which is optimized for secure and efficient PCB assembly.
It features 20 contacts arranged in 2 rows with a 2.54 mm pitch for precise alignment on PCBs.
The housing is constructed from robust nylon material, suitable for industrial use.
The contacts are made of bronze and are plated with tin over nickel to enhance durability and conductivity.
This socket is designed with a straight orientation, which is common for board-to-board connections.
Yes, this socket is compliant with RoHS standards, which support the reduction of hazardous substances in manufacturing.
It employs a board-to-board connector system, featuring a female contact configuration for versatile connectivity.
The contacts are arranged with a pitch of 2.54 mm, ensuring compatibility with standard PCB layouts.
This socket is suitable for various applications including industrial, communications, consumer electronics, drive controls, and personal computing.
It comes supplied in tubes, which facilitates automated insertion and improves production efficiency during assembly.
