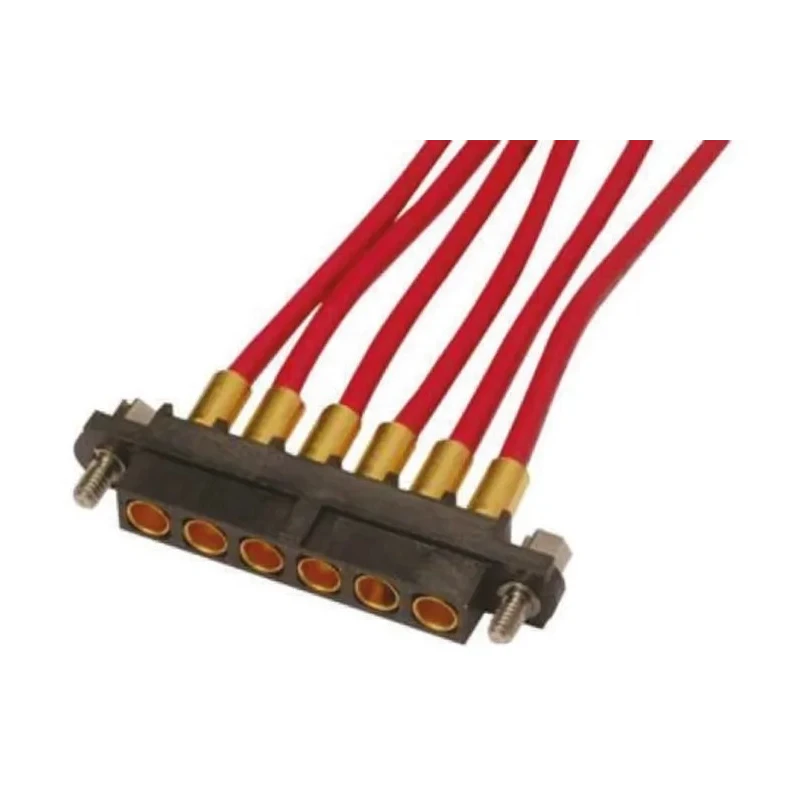

HARWIN Datamate Mix-Tek Series Straight Panel PCB Socket 6-Contact 1 Row 4 mm Pitch Crimp M80-4000000F1-06-327-00-000
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-4000000F1-06-327-00-000 |
| Mount Type | Panel |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Brass |
| Series | Datamate Mix-Tek |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Datamate |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for high reliability in military, aerospace, and industrial use cases.
- Features a straight panel mount with a robust polyphenylene sulphide housing.
- Conducts 12A current with gold-plated brass female contacts for corrosion resistance.
- Operates reliably between -55°C and 125°C temperature ranges for harsh environments.
- Provides polarization and shrouded contact protection to prevent mis-mating.
- Compatible with 12 AWG cable and includes hexagonal slotted jackscrews for secure connection.
- Suitable for board-to-board connector systems in critical electronics assemblies.
Product Description
HARWIN M80-4000000F1-06-327-00-000 is a high-quality PCB socket from the Datamate Mix-Tek Series, engineered for panel mounting with 6 female contacts in a single row and a 4 mm pitch crimp termination. It is manufactured from polyphenylene sulphide housing with gold-plated brass contacts ensuring excellent electrical performance and corrosion resistance.
This connector is designed to meet the demanding requirements of military, aerospace, and high-reliability industrial applications, supporting a steady current of 12A and voltage rating up to 120V. Its operating temperature ranges from -55°C up to 125°C, enabling performance in extreme temperature conditions.
The housing features polarization and shrouding to ensure protection of contacts and prevent incorrect mating during installation. The kit includes hexagonal slotted jackscrews for fastening and is compatible with 12 AWG cabling, making it suitable for robust board-to-board systems used in telecommunications, medical equipment, robotics, and industrial machinery.
Designed for high reliability in military, aerospace, and industrial use cases. Features a straight panel mount with a robust polyphenylene sulphide housing. Conducts 12A current with gold-plated brass female contacts for corrosion resistance.
Operates reliably between -55°C and 125°C temperature ranges for harsh environments. Provides polarization and shrouded contact protection to prevent mis-mating. Compatible with 12 AWG cable and includes hexagonal slotted jackscrews for secure connection.
Suitable for board-to-board connector systems in critical electronics assemblies.
Applications include aerospace, military, data and telecommunications, medical and handheld industrial equipment, robotics, and oil and gas sectors requiring rugged and dependable connections.
Find more PCB Sockets and connectors from HARWIN and enhance your industrial electronics solutions with reliable connectors specifically designed for extreme conditions and demanding technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can conduct a maximum current of 12A.
The voltage rating for this socket is 120V.
It operates reliably between -55°C and 125°C.
This unit features a straight panel mount design.
The housing is made from polyphenylene sulphide, and the contacts are gold-plated brass.
It has 6 female contacts arranged in a single row.
The pitch size for this connector is 4 mm.
It is compatible with 12 AWG cable.
Yes, it features polarization and shrouded contact protection to prevent mis-mating.
It is suitable for applications in aerospace, military, telecommunications, medical equipment, robotics, and industrial machinery.
This connector uses a crimp termination type.
The country of origin for this model is the United Kingdom.
